License Plate Bracket: Service and Repair

License Plate Housing - Wagon

REMOVAL
1. Remove the liftgate trim panel.

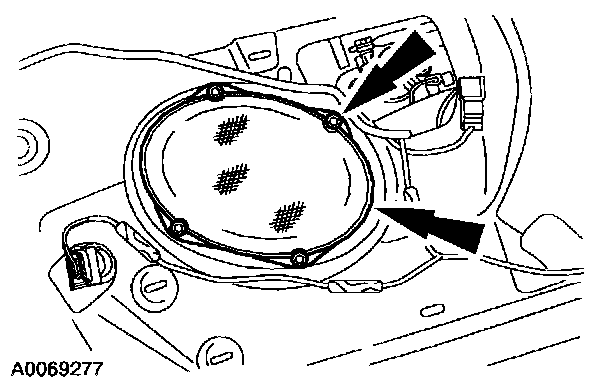

2. Remove the eight screws and the LH and RH speakers.
- Disconnect the electrical connectors.

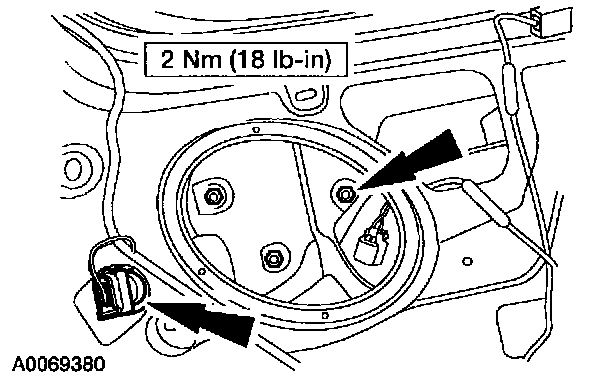

3. Remove the reverse lamp assembly.
- Disconnect the LH and RH electrical connectors.
- Remove the eleven nuts.

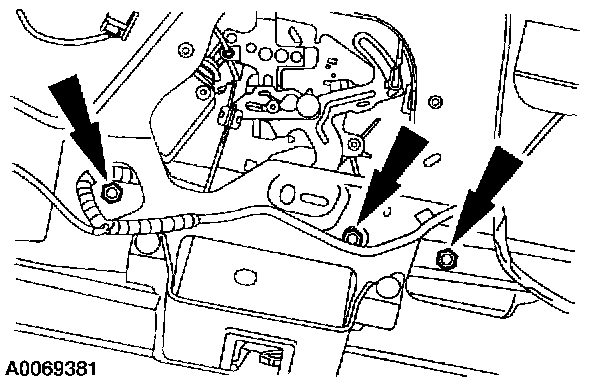

4. Remove the three nuts and position the license plate housing aside.

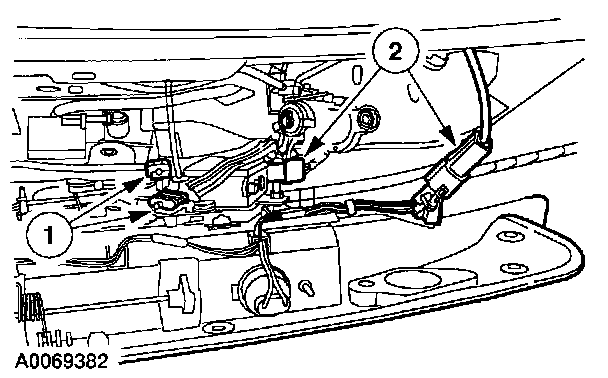

5. Remove the license plate housing.
- Disconnect the activating rods.
- Disconnect the electrical connectors and remove the license plate housing.

INSTALLATION
1. To install, reverse the removal procedure.
