Rear Door Panel: Service and Repair

REAR DOOR TRIM PANEL

REMOVAL

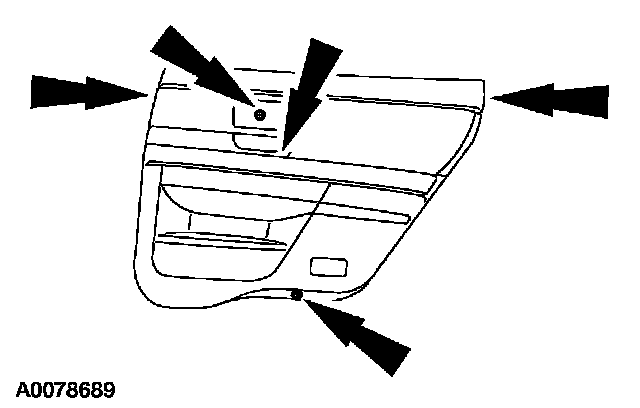

1. Remove the five rear door trim panel screws.

2. NOTE: To release the door trim panel two part pin-type retainers, first pull outward on the bottom of the door trim panel.

Remove the rear door trim panel.
- Disconnect the window regulator control switch electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
