FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test K
Test K
PINPOINT TEST K: NO SOUND FROM ONE OR MORE SPEAKERS (NOT ALL SPEAKERS)

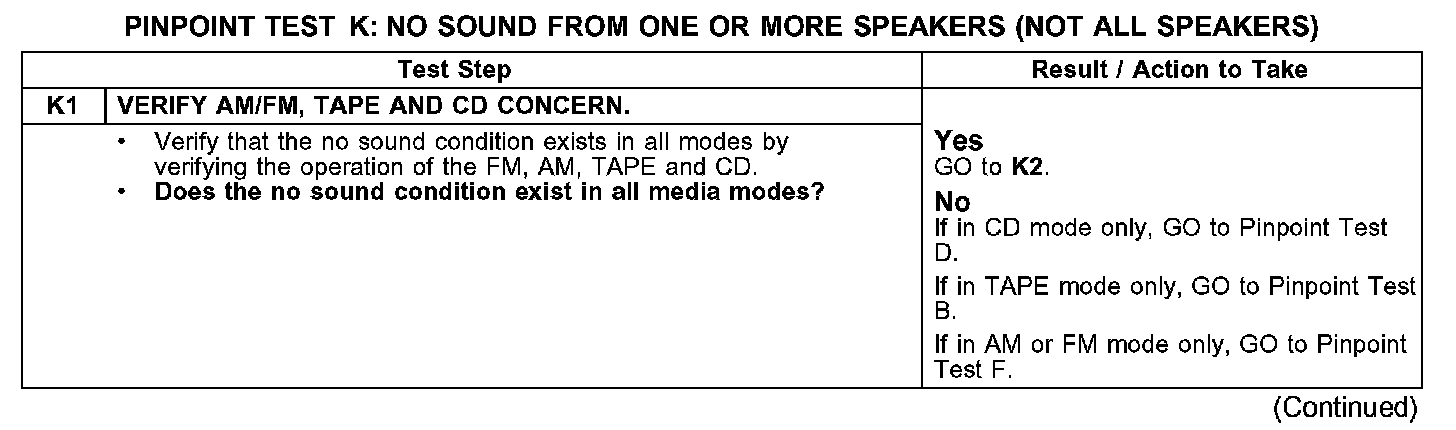

Test K1:

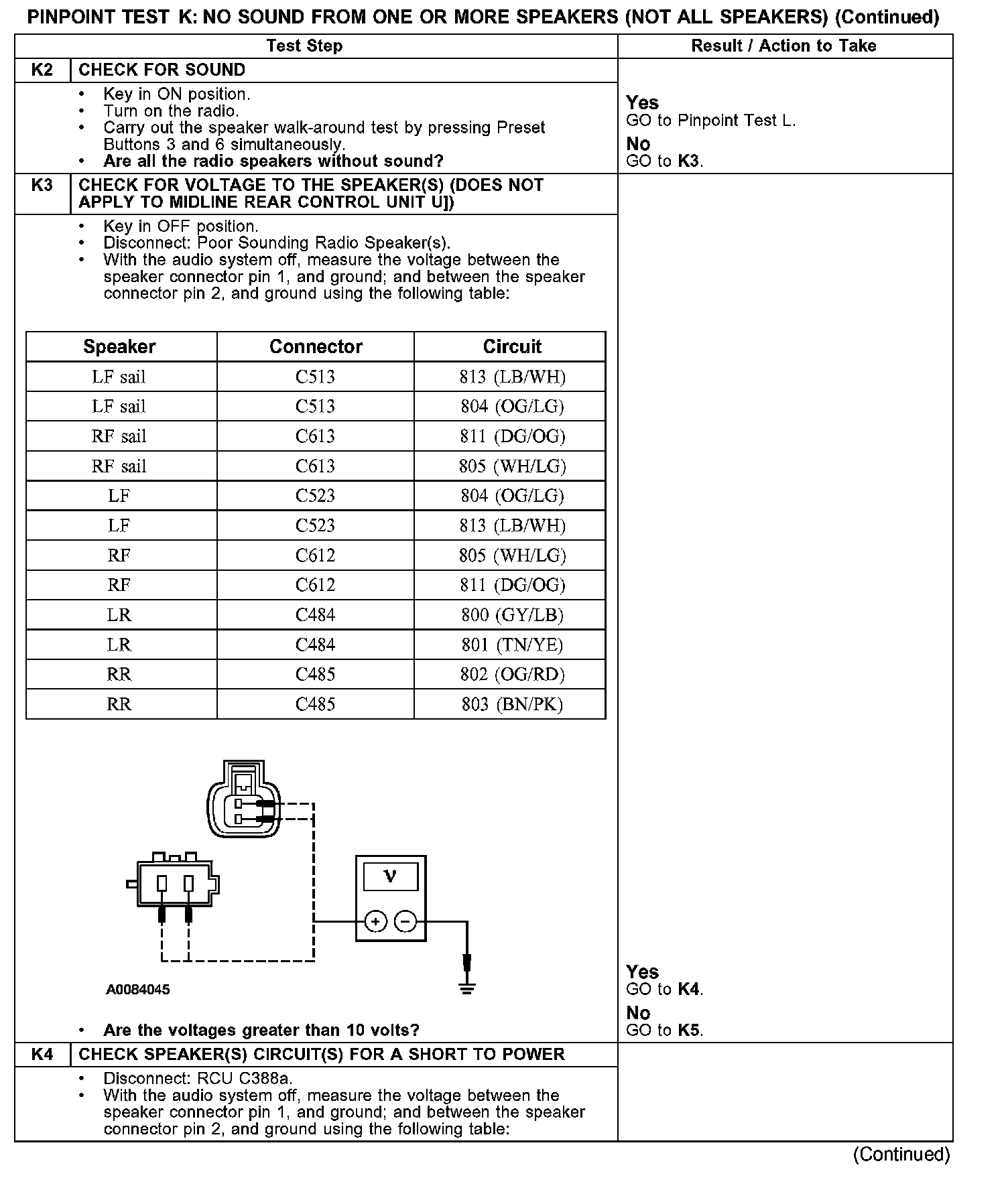

Test K2-K4:
Test K4-K5:

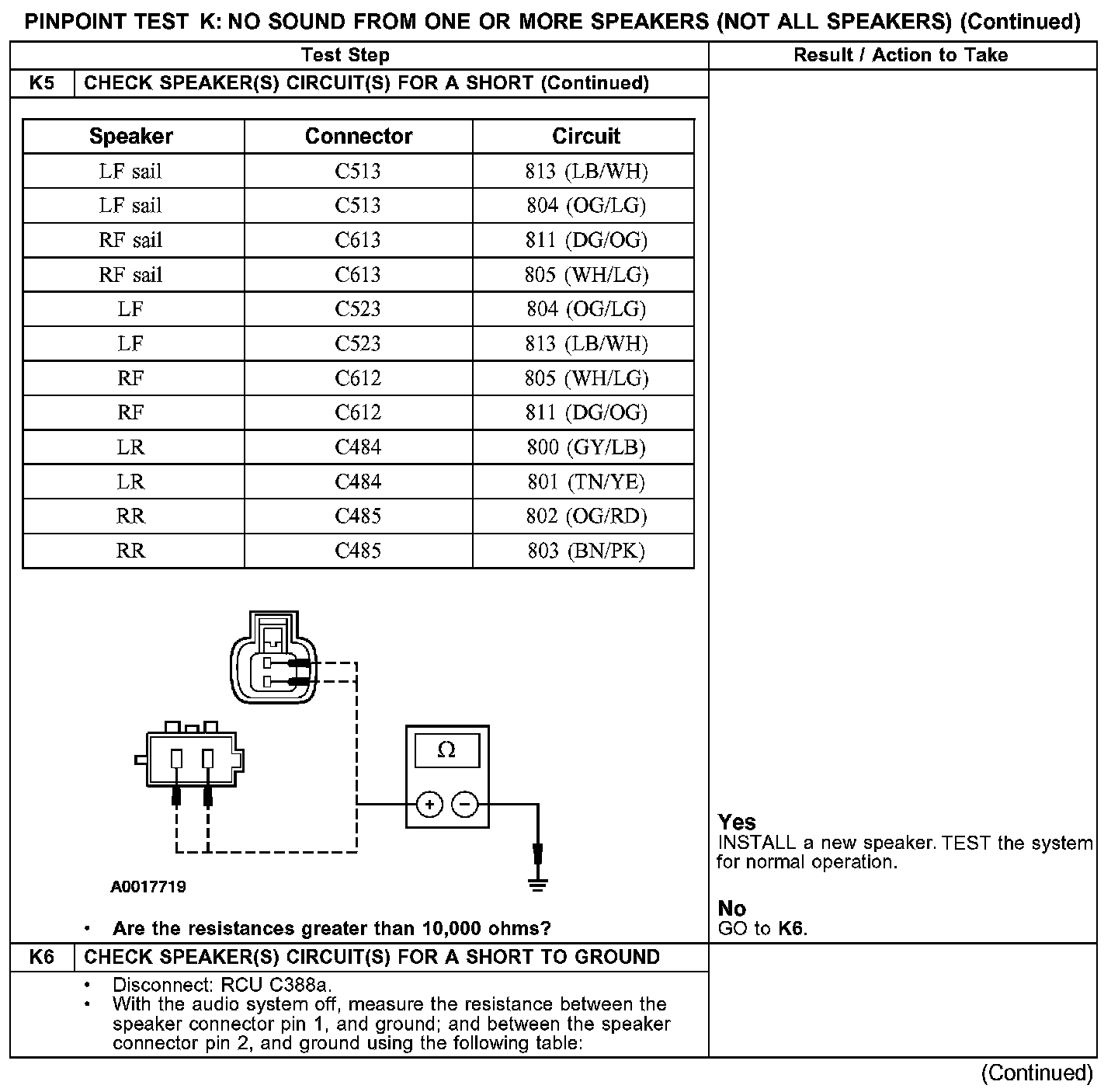

Test K5-K6:

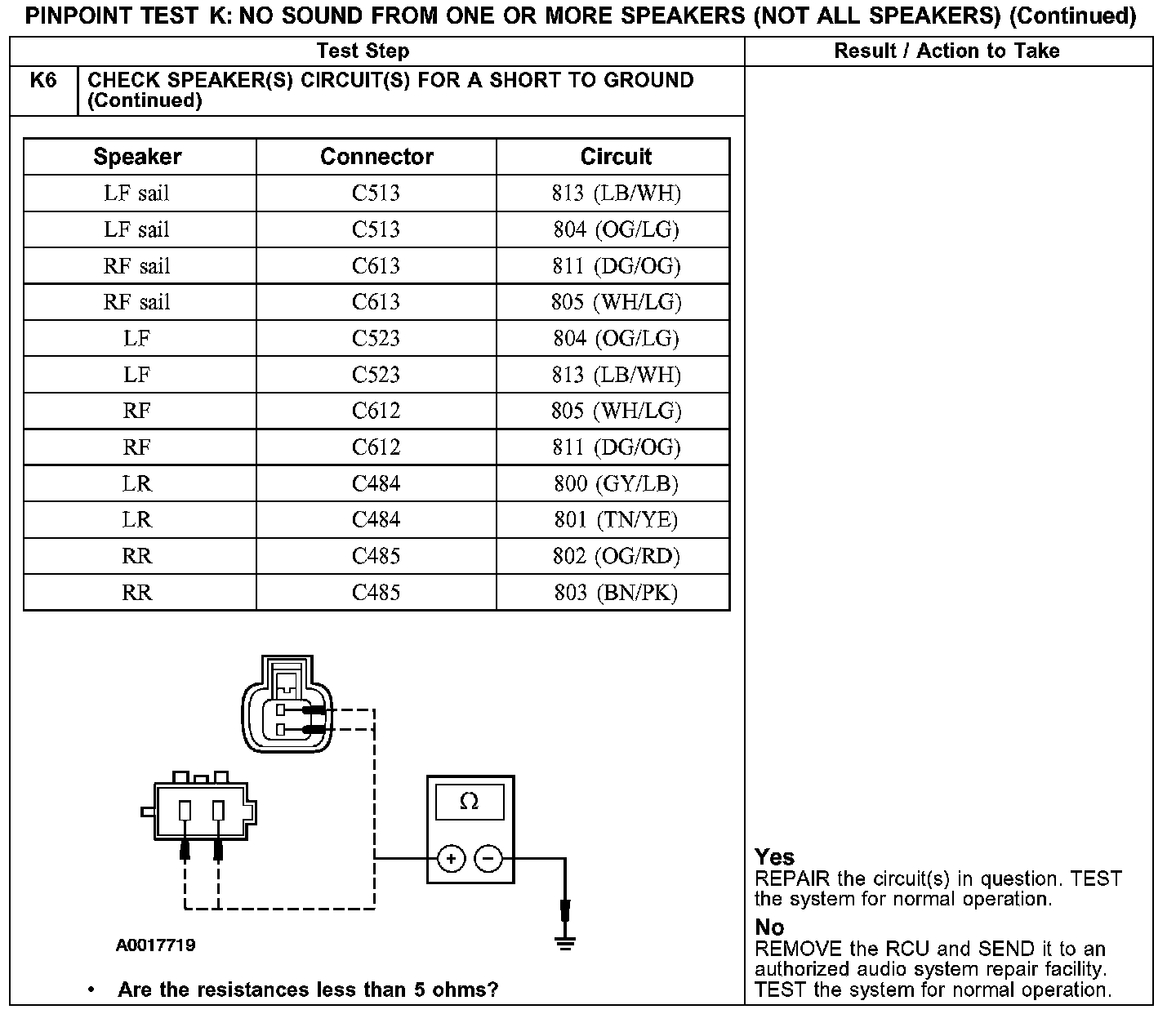

Test K6 Continued:
