Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test F

Test F

PINPOINT TEST F: POOR RECEPTION

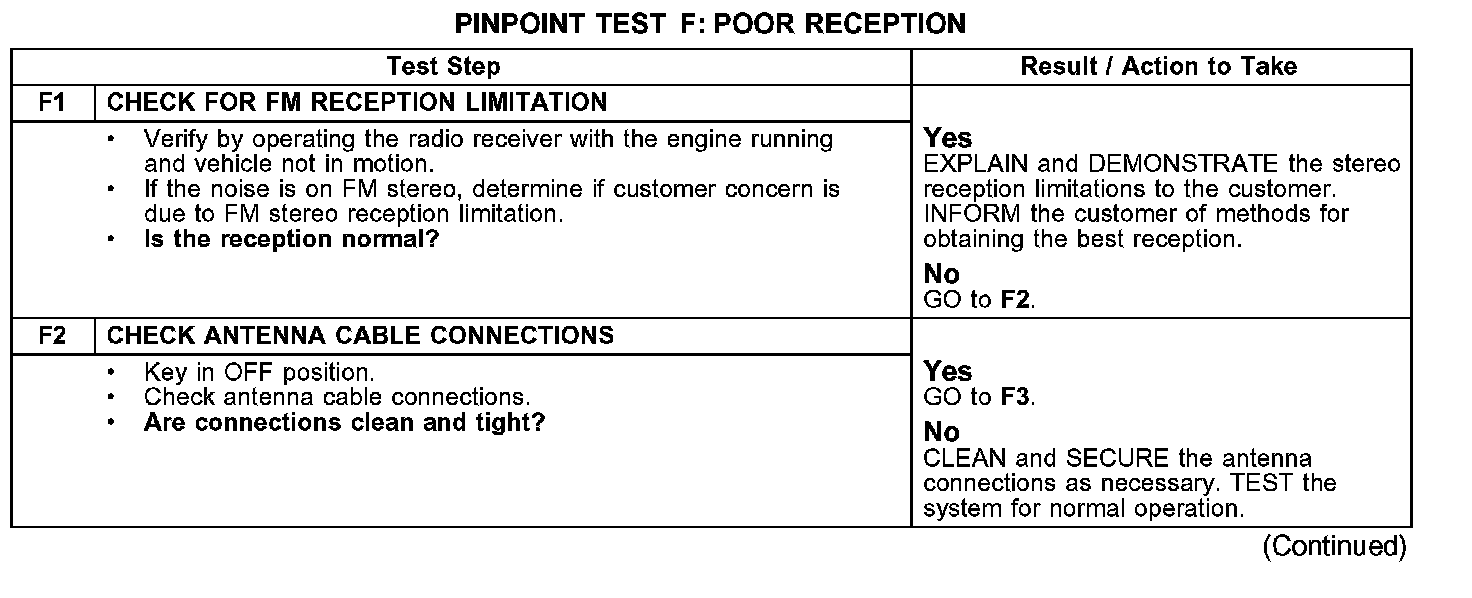

Test F1-F2:

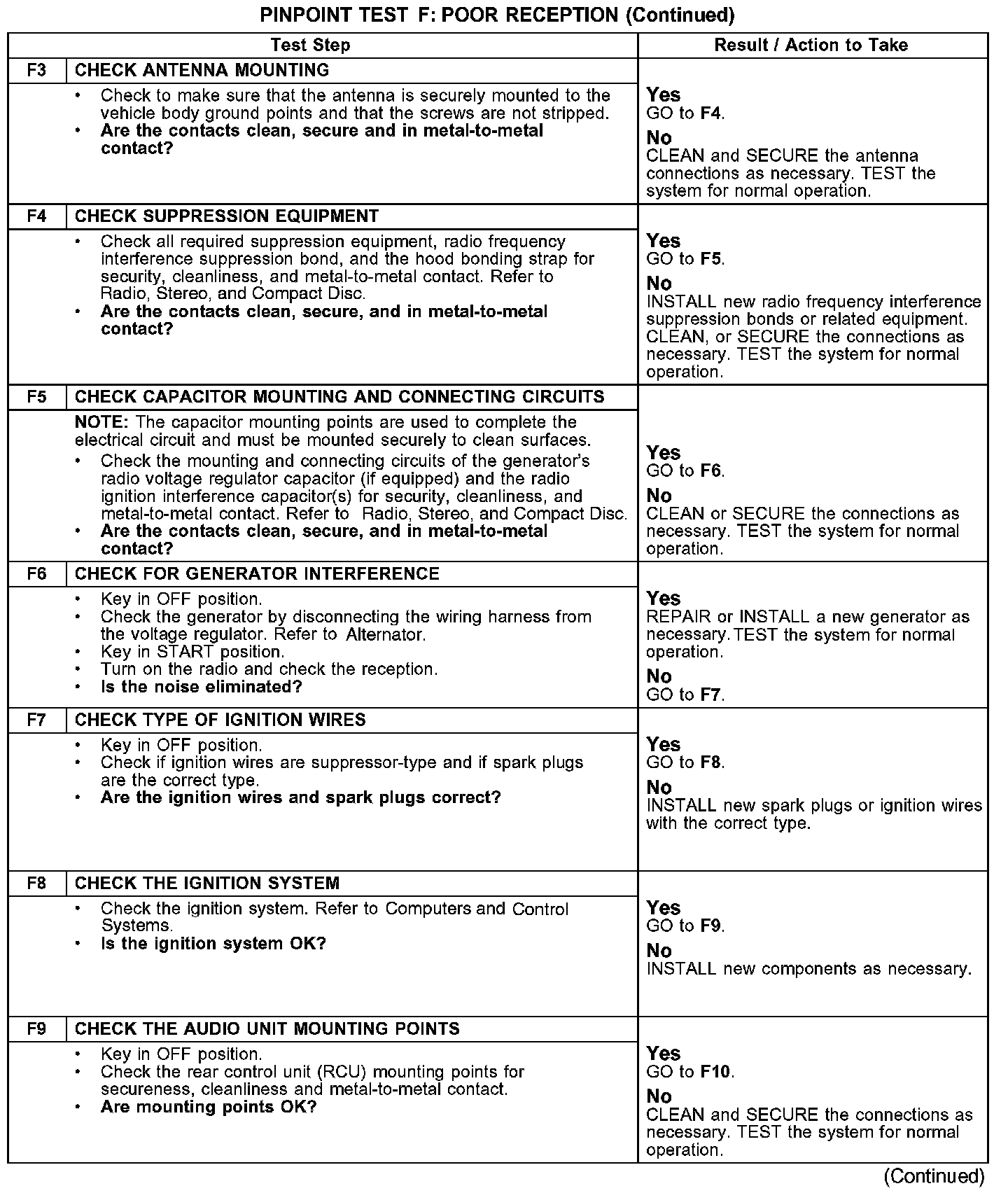

Test F3-F9:

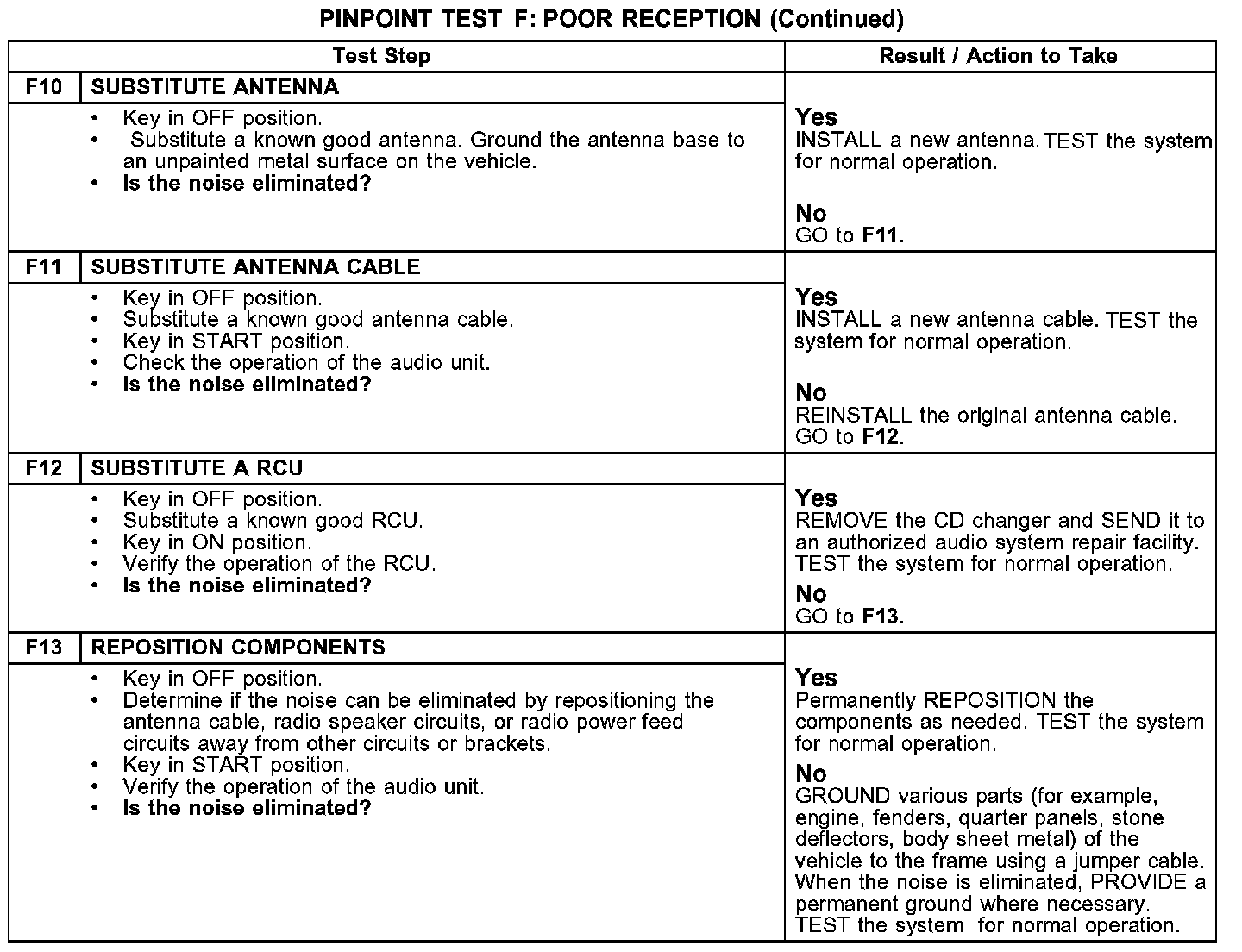

Test F10-F13:
