Audio Unit - Four Door

AUDIO UNIT - FOUR DOOR

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the LH luggage compartment trim panel.
3. Disconnect the wiring connectors and the antenna lead in cable from the audio unit.

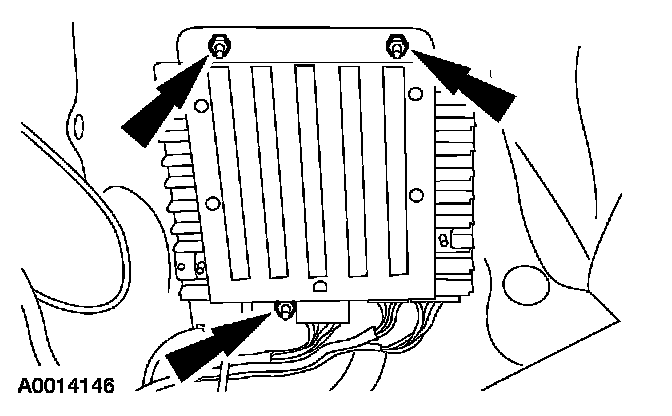

4. Remove the retaining nuts and remove the audio unit.

INSTALLATION
1. To install, reverse the removal procedure.
