Pedal Positioning Motor: Service and Repair

Brake Pedal Motor

Removal and Installation

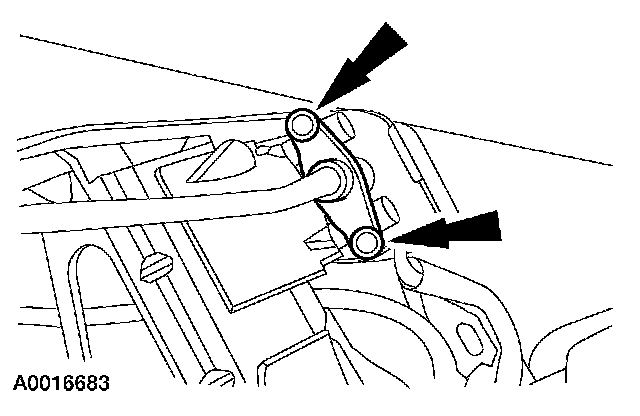

1. Remove the screws and disconnect the brake pedal cable from the motor.





2. Disconnect the cable from the accelerator cable adjuster.





3. Remove the screws and the motor.
4. To install, reverse the removal procedure.
