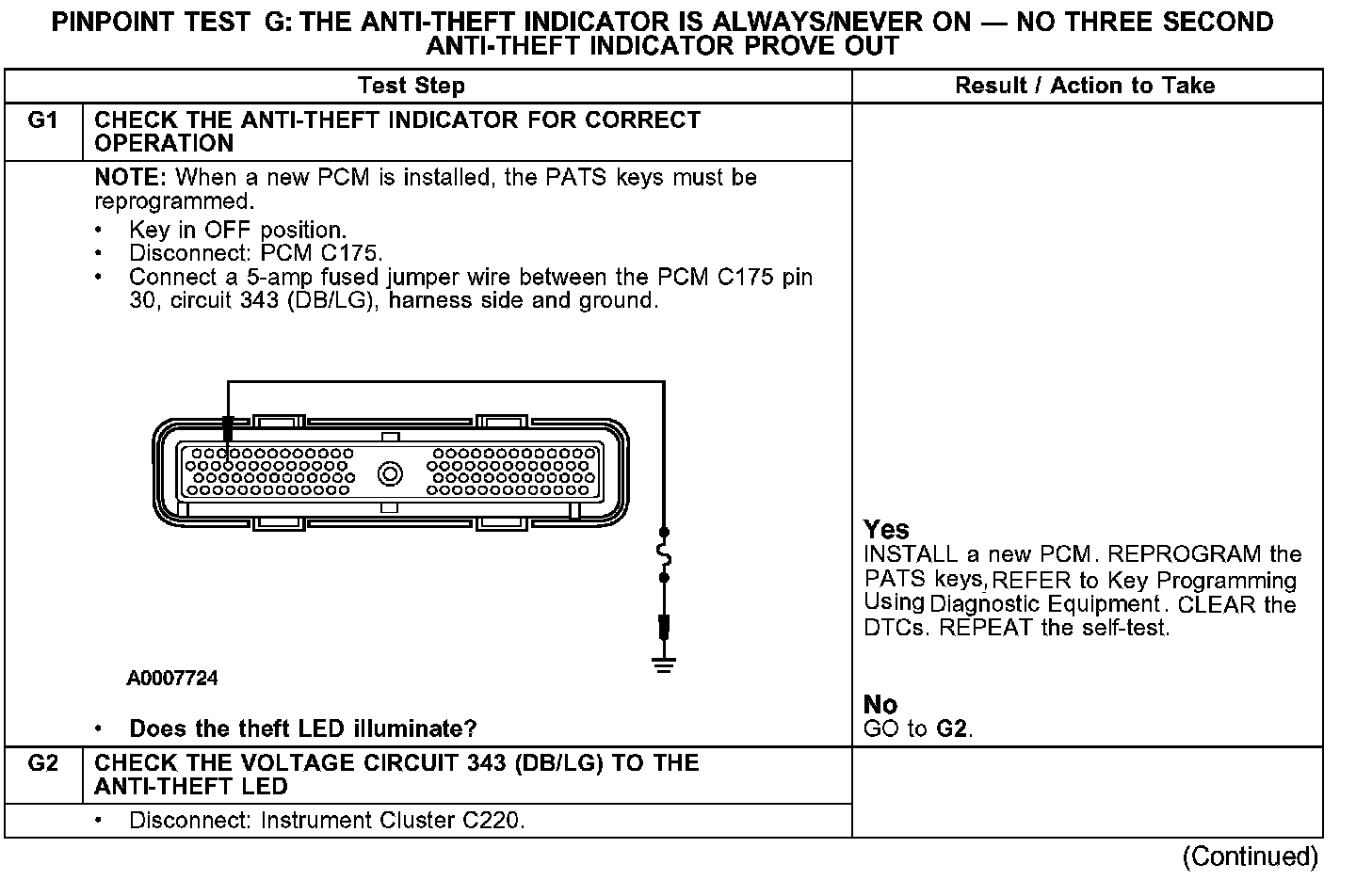

PINPOINT TEST G: THE ANTI-THEFT INDICATOR IS ALWAYS/NEVER ON NO THREE SECOND ANTI-THEFT INDICATOR PROVE OUT
Test G1-G2:

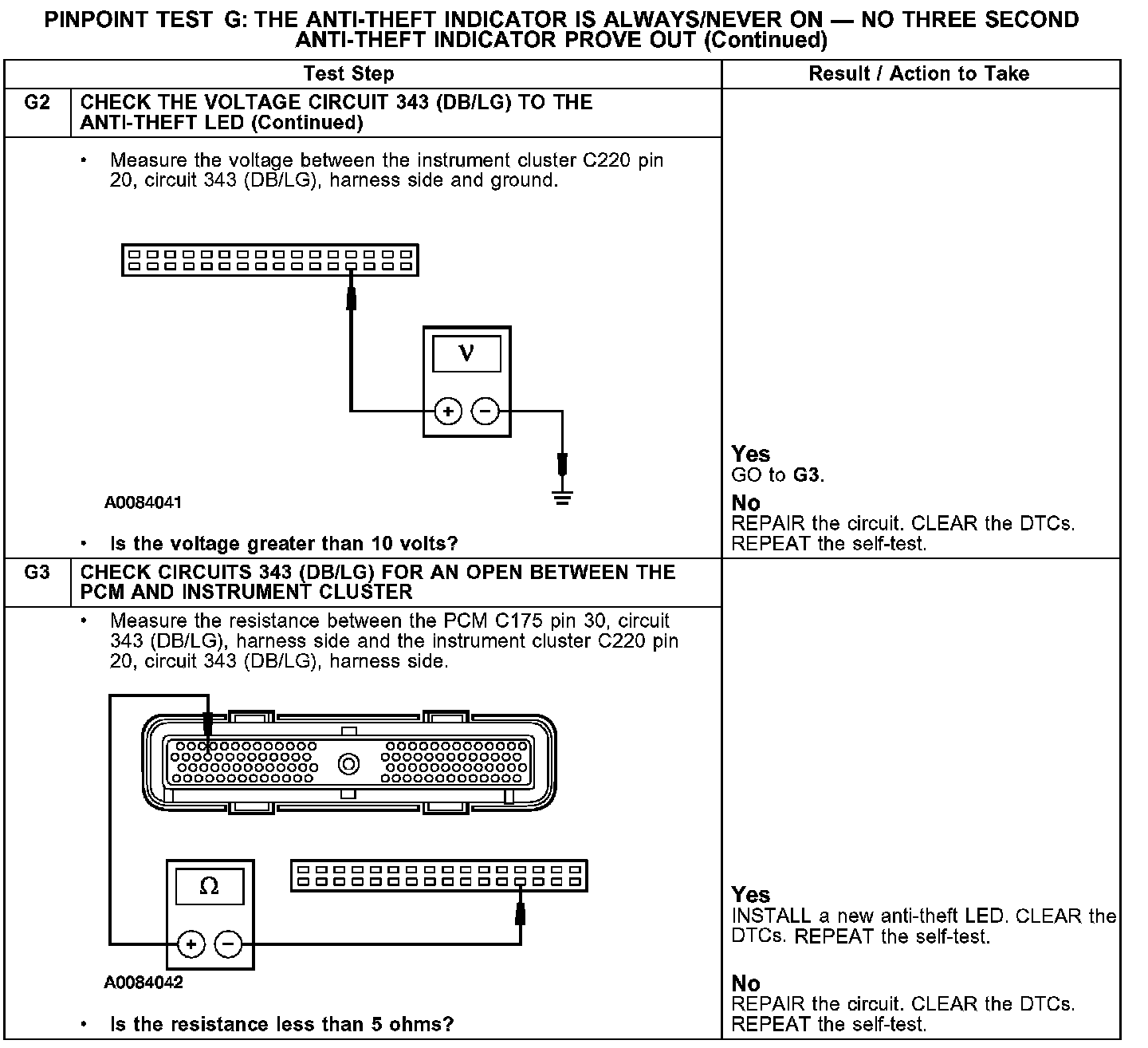

Test G2-G3:
