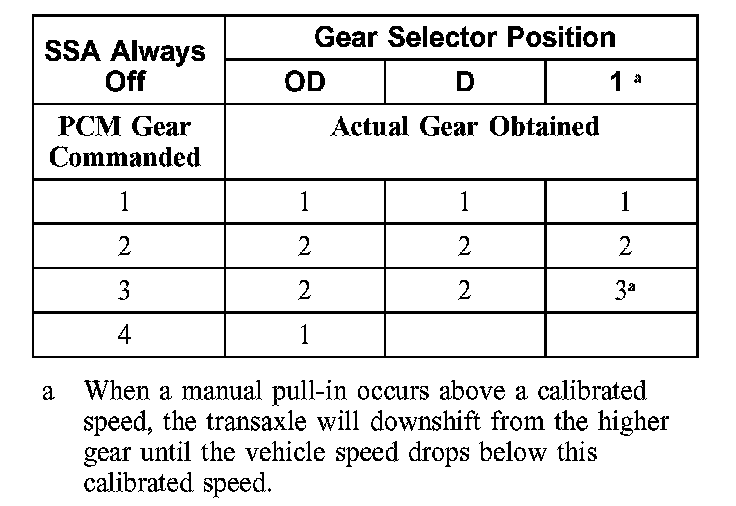

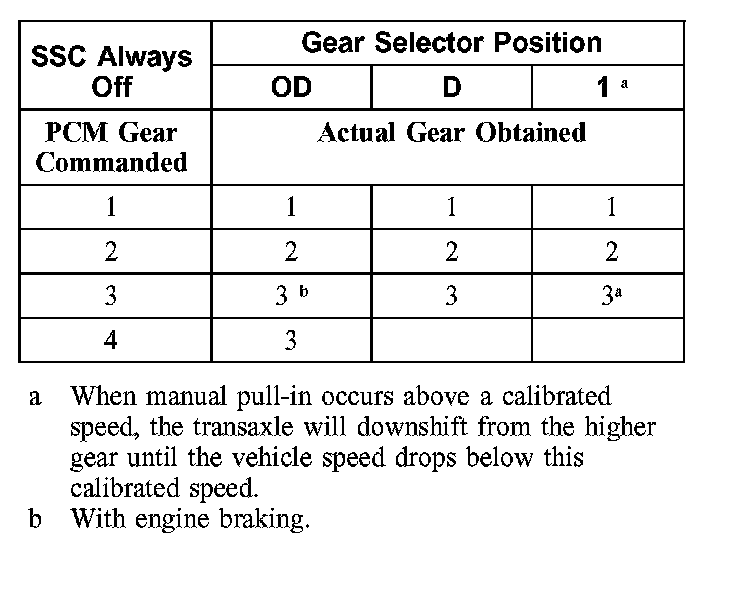

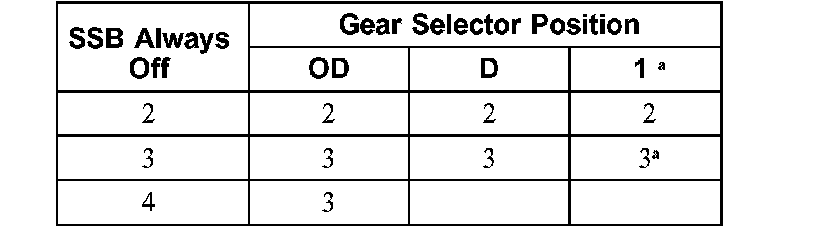

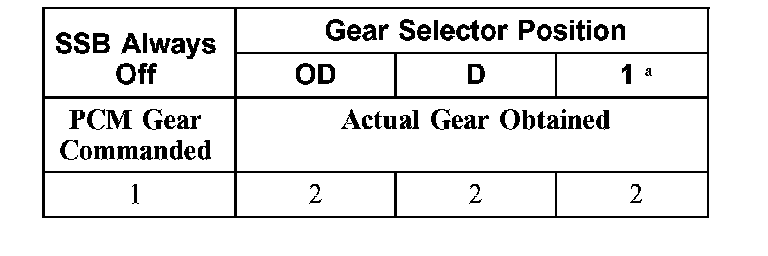

Shift Solenoid Failure Mode Chart "Always Off"

Shift Solenoid Failure Mode Chart "Always off"

Failed OFF due to powertrain control module and/or vehicle wiring concerns, and/or solenoid electrically stuck off and/or hydraulically stuck off.








a When a manual pull-in occurs above a calibrated speed, the transaxle will downshift from the higher gear until the vehicle speed drops below this calibrated speed.





a When a manual pull-in occurs above a calibrated speed, the transaxle will downshift from the higher gear until the vehicle speed drops below this calibrated speed.
