Home >> Mercury >> 2004 >> Sable V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests FB: Power Take Off

Tests FB: Power Take Off



PINPOINT TEST FB: POWER TAKE OFF

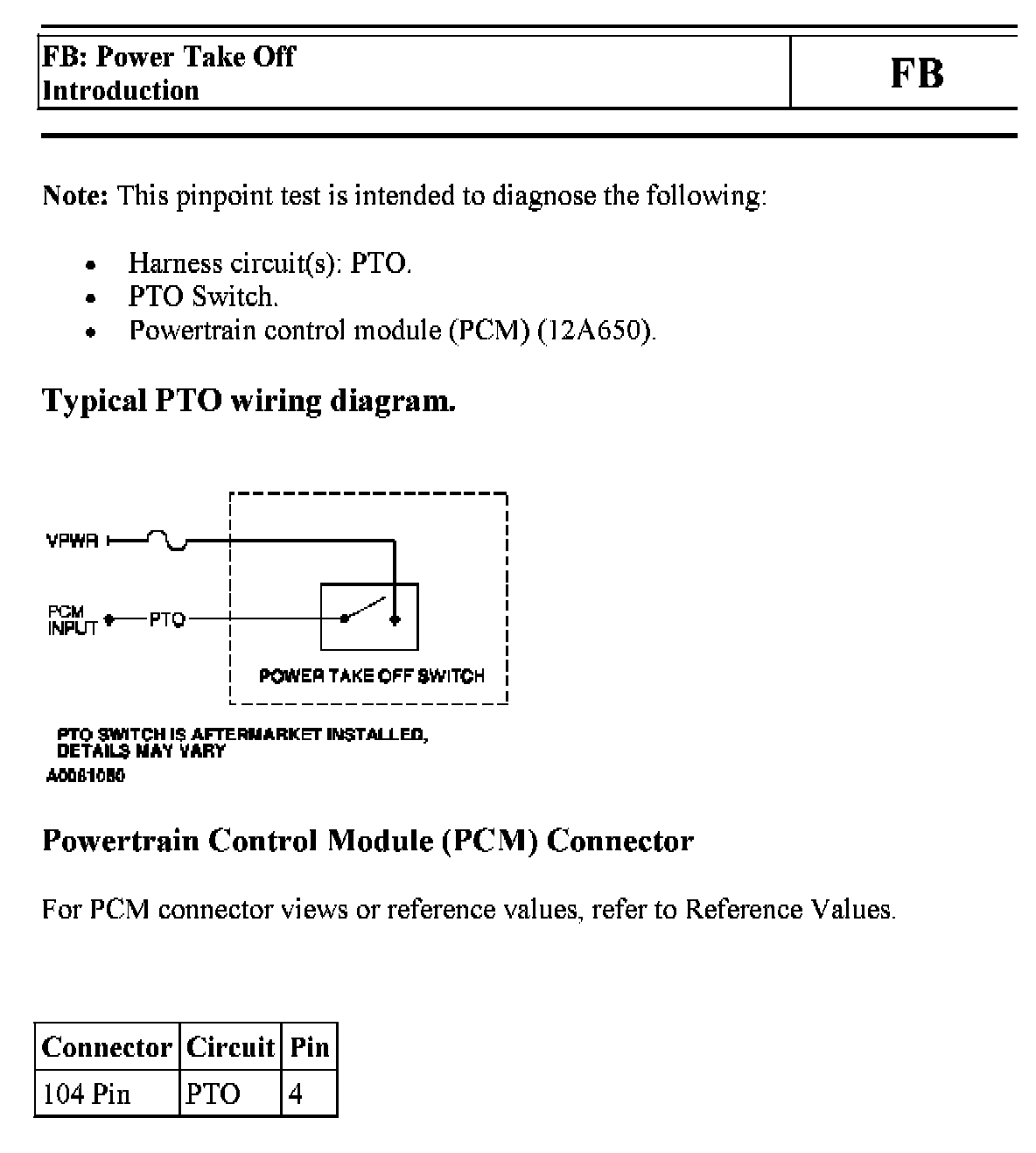

FB Introduction:

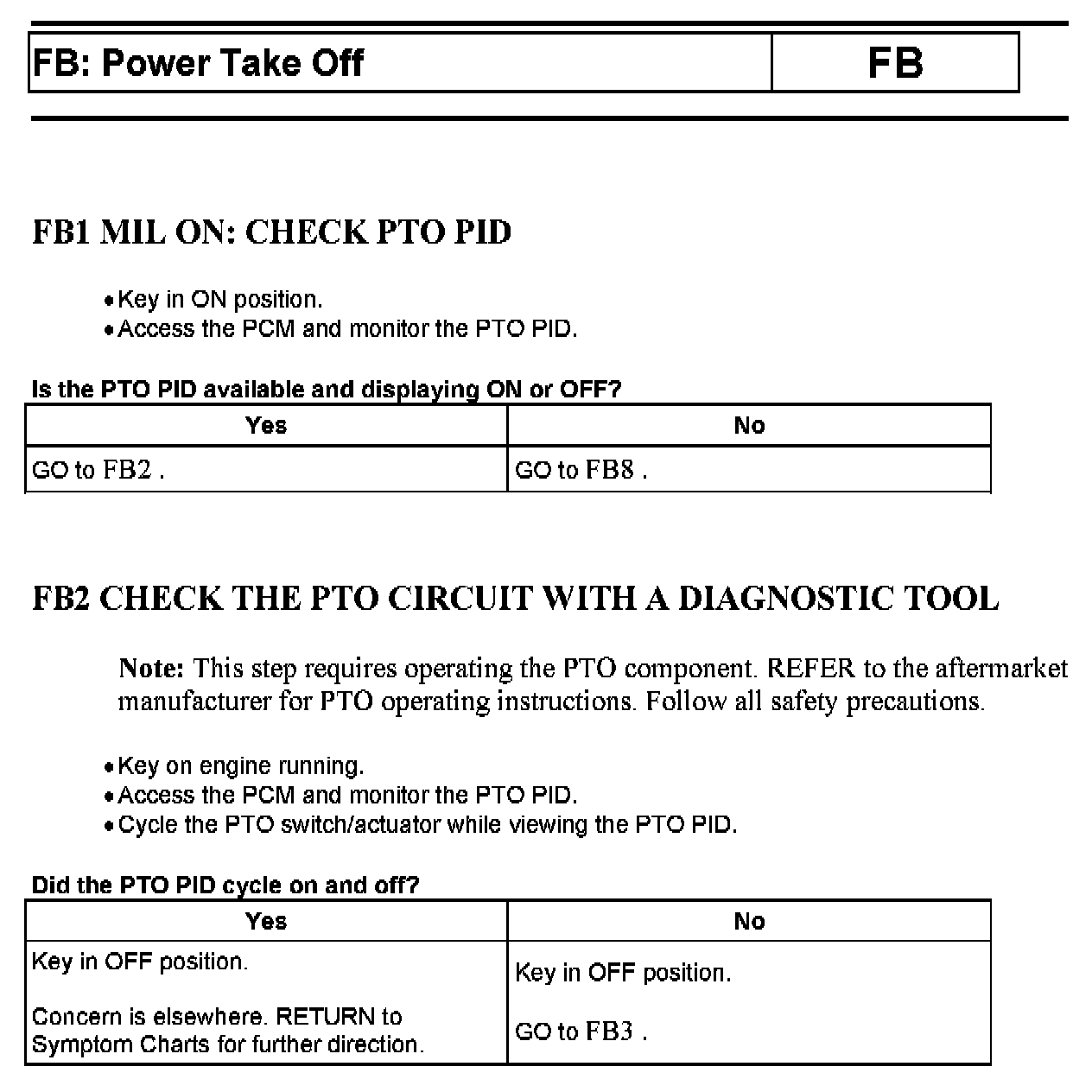

FB1 - FB2:

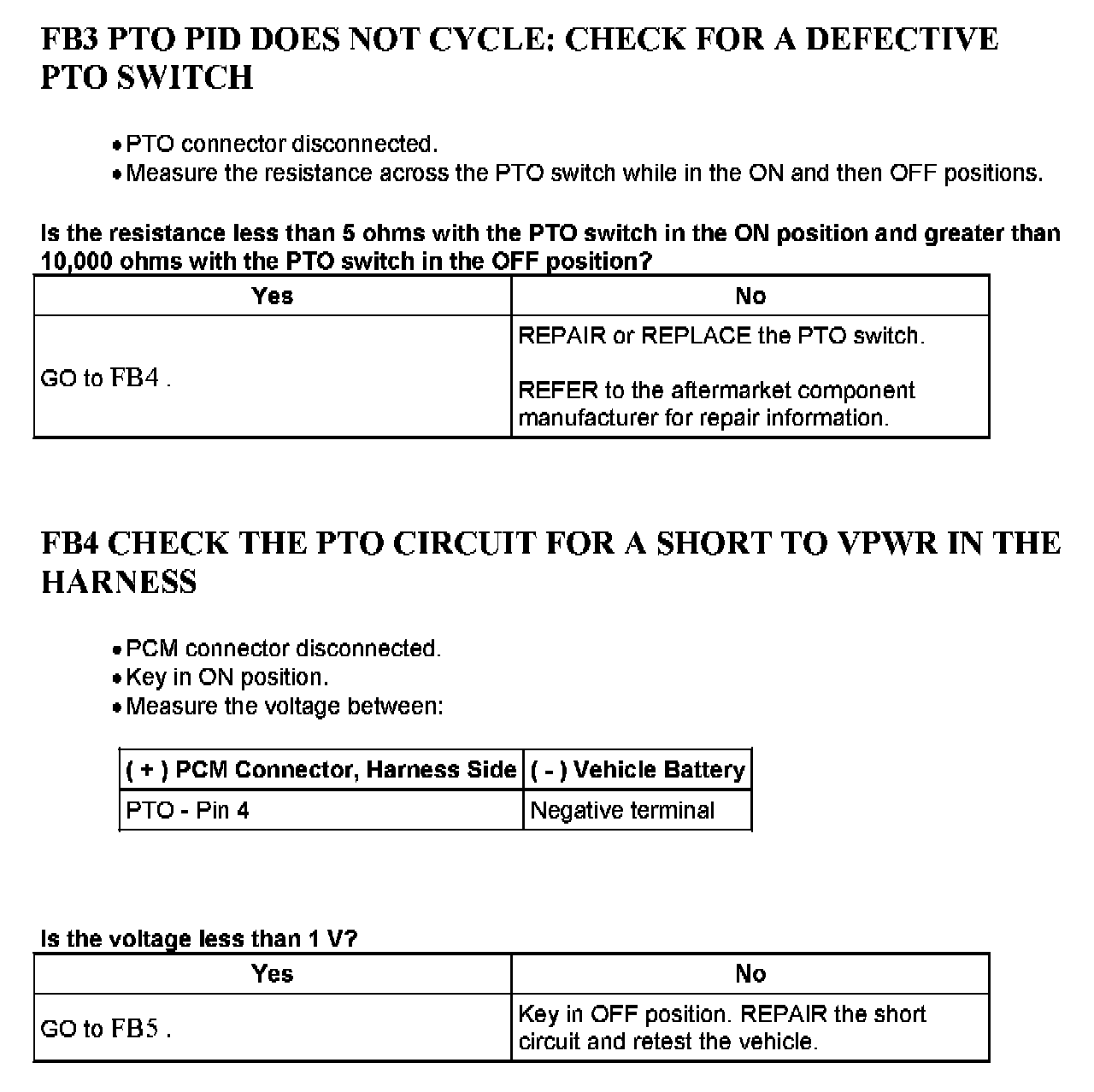

FB3 - FB4:

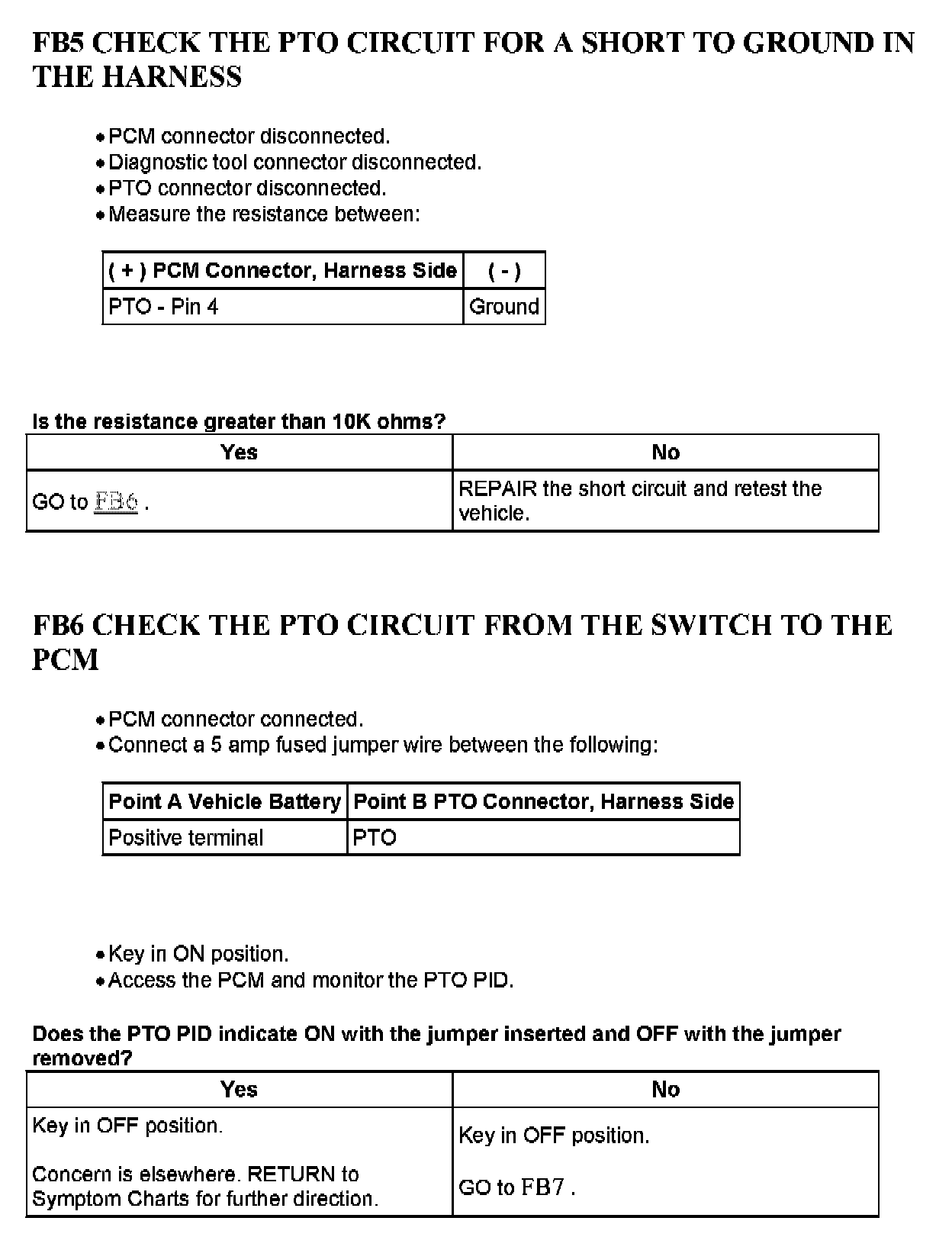

FB5 - FB6:

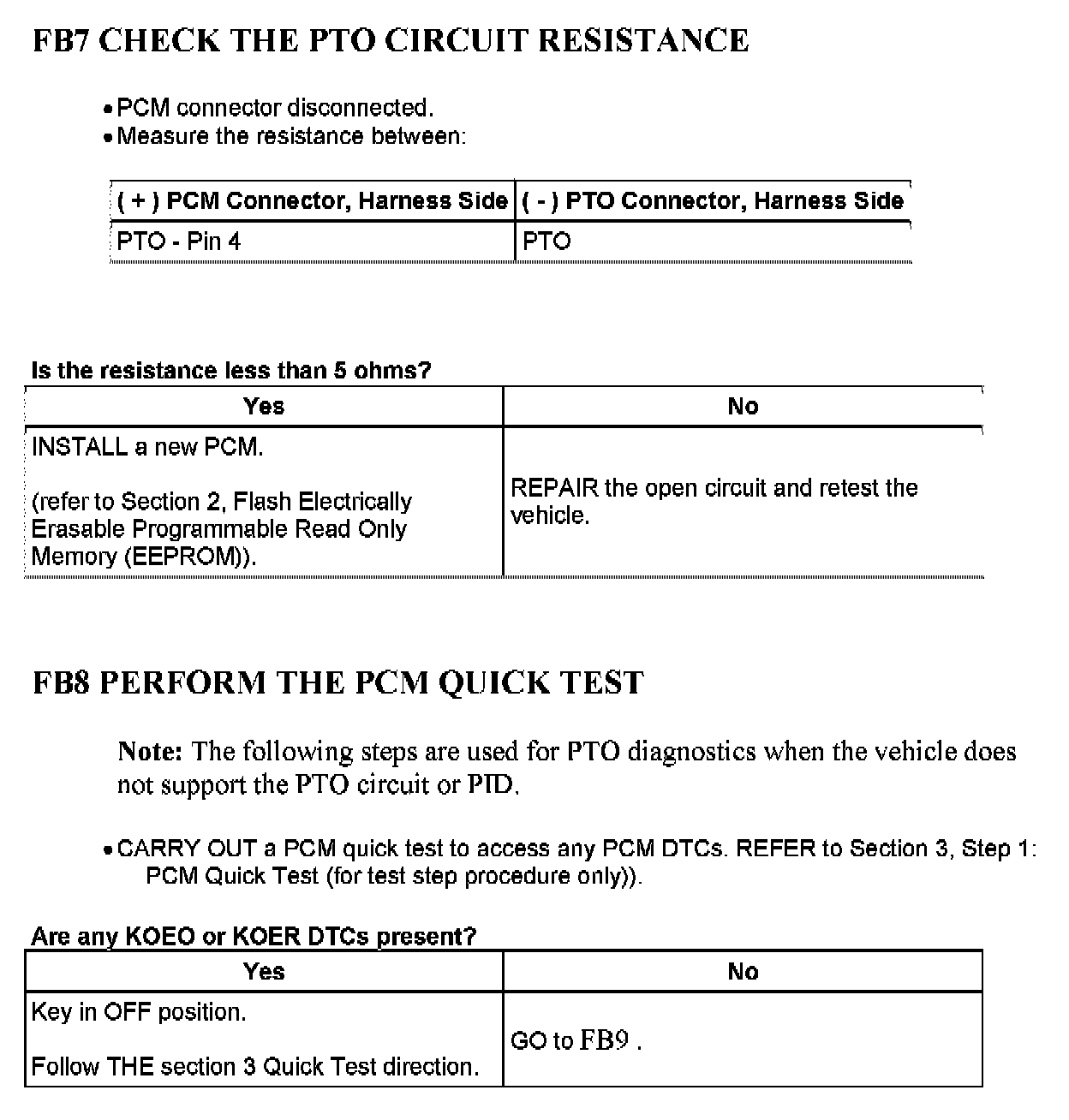

FB7 - FB8:

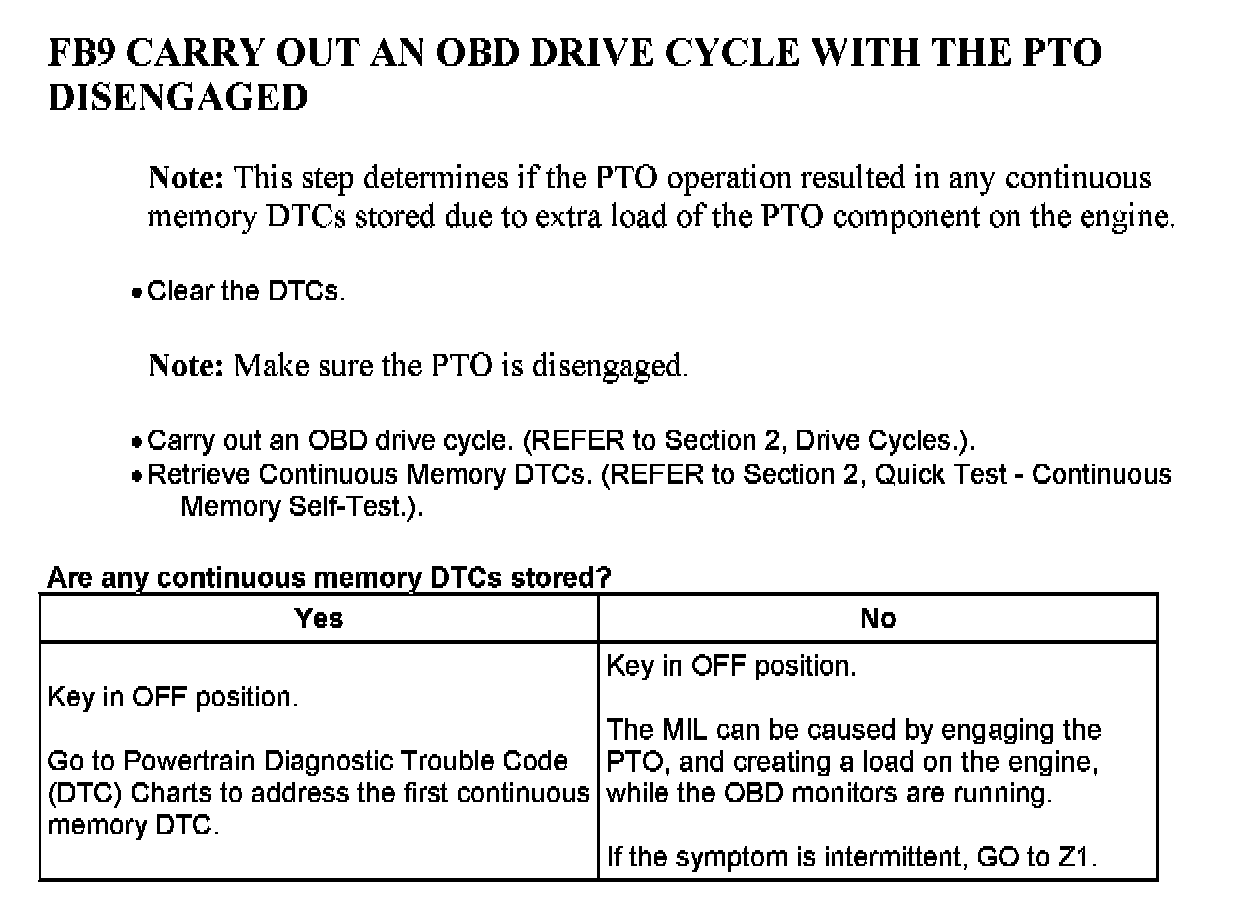

FB9:
