Tests DM: MAP And Thermal MAP Sensors
PINPOINT TEST DM: MANIFOLD ABSOLUTE PRESSURE (MAP) AND THERMAL MANIFOLD ABSOLUTE PRESSURE (TMAP) SENSOR

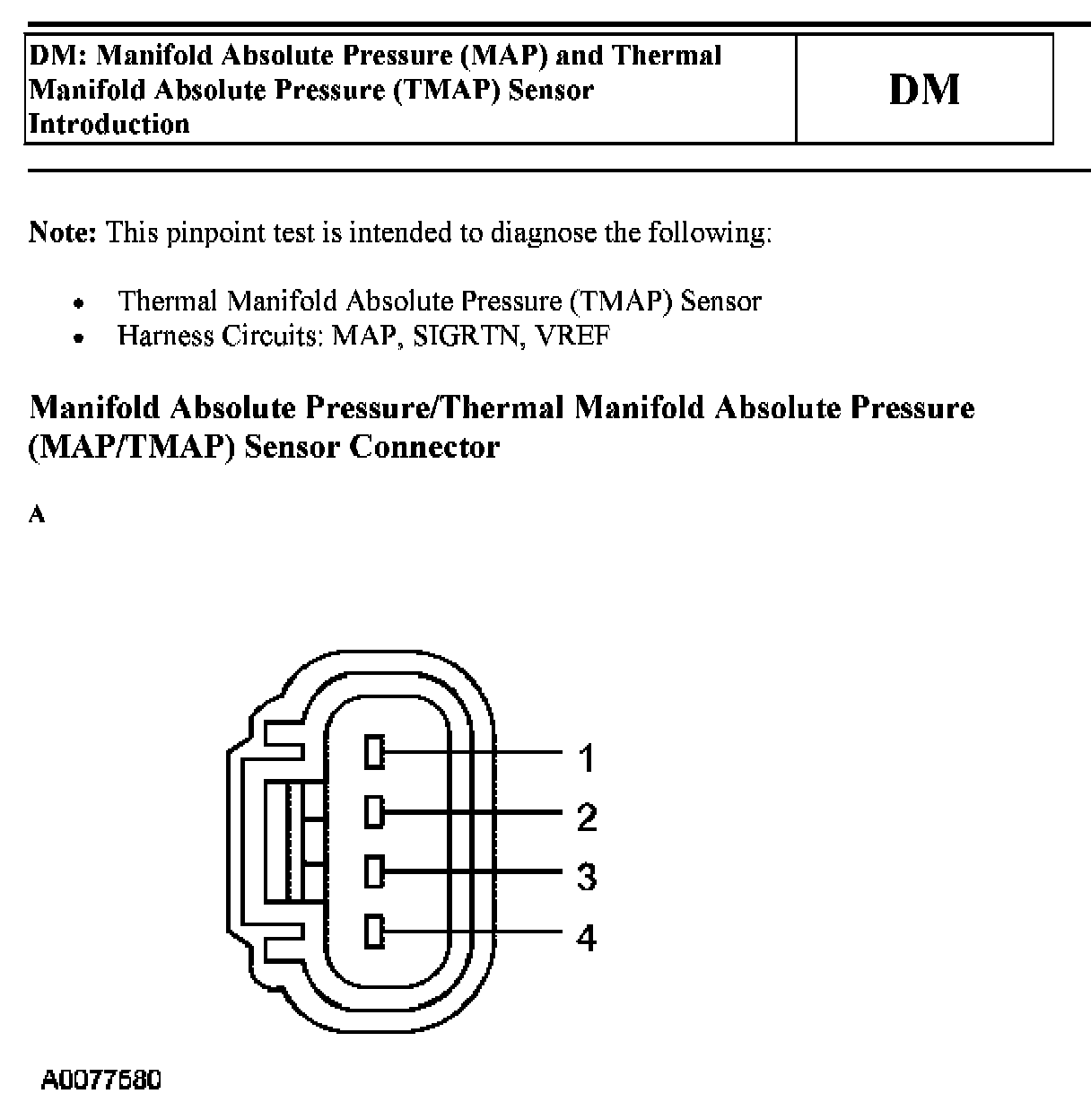

DM Introduction 1 Of 4:
DM Introduction 2 Of 4:
DM Introduction 3 Of 4:

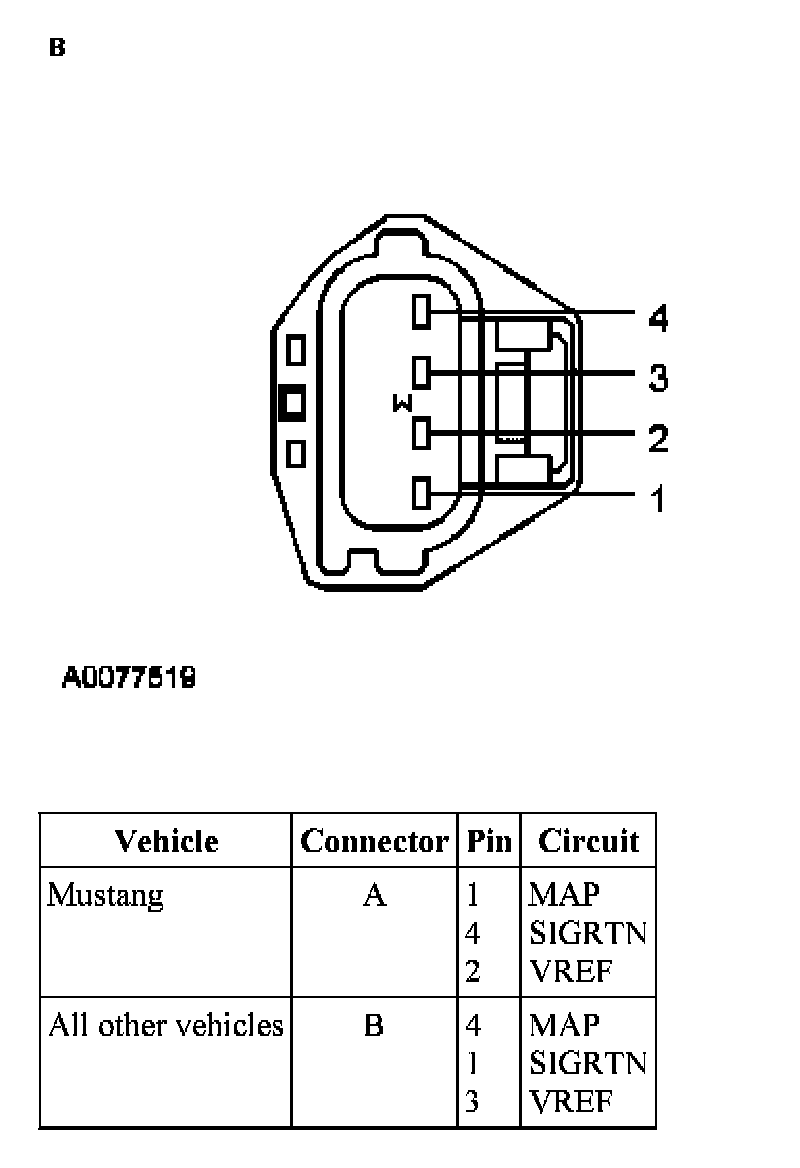

DM Introduction 4 Of 4:

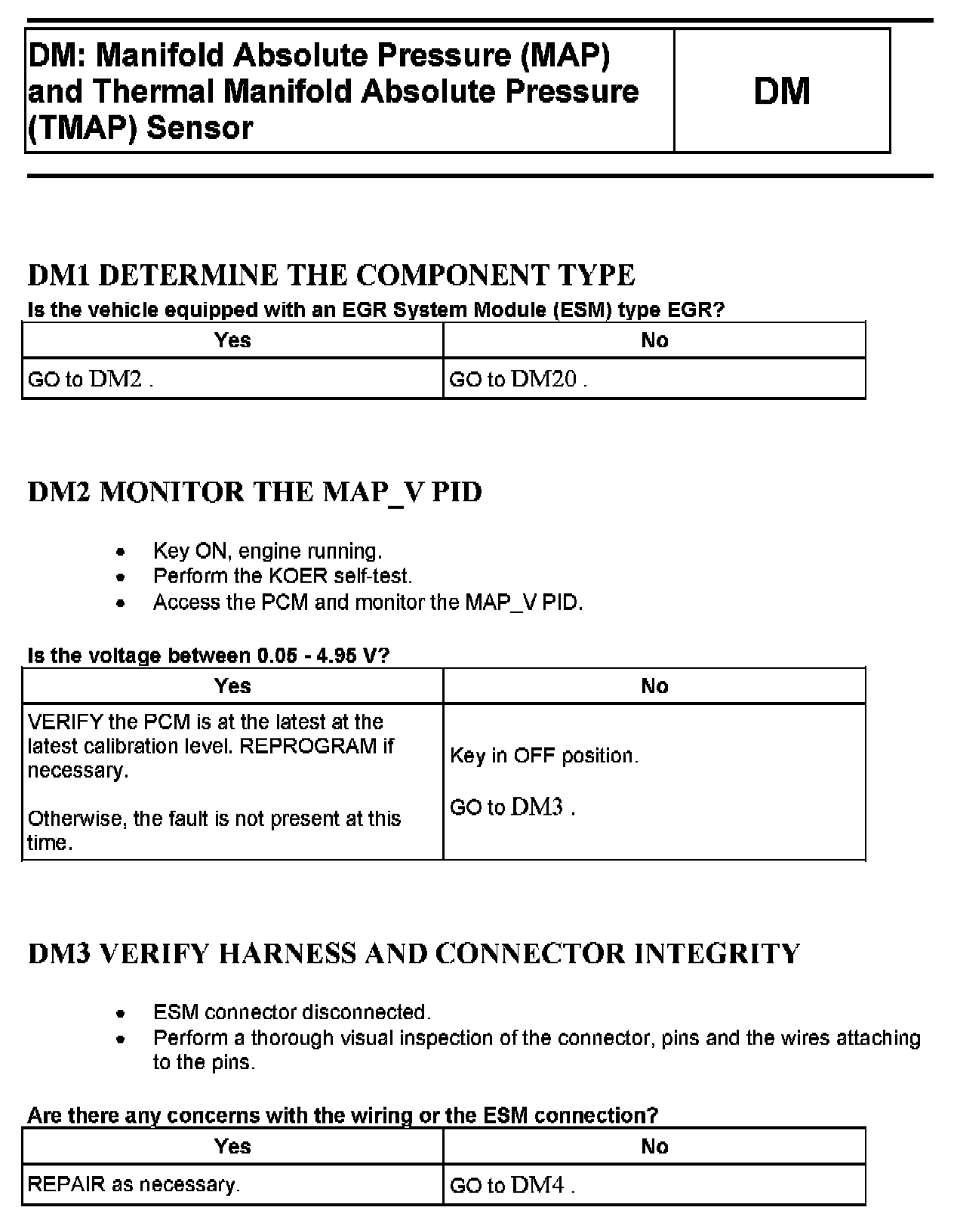

DM1 - DM3:

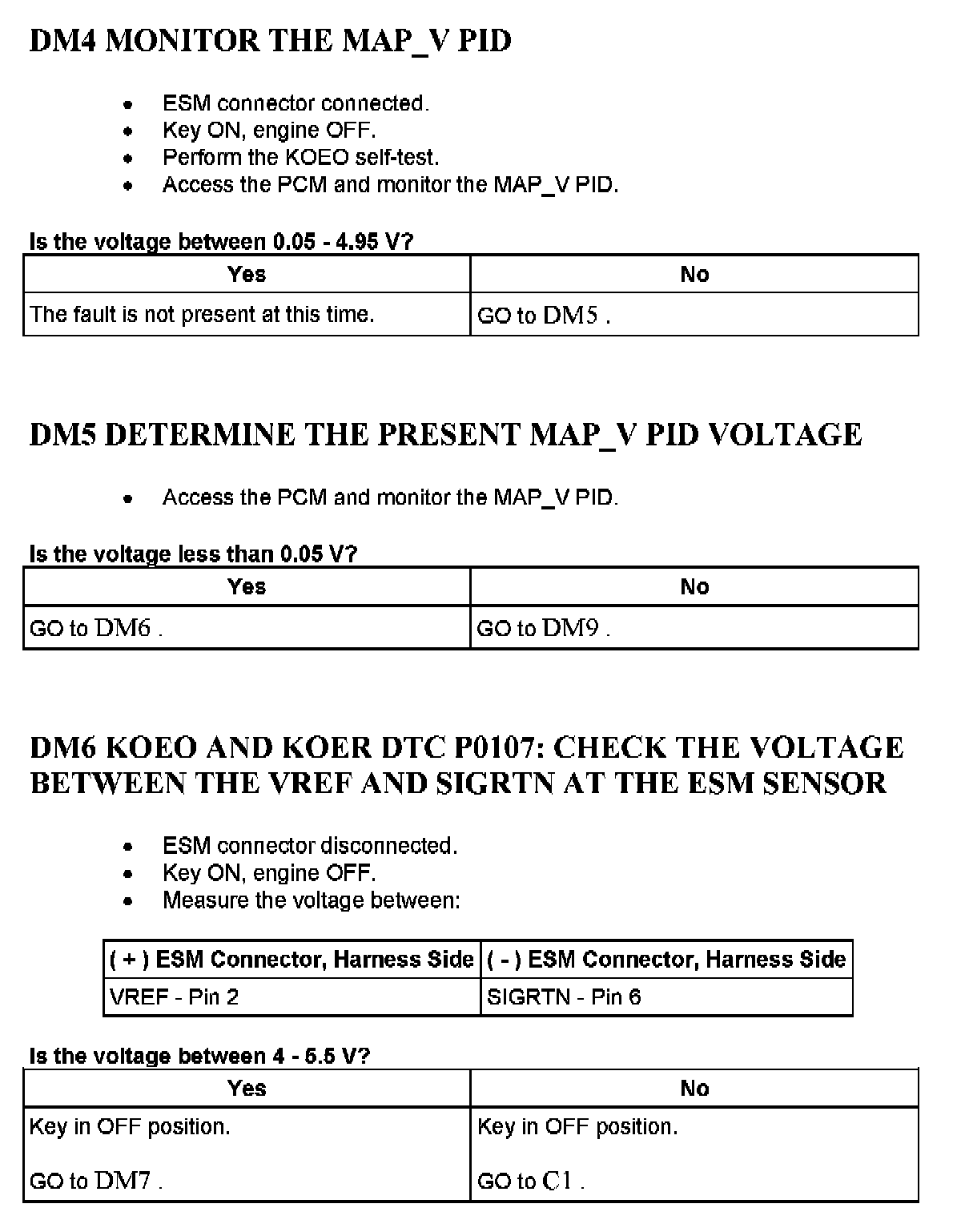

DM4 - DM6:

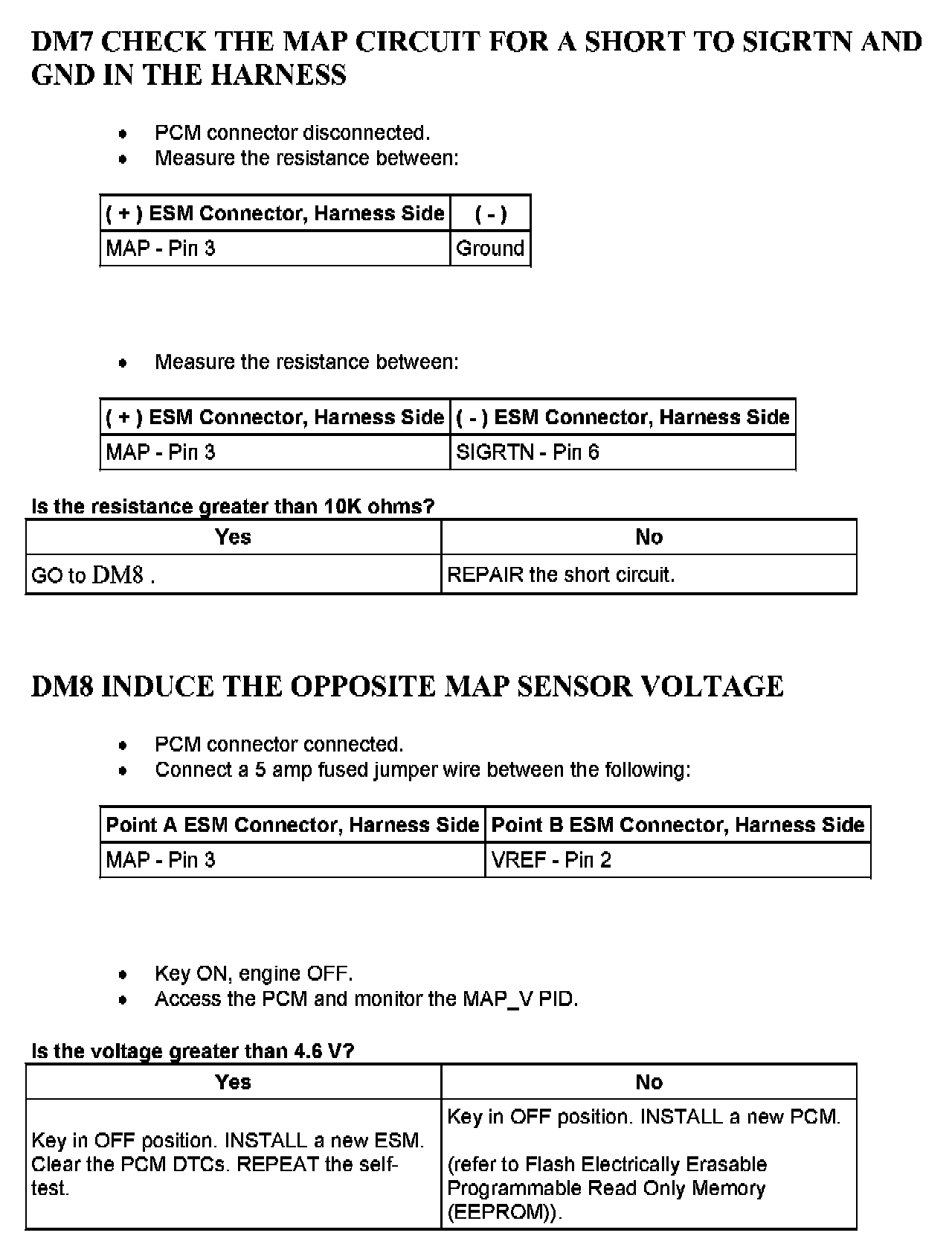

DM7 - DM8:

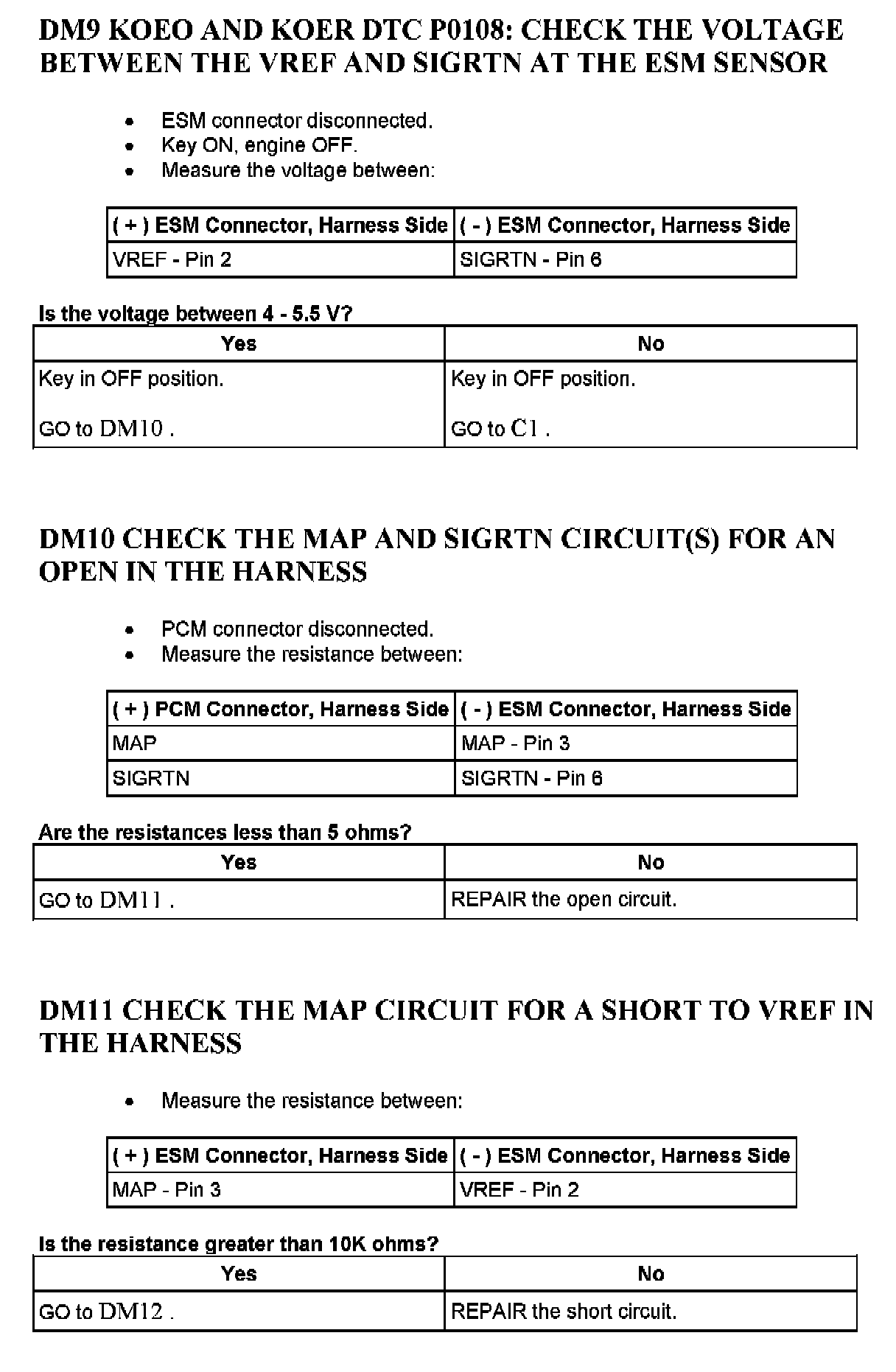

DM9 - DM11:

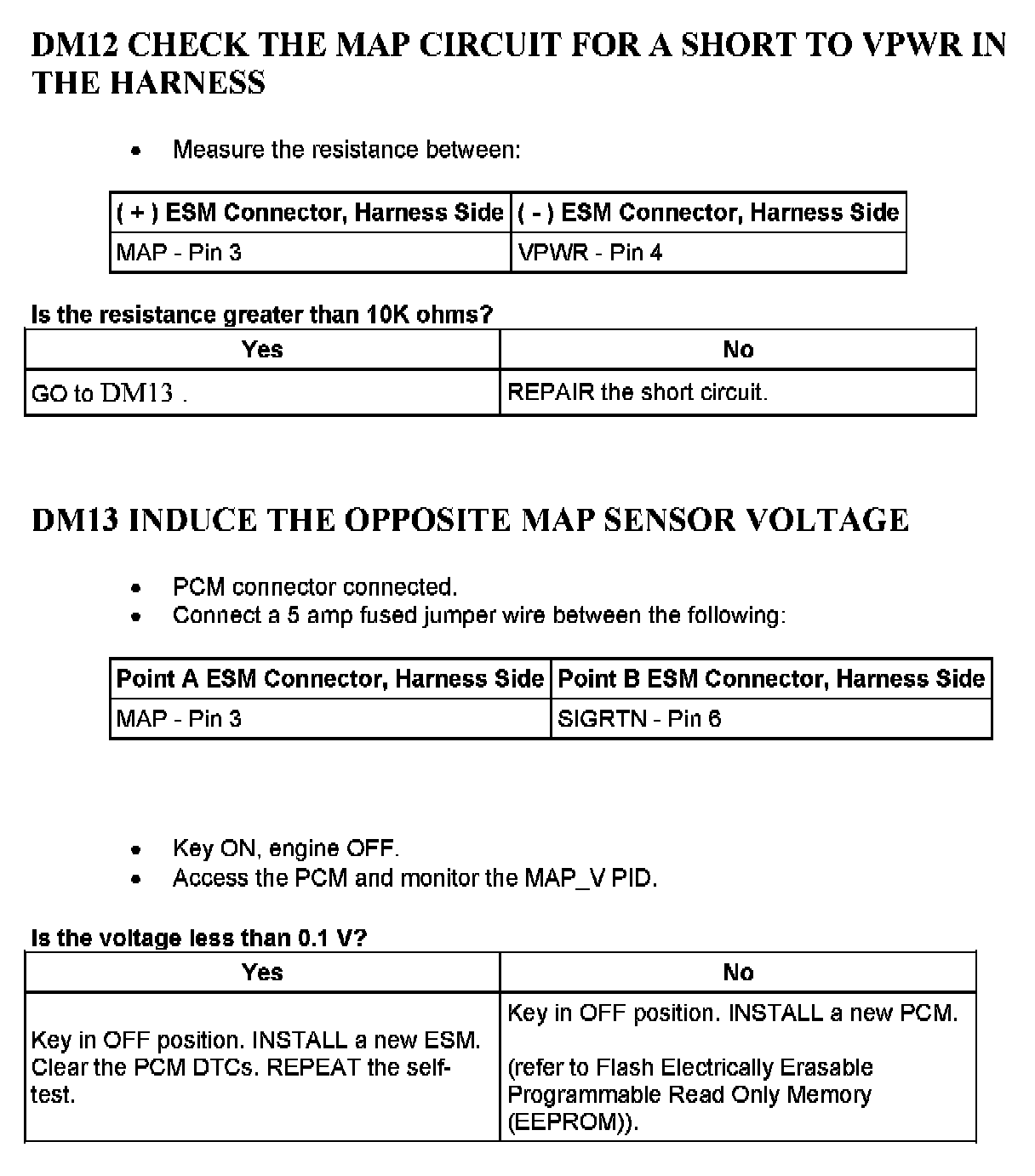

DM12 - DM13:

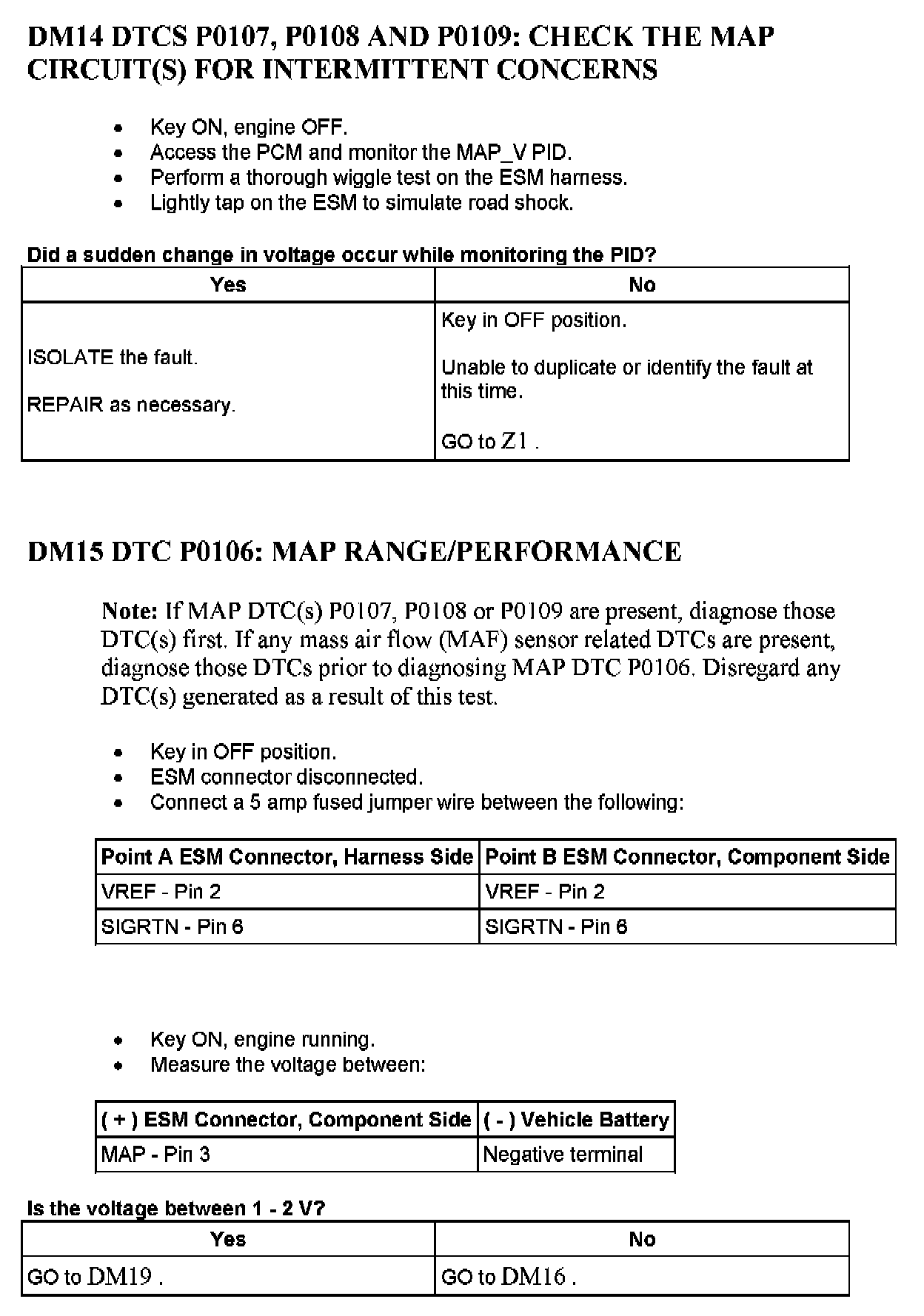

DM14 - DM15:

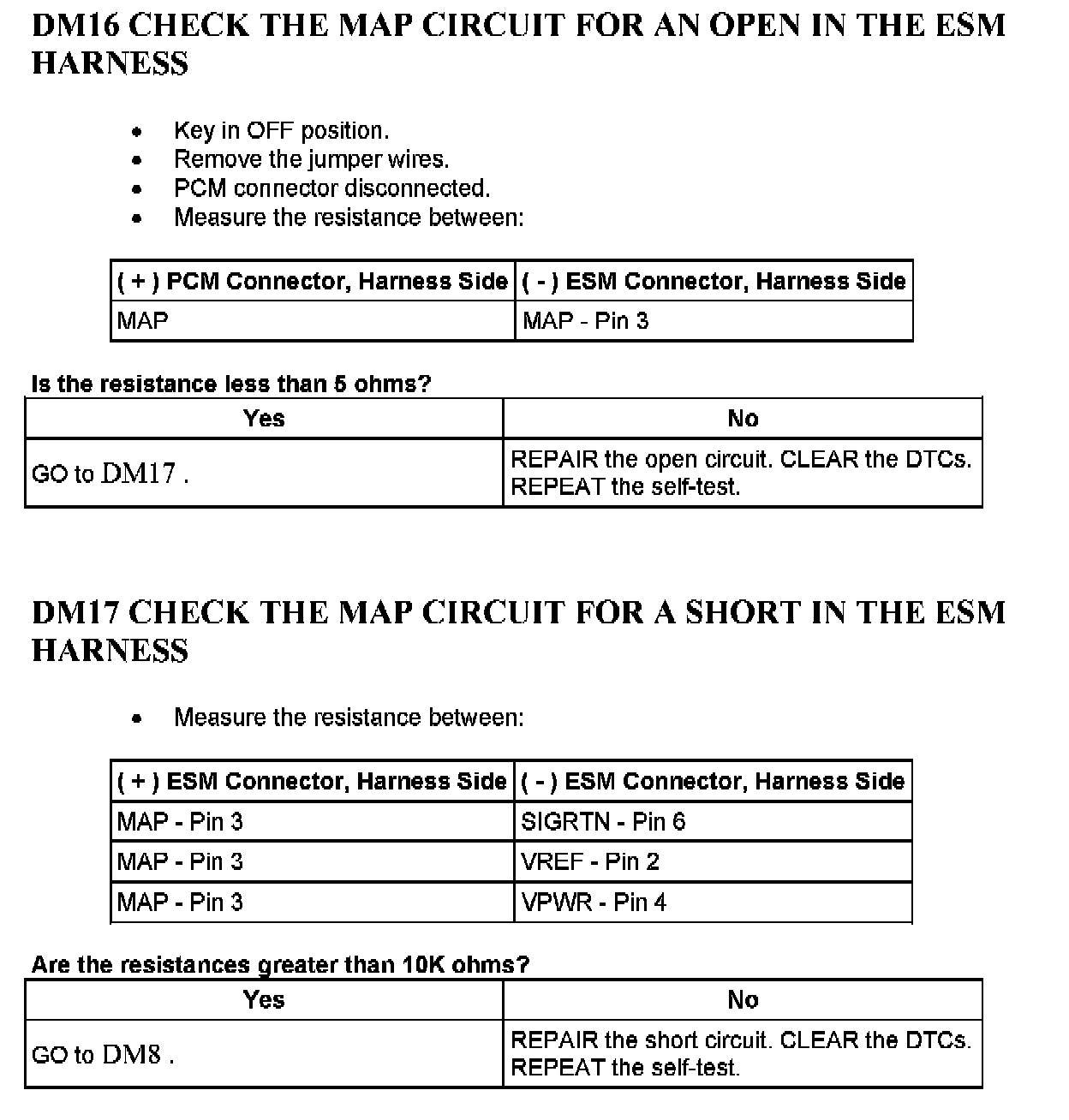

DM16 - DM17:

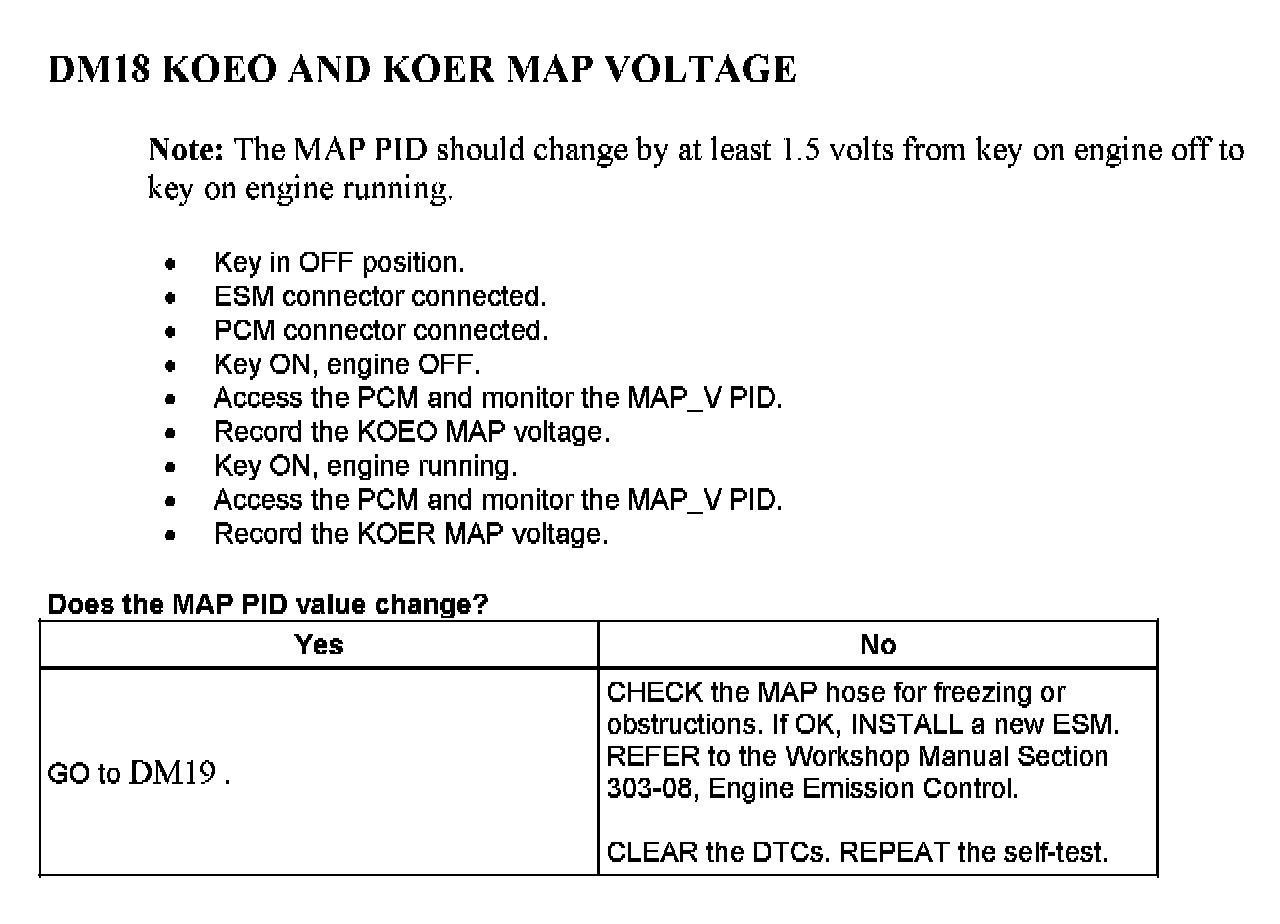

DM18:

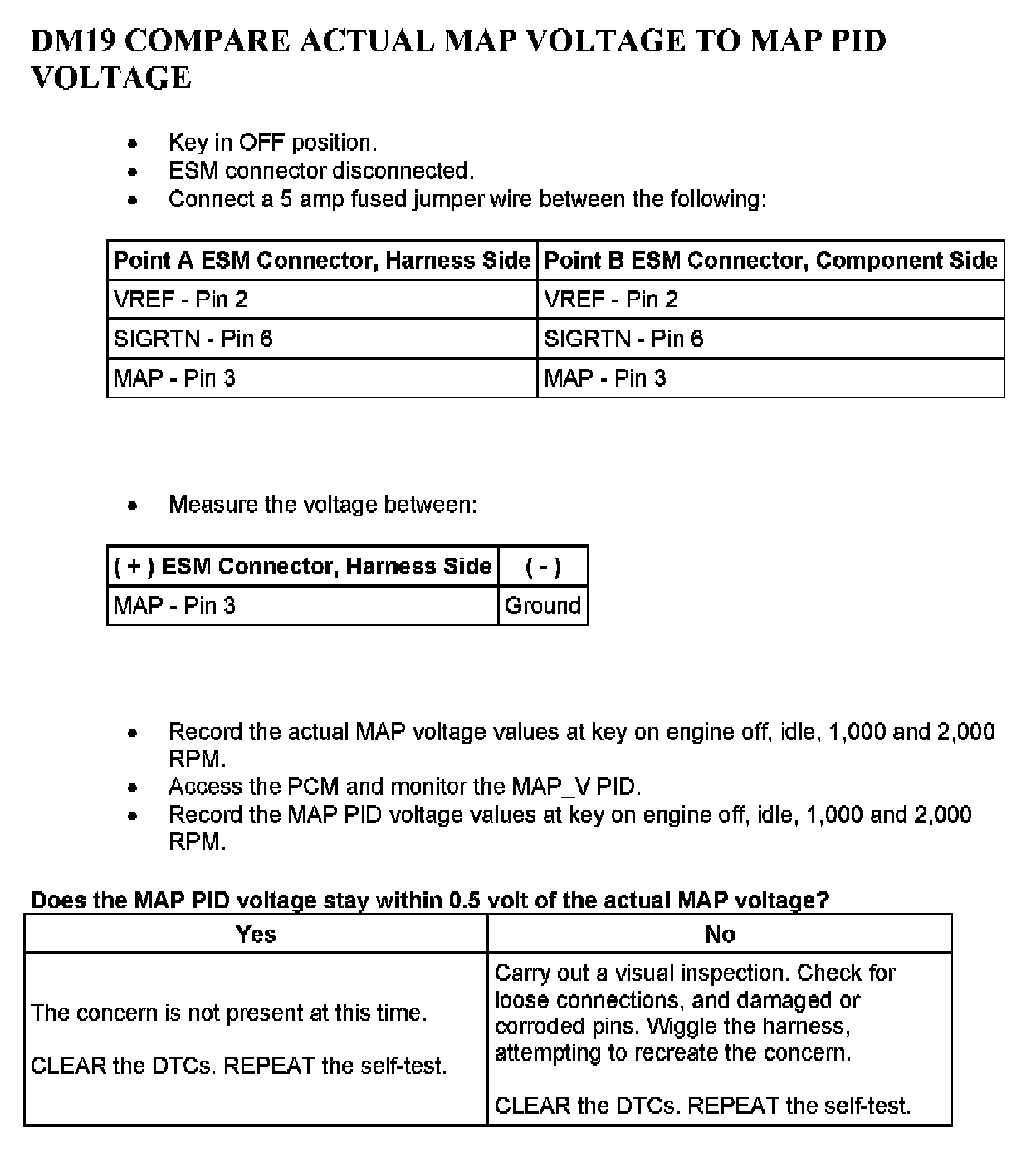

DM19:

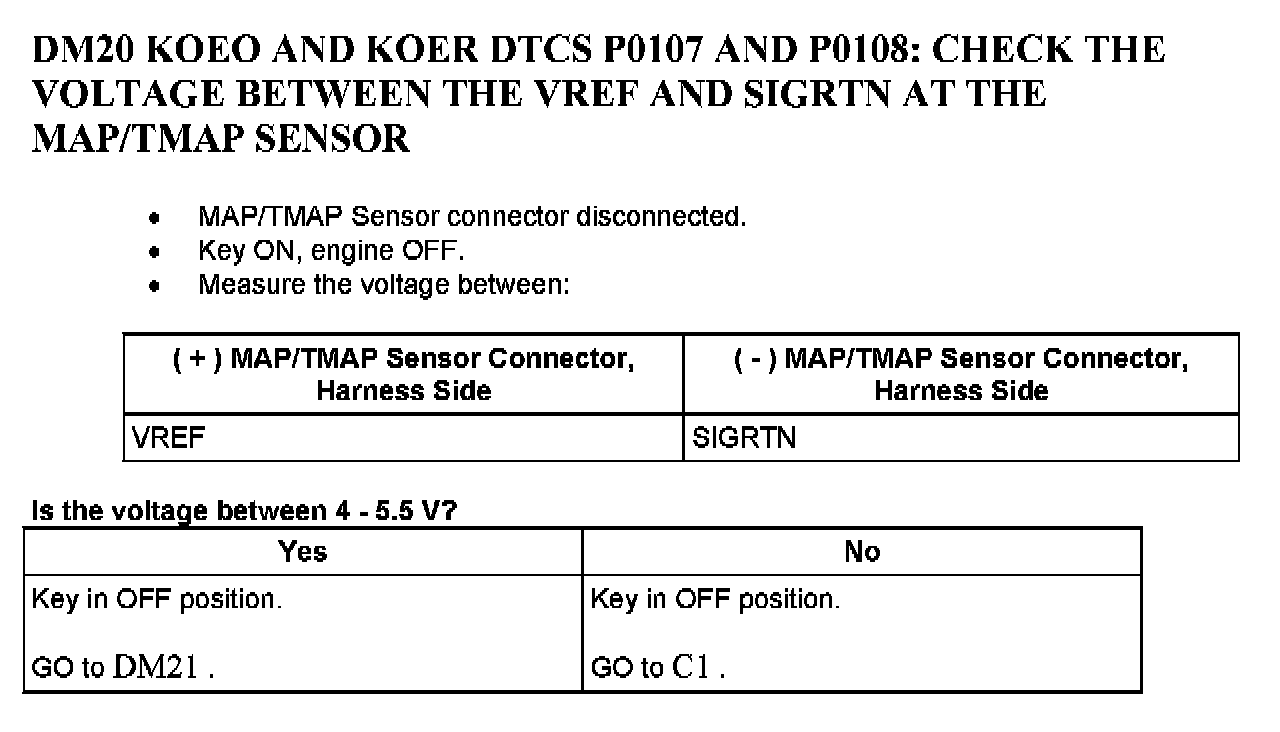

DM20:

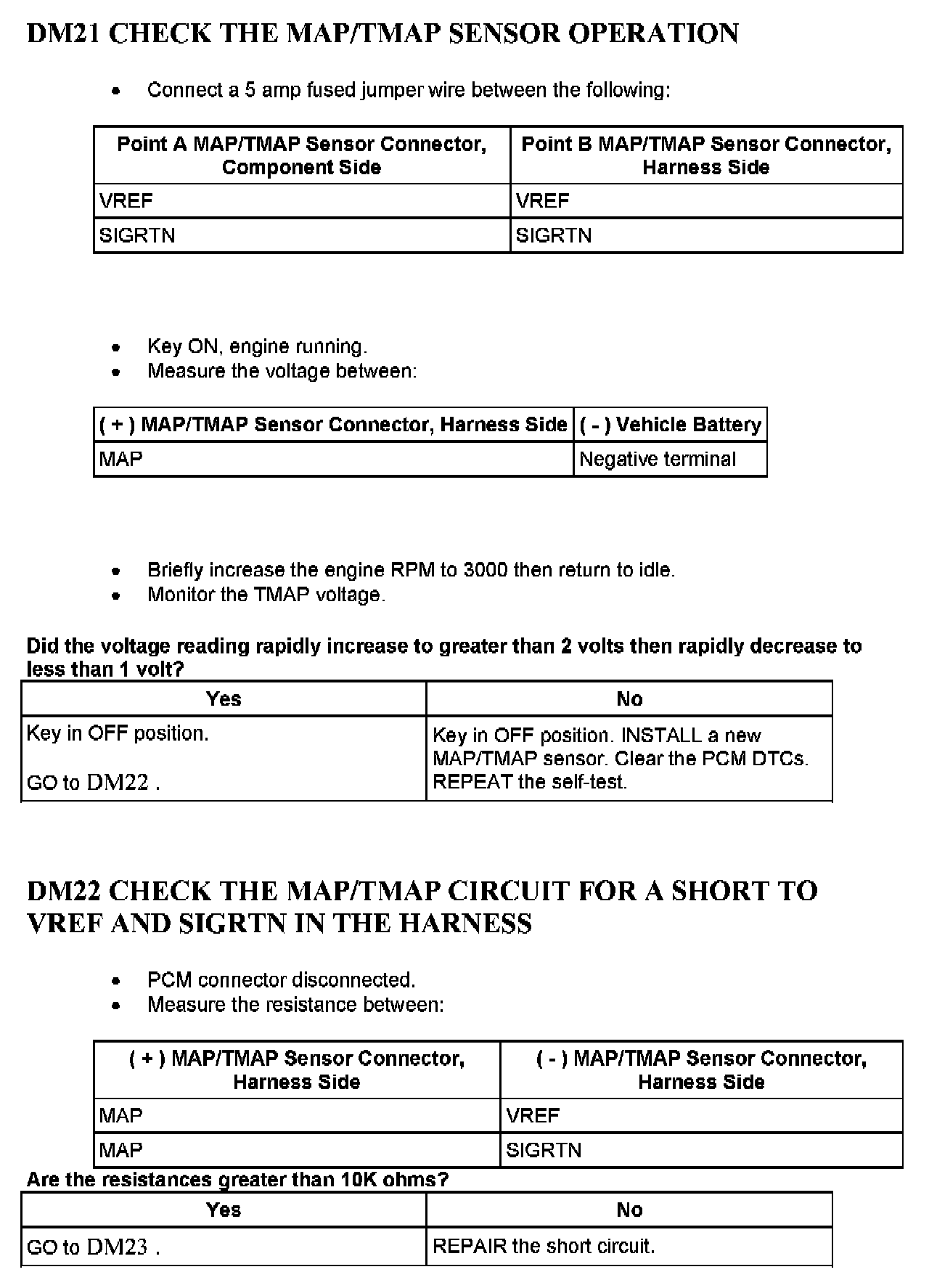

DM21 - DM22:

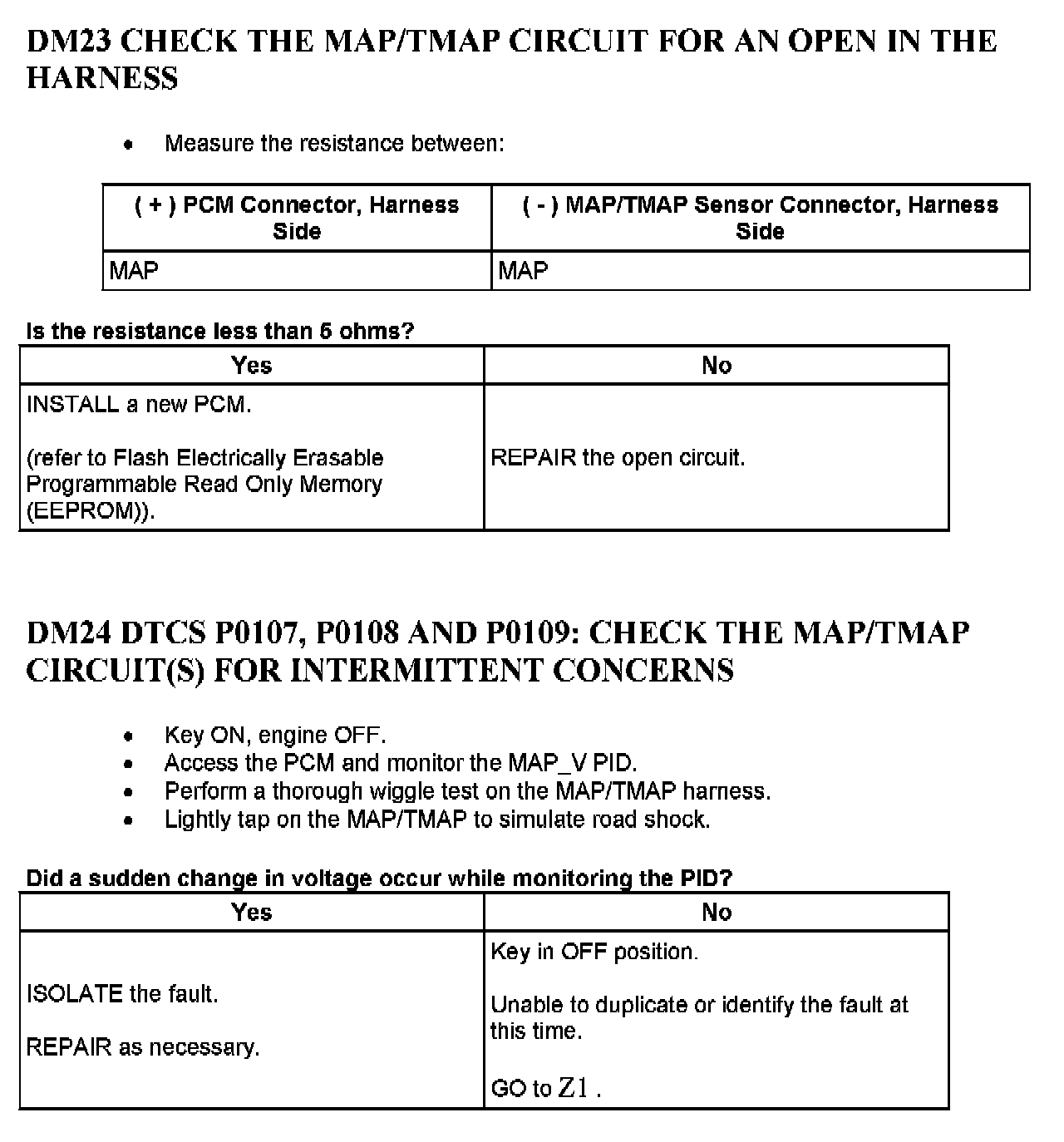

DM23 - DM24:

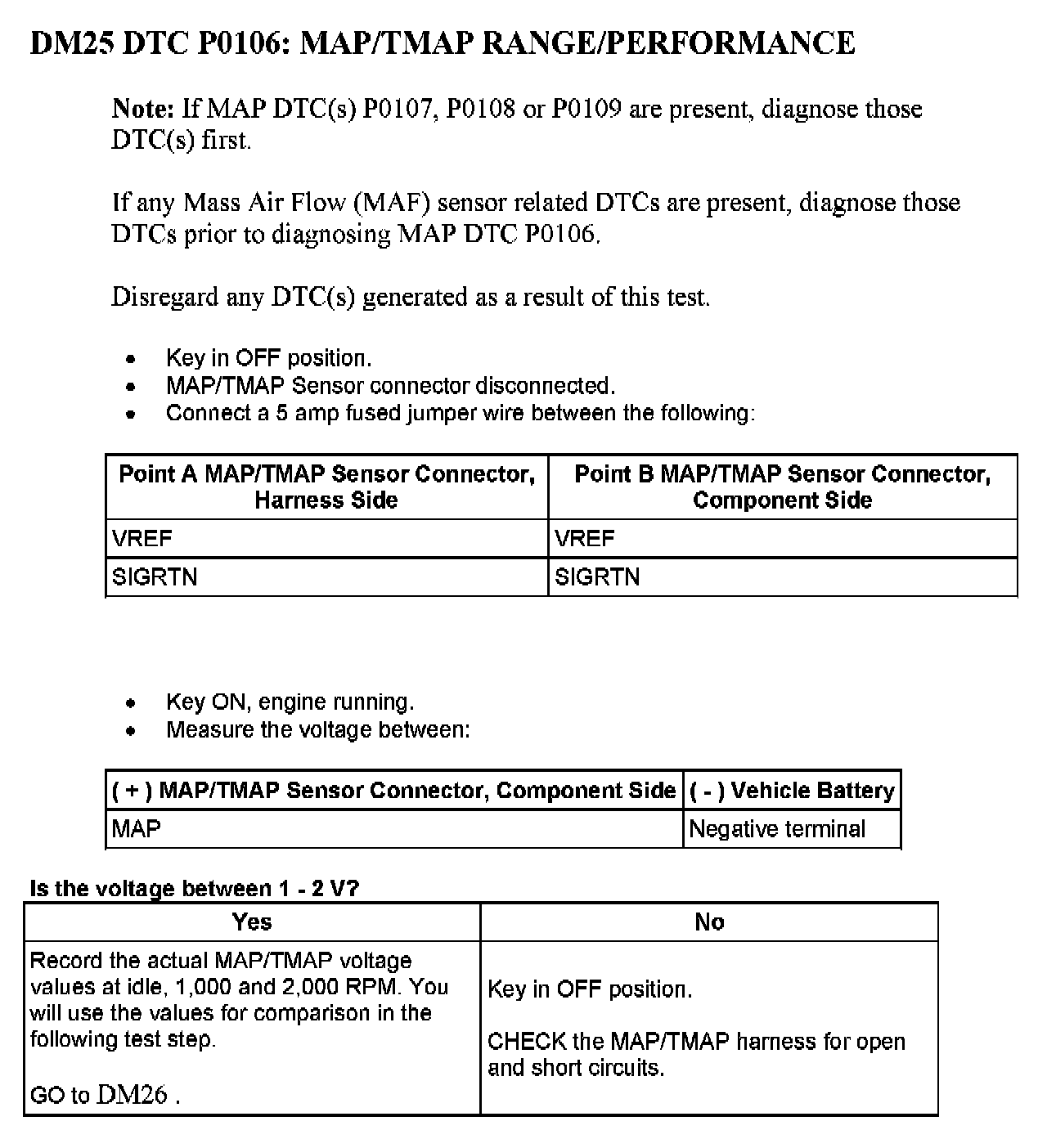

DM25:

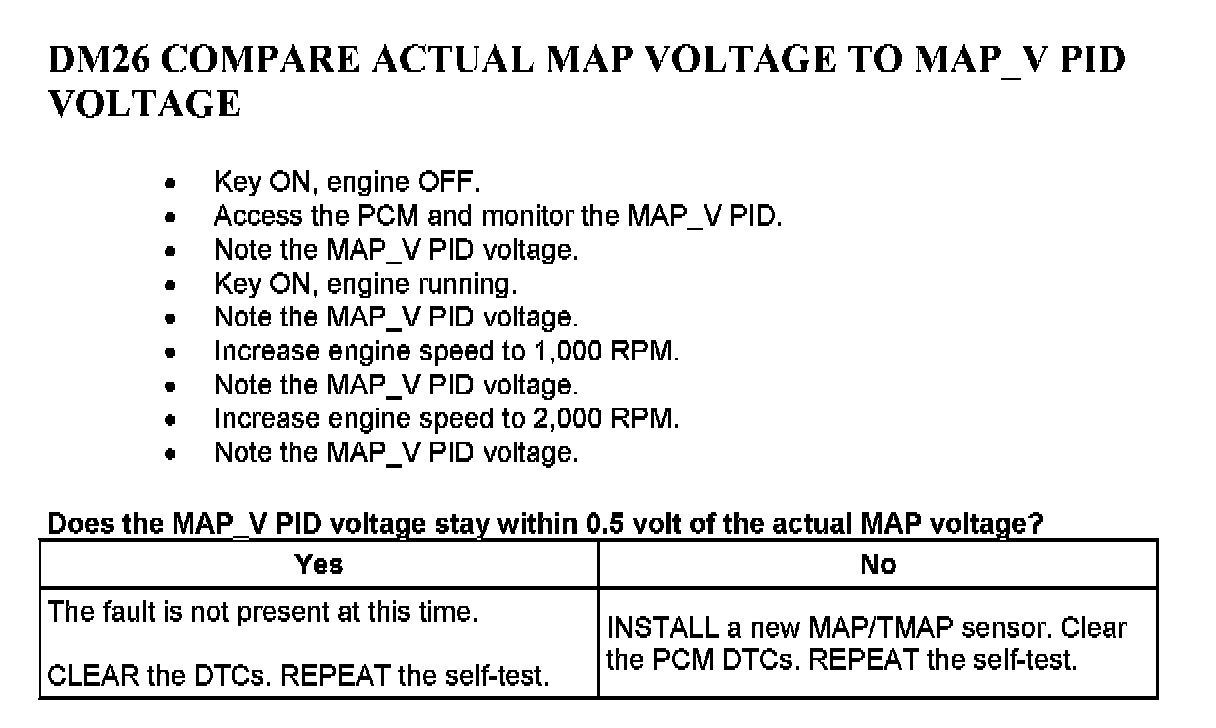

DM26:
