Drive Belt: Service and Repair

Accessory Drive Belt
Removal and Installation

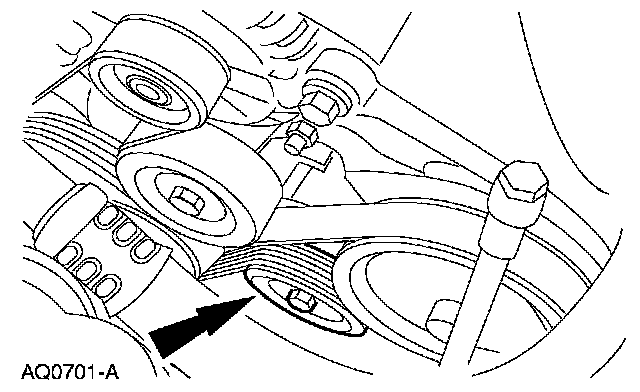

1. Rotate the drive belt tensioner clockwise and remove the drive belt.
2. To install, reverse the removal procedure.
Refer to Component Locations.
