Front Door Window Glass: Service and Repair

FRONT DOOR WINDOW GLASS

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the front door trim panel.
2. Remove the watershield.
3. Remove the interior weatherstrip.







4. CAUTION: Prior to removing the rivet center pins, place suitable support between the door outer panel and the glass to stabilize the glass.

NOTE: Lower the window to access the rivets.

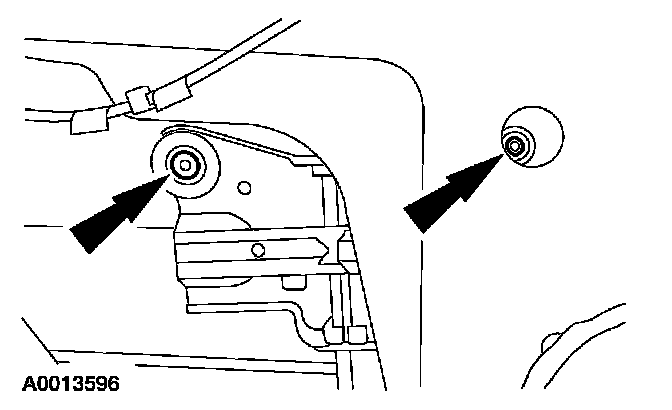

Remove the 2 rivets retaining the front door window glass to the front door window regulator assembly.

5. Tilt the front door window glass forward and remove the glass.

INSTALLATION
1. To install, reverse the removal procedure.
