Home >> Mercury >> 2004 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> 4F50N Automatic Transmission >> Torque Specifications >> Torque Specifications

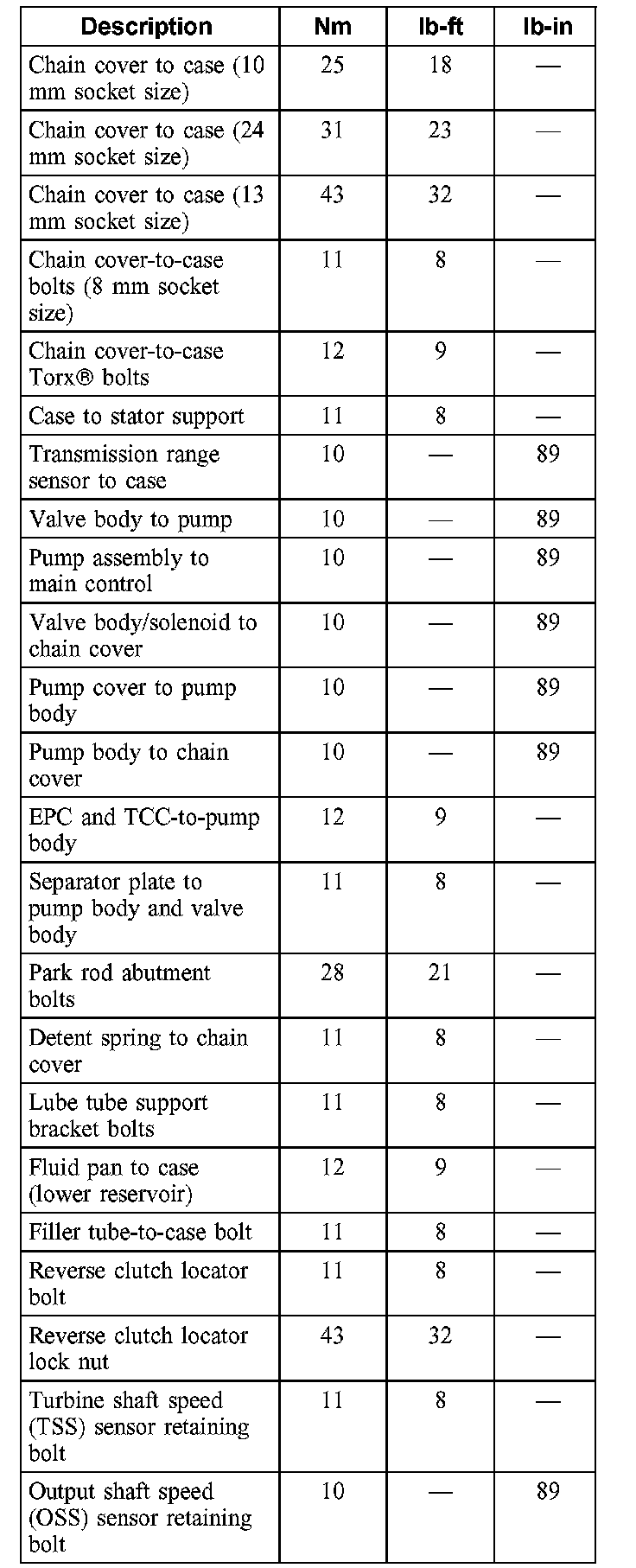

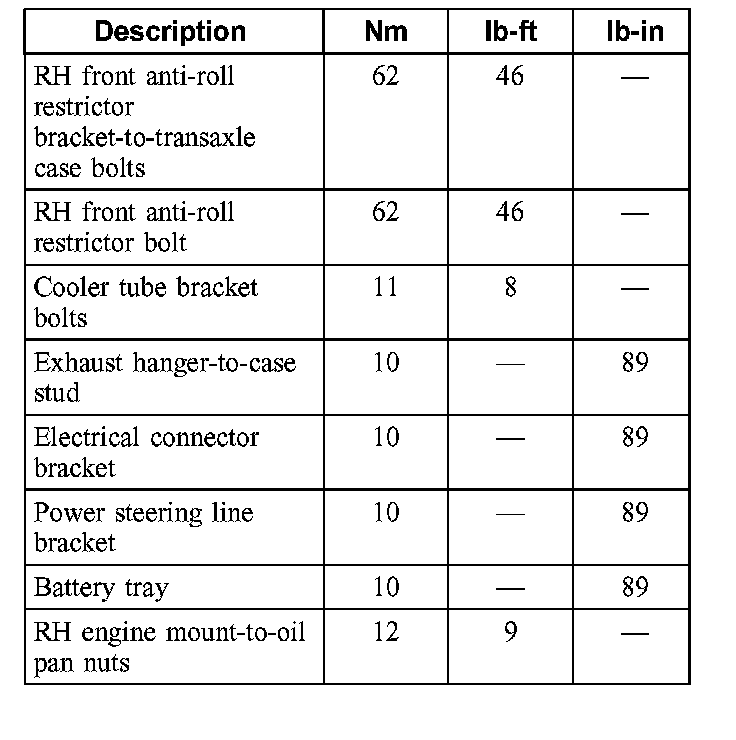

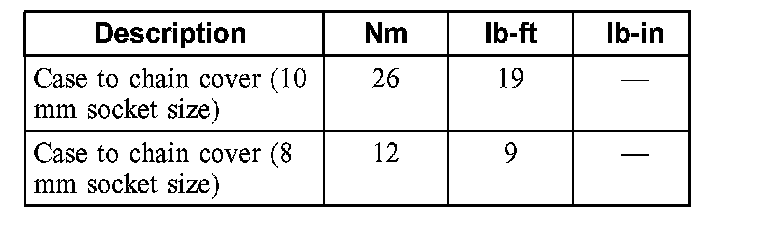

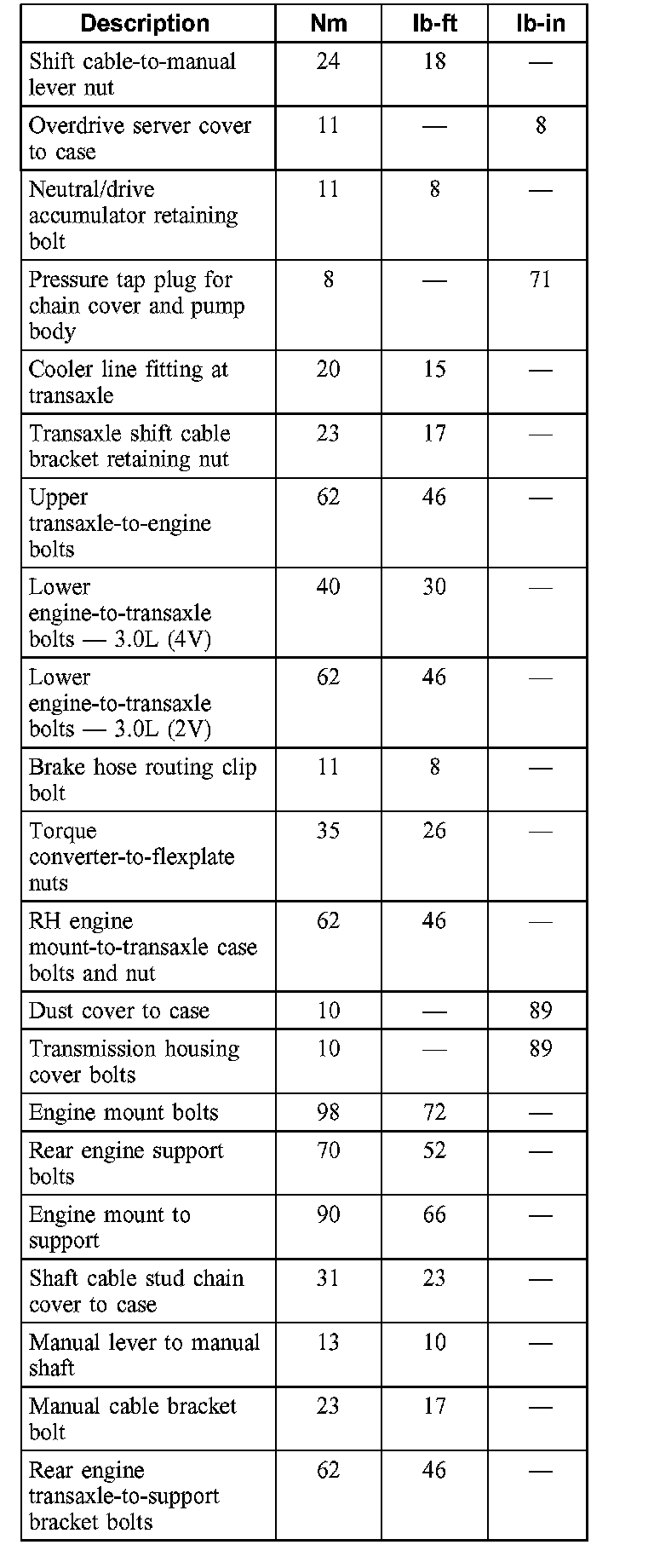

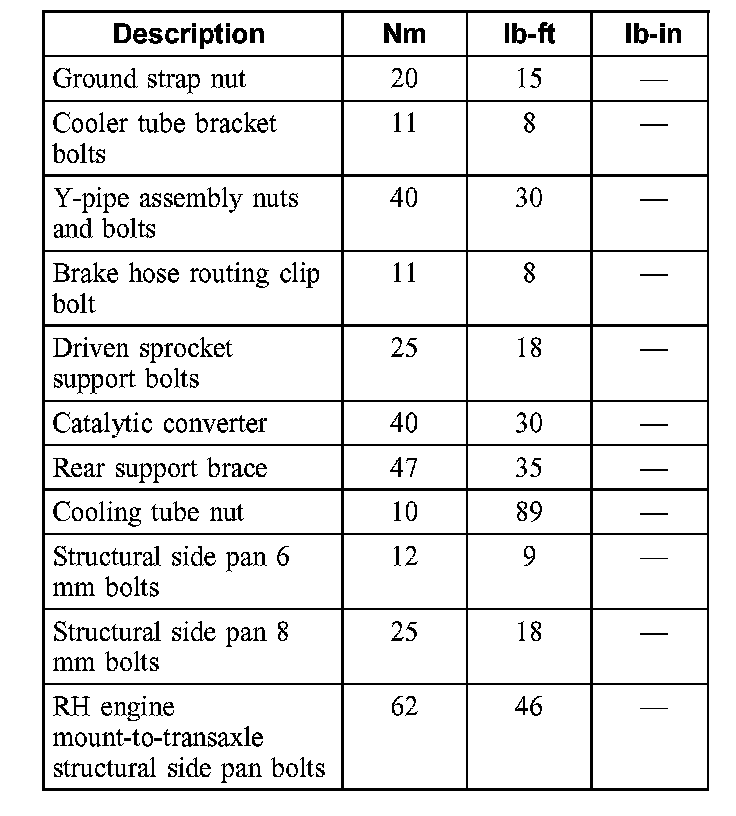

Torque Specifications

Torque Specifications























Torque Converter-to-Flexplate nuts Tighten 35 Nm 26 ft.lbs.
