Home >> Mercury >> 2004 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque

Torque




TORQUE SPECIFICATIONS

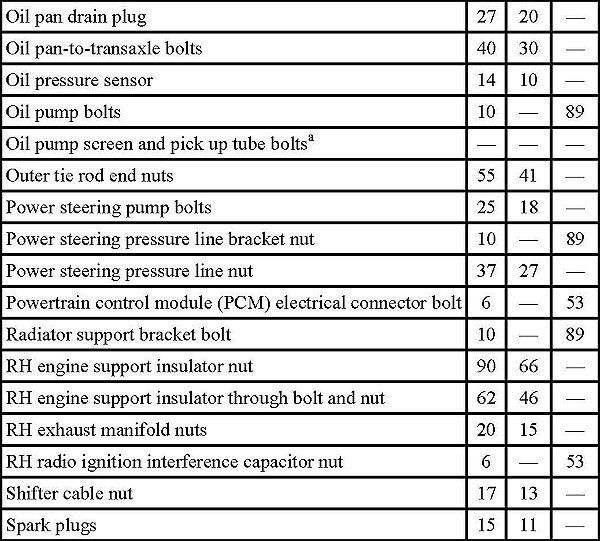

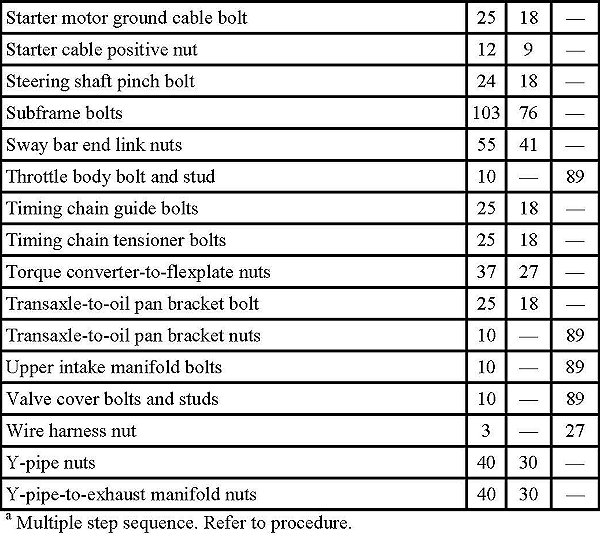

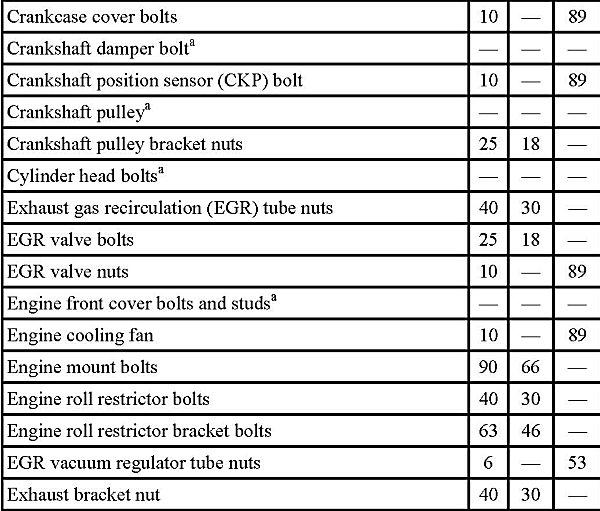

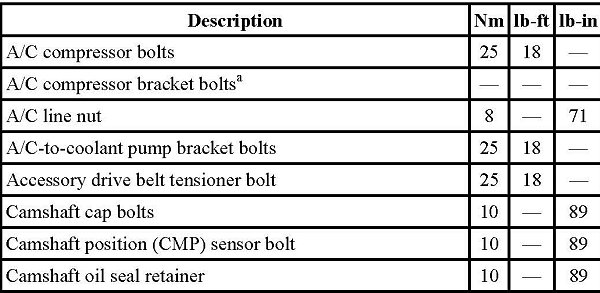

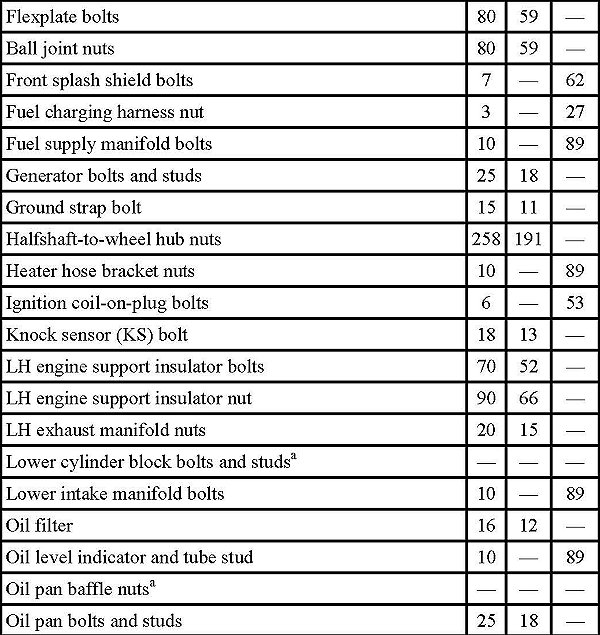

Torque Specifications (1 Of 5):





Torque Specifications (2 Of 5):





Torque Specifications (3 Of 5):





Torque Specifications (4 Of 5):





Torque Specifications (5 Of 5):
