Key Reminder Switch: Service and Repair

KEY-IN-IGNITION WARNING SWITCH

REMOVAL







1. Remove the ignition switch lock cylinder.

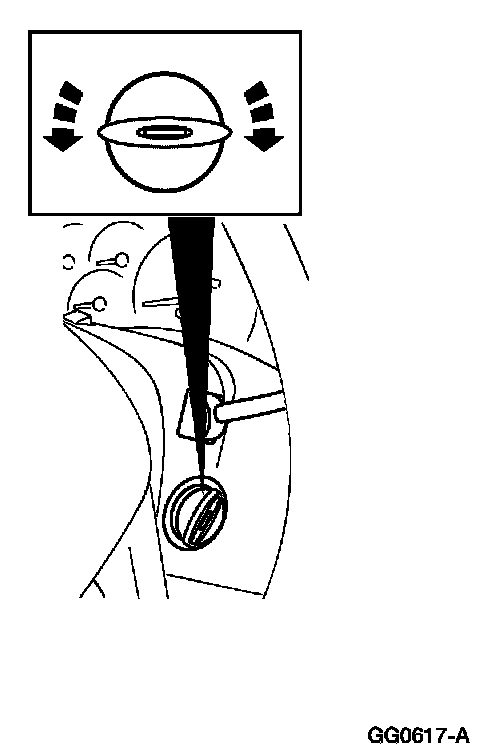

1 Insert the ignition key and turn to the RUN position.

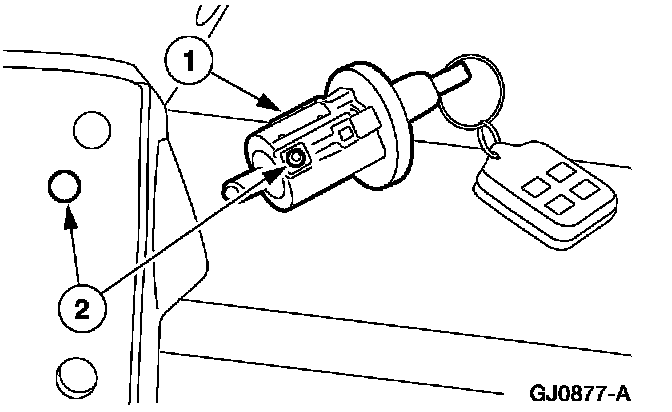

2 Insert a punch in the access hole of the steering column and press the release tab while pulling out the ignition switch lock cylinder.







2. Remove the key in ignition warning switch.
1 Pry the clip down.
2 Push the key in ignition warning switch off the rear of the ignition switch lock cylinder

INSTALLATION







1. To install, reverse the removal procedure.
- Verify ignition switch lock cylinder operation.
