Coil-On-Plug - LH

IGNITION COIL-ON-PLUG - LH

REMOVAL

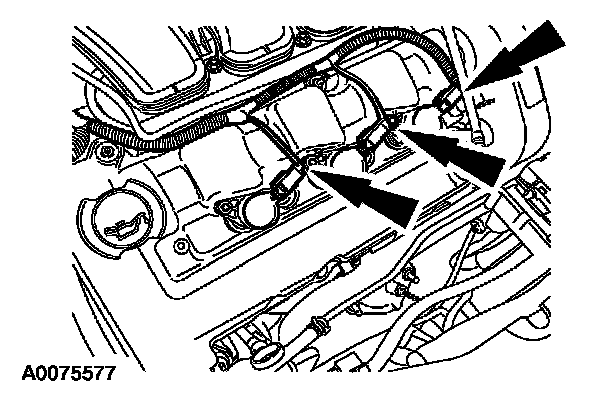

1. Disconnect the electrical connector from the ignition coils.







2. NOTE: When removing the ignition coils, a slight twisting motion will break the seal and ease removal.

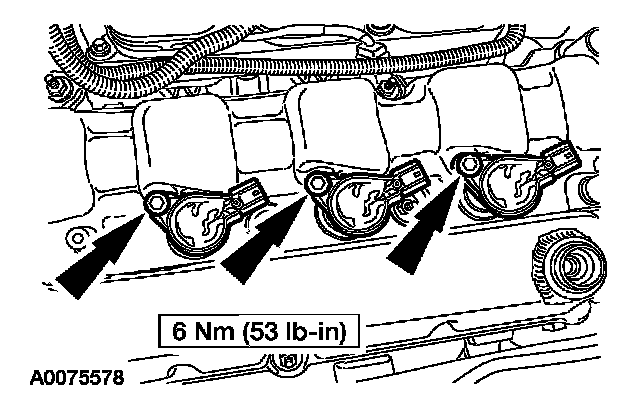

Remove the bolts and the ignition coils.

INSTALLATION
1. To install, reverse the removal procedure.
- Apply a light film of Silicone Brake Caliper Grease and Dielectric compound D7AZ-19A331-A or equivalent meeting Ford specifications ESE-M1C171-A to the inside of the coil boots before installation.
