Tests JH: Tachometer Signal Output CTO
Tests JH: Tachometer Signal Output CTO
PINPOINT TEST JH: TACHOMETER SIGNAL OUTPUT CTO
JH Introduction:
JH1 - JH2:

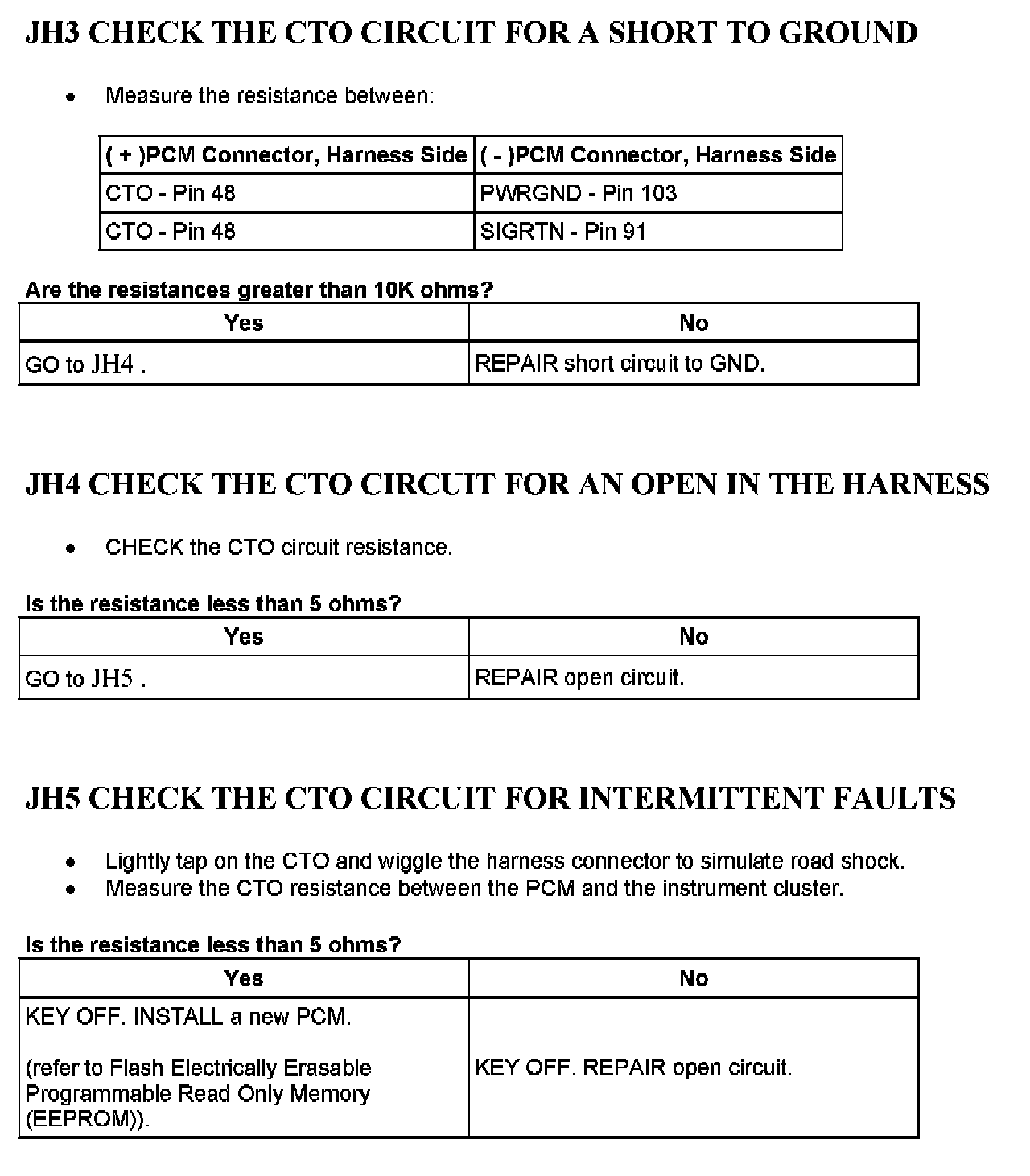

JH3 - JH5:
