Water Pump Belt With Tensioner

Water Pump Belt with Tensioner
Removal and Installation

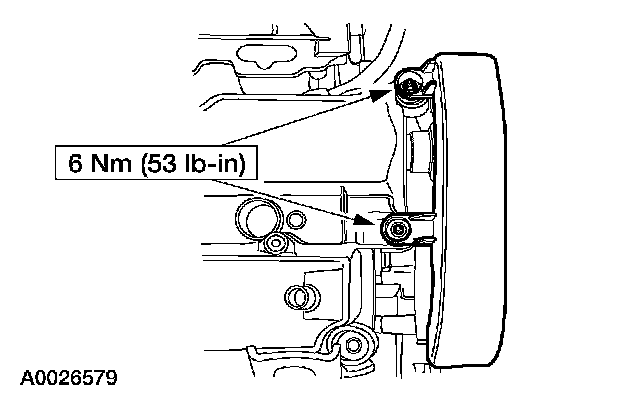

1. Remove the coolant pump belt cover.
- Remove the retaining nuts.
- Remove the coolant pump belt cover.

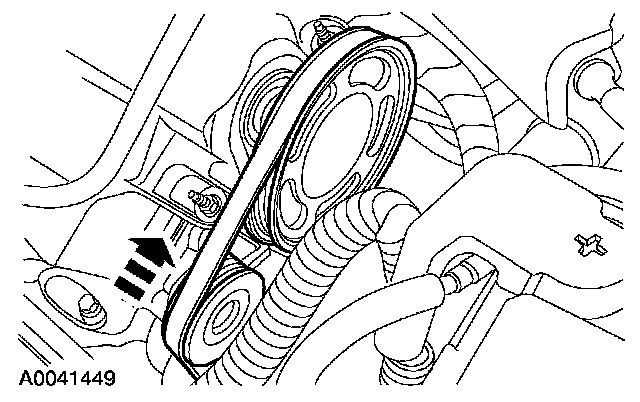

2. Rotate the drive belt tensioner clockwise and remove the coolant pump belt.
3. To install, reverse the removal procedure.
