Home >> Mercury >> 2004 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Maintenance >> Drive Belt >> Service and Repair >> Accessory Drive Belt

Accessory Drive Belt

Accessory Drive Belt

Removal and Installation

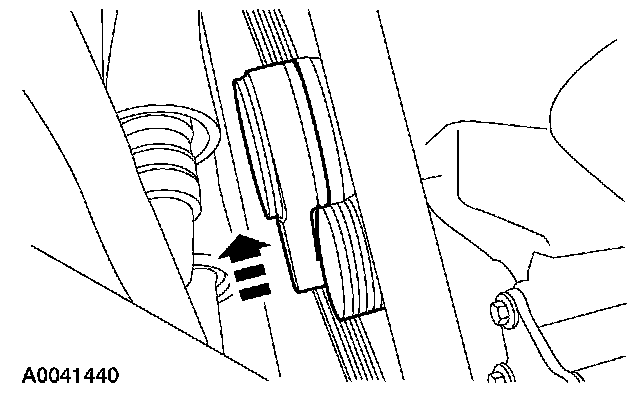

1. Using a commercially available belt tensioner release tool such as OTC 7644 or equivalent, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.
2. To install, reverse the removal procedure.
