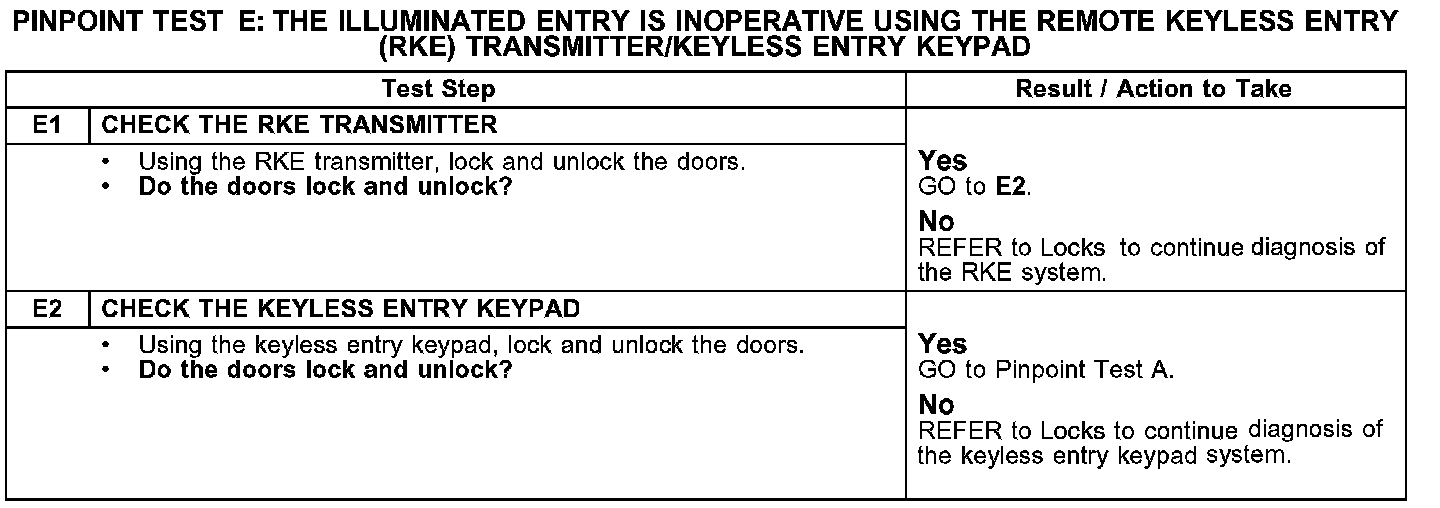

PINPOINT TEST E: THE ILLUMINATED ENTRY IS INOPERATIVE USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER/KEYLESS ENTRY KEYPAD
Test E1-E2:
