Home >> Mercury >> 2004 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test Q

Test Q

PINPOINT TEST Q: THE HIGH BEAM INDICATOR IS NEVER ON

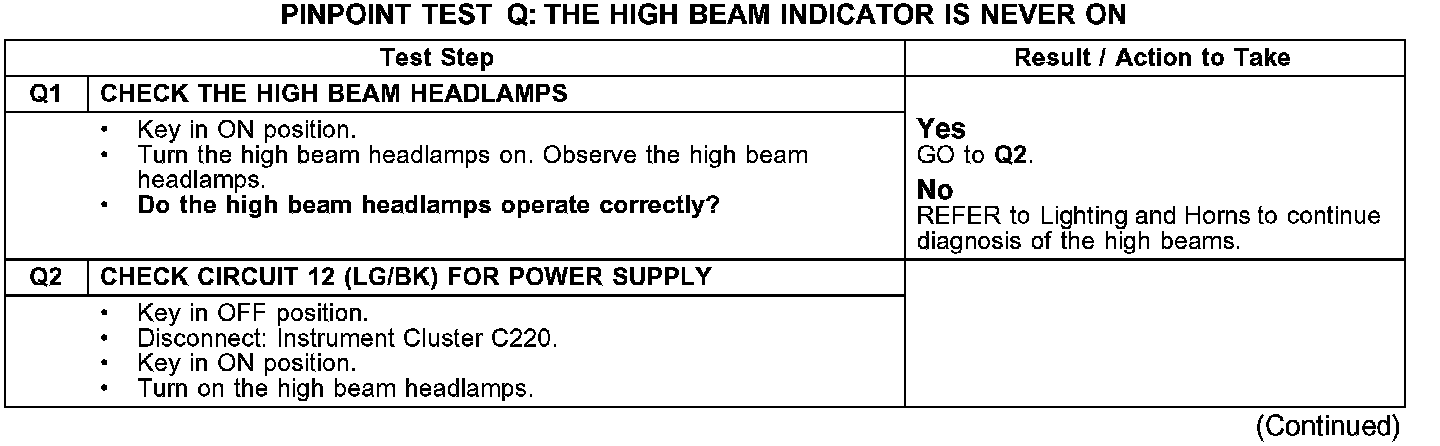

Test Q1-Q2:

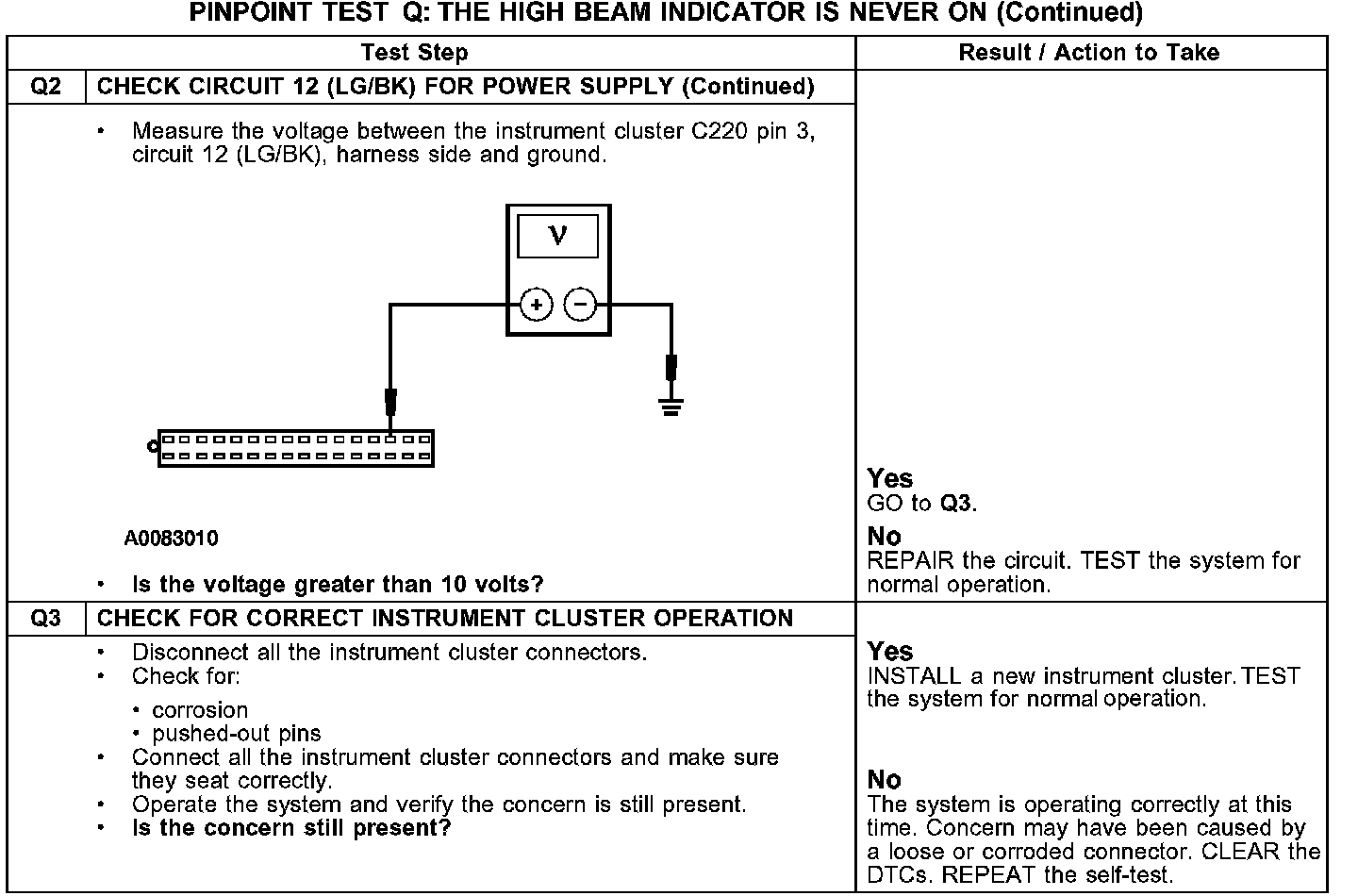

Test Q2-Q3:
