Temperature Control Switch

TEMPERATURE CONTROL SWITCH

REMOVAL
1. Remove the integrated control panel.

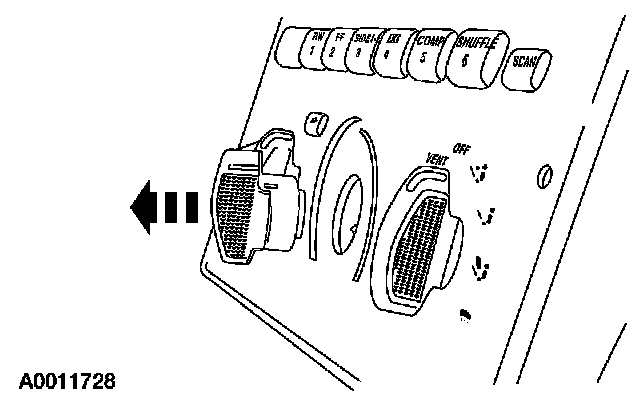

2. Remove the knob.

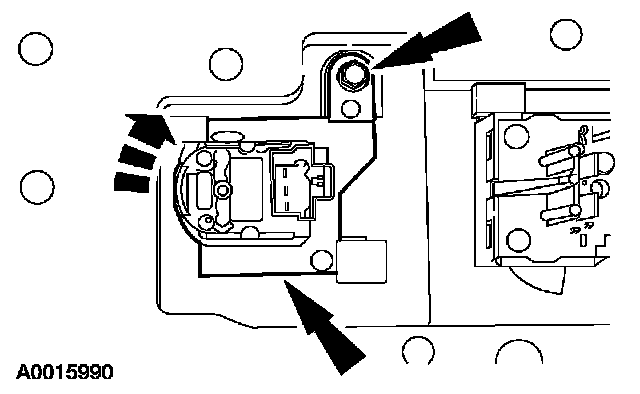

3. Remove the screw. Rotating the temperature control switch clockwise, remove the temperature control switch.

INSTALLATION
1. To install, reverse the removal procedure.
