Left Hand Side

Exhaust Manifold LH
Removal and Installation

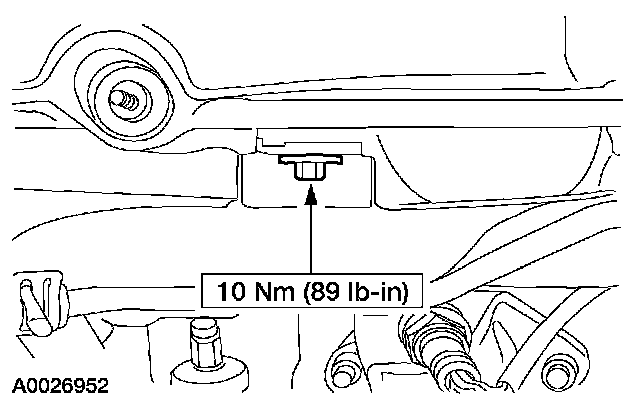

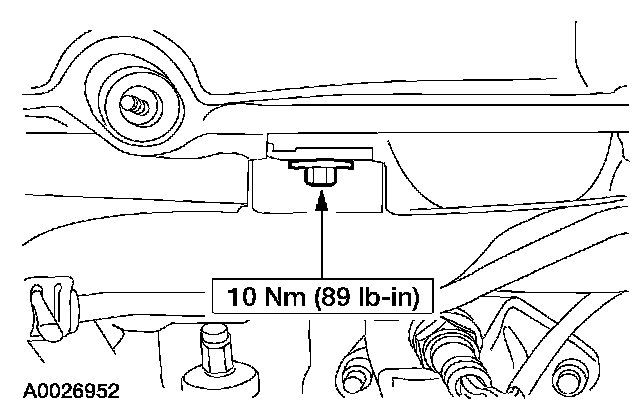

1. Remove the coolant tube bracket bolt.

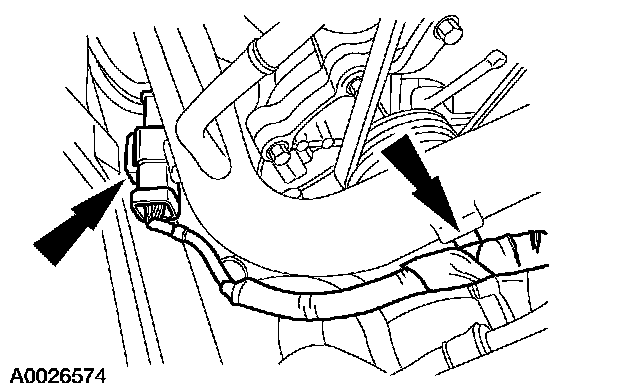

2. Disconnect and unclip the LH Heated Oxygen Sensor (HO2S) electrical connector from the coolant tube.
3. Remove the dual converter Y-pipe.

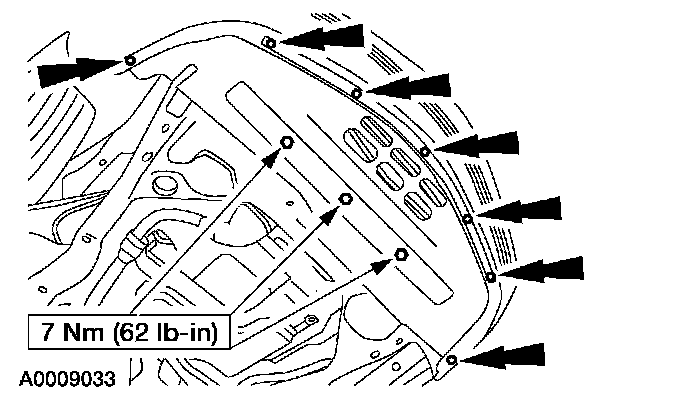

4. Remove the pin-type retainers, bolts and the front splash shield.

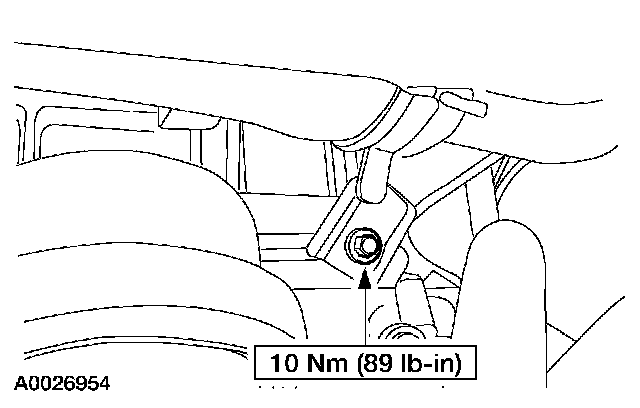

5. Remove the coolant tube lower bracket bolt.





6. Remove the nuts and the exhaust manifold.
^ Discard the gasket.











7. To install, reverse the removal procedure.
