Valve Guide Seal: Service and Repair

Valve Seals

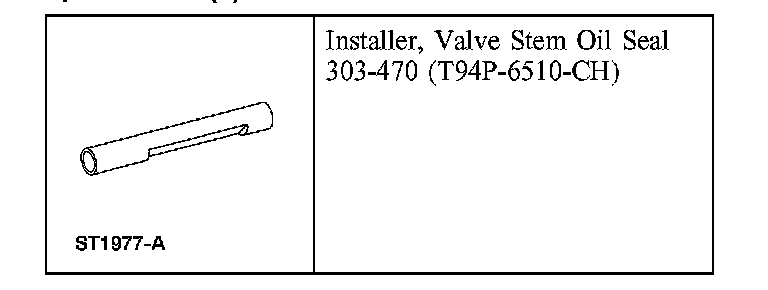

Special Tool(s)

Removal
1. Remove the valve spring.

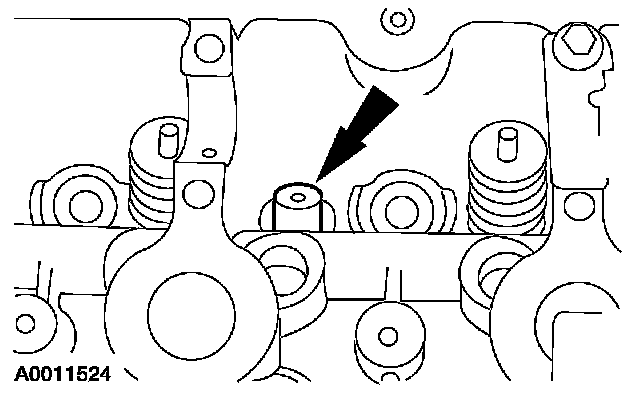

2. NOTE: Camshaft removed for clarity.

Remove the valve seal.

Installation

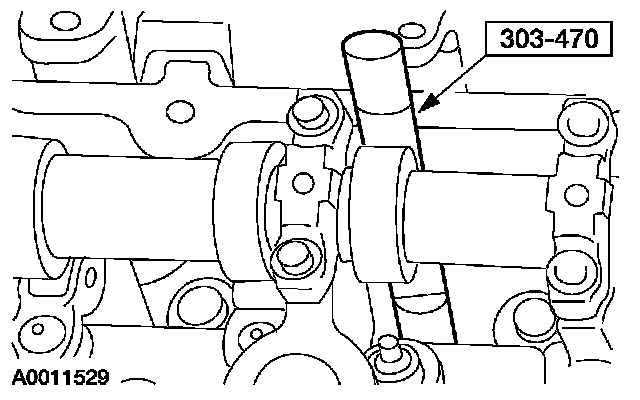

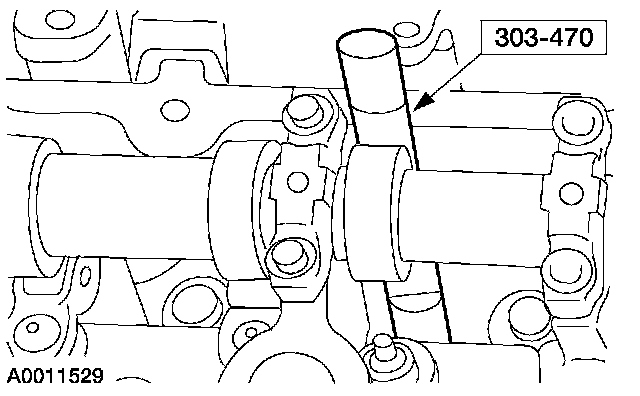

1. Using the special tool, install the valve seal.
2. Install the valve spring.
