Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

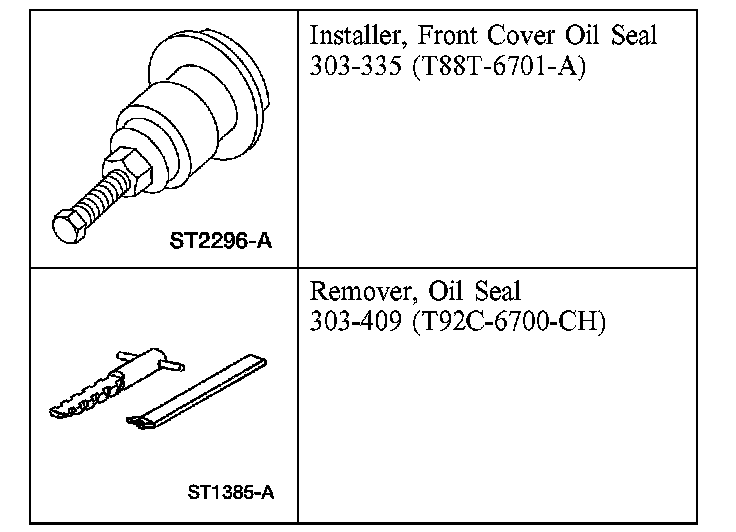

Special Tool(s)

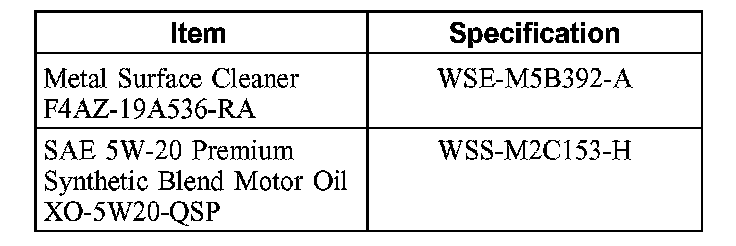

Material

Removal
1. Remove the crankshaft vibration damper.

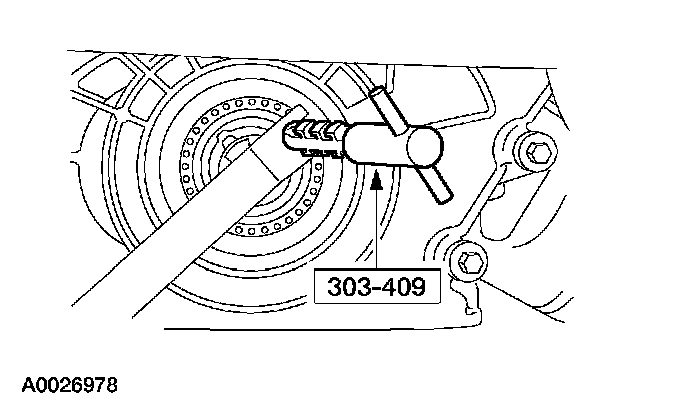

2. Using the special tool, remove the crankshaft front oil seal and discard.

Installation

1. NOTE: Clean all sealing surfaces with metal surface cleaner.

Apply clean engine oil to the seal before installing the seal.

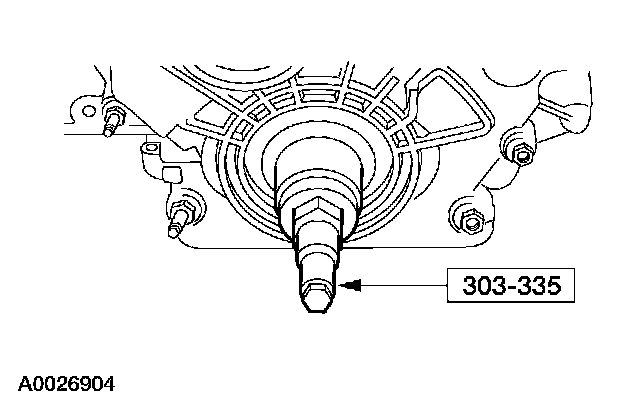

2. Using the special tool, install the crankshaft front oil seal.
3. Install the crankshaft vibration damper.
