Accessory Drive Belt Tensioner

Accessory Drive Belt Tensioner

Removal and Installation
1. Remove the accessory drive belt.





2. Remove the tie strap from the power steering hose.

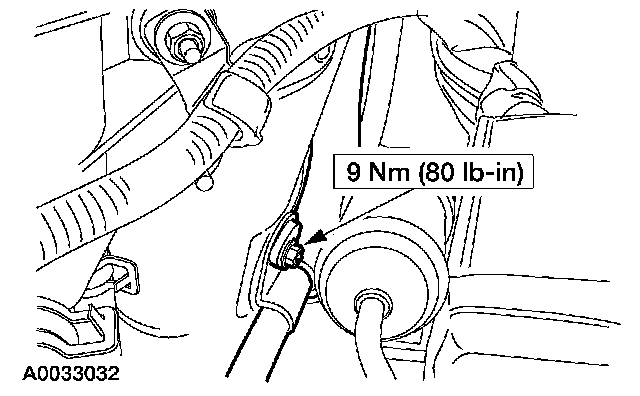

3. Remove the retaining nut and position the A/C low pressure hose out of the way.

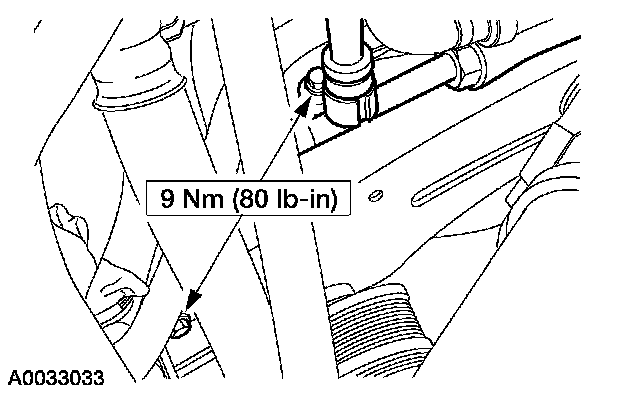

4. Remove the bolts and position the A/C high pressure hose on top of the belt tensioner.

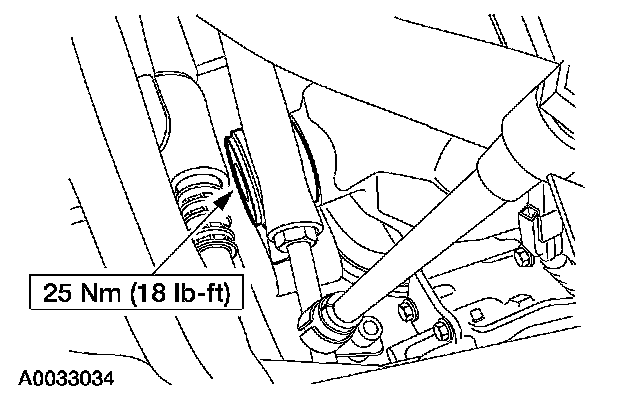

5. Remove the bolt and the accessory drive belt tensioner.
6. To install, reverse the removal procedure.
