Remote Control: Service and Repair

INTEGRATED CONTROL PANEL (ICP)

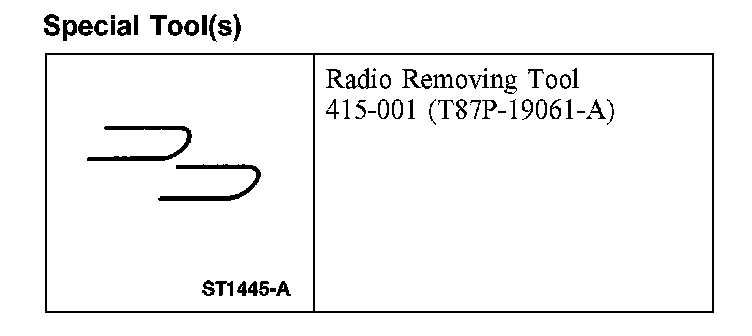

Radio Removing Tool:

SPECIAL TOOL(S)

REMOVAL
1. Disconnect the battery ground cable.







2. NOTE: Manual A/C integrated control panel shown, electronic automatic control panel (EATC) similar.

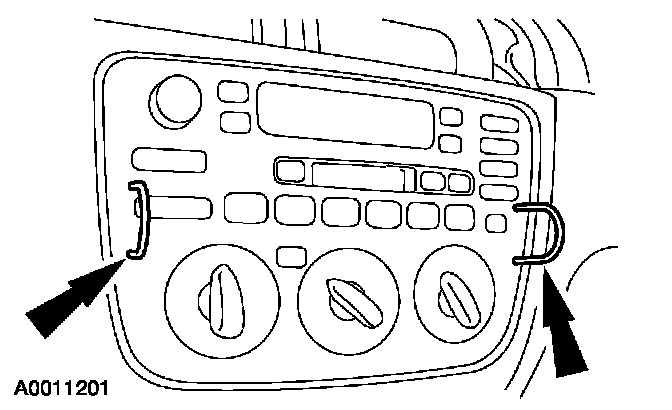

Using the radio removing tool, pull the integrated control panel (ICP) out of the instrument panel.







3. Remove the ICP.

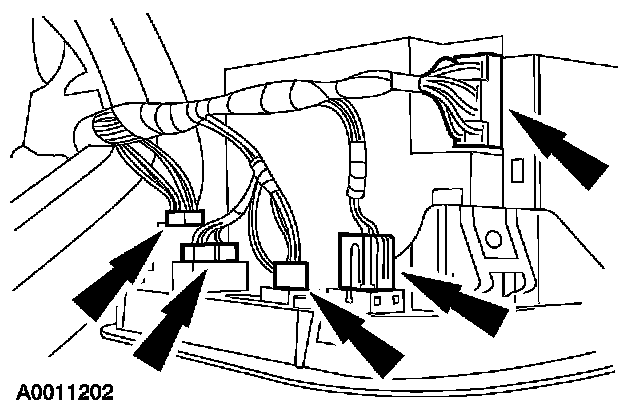

- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
