System Specifications

Timing chain tensioner bolts-primary 25 Nm (18 ft. lbs.)
Timing chain tensioner bolts-secondary 10 Nm (89 inch lbs.)
Crankshaft Pulley bolt and washer.
Stage 1 90 Nm (66 ft. lbs.).
Stage 2 Loosen the bolt one full turn.
Stage 3 50 Nm (37 ft. lbs.).
Stage 4 additional 85 to 95 degrees.

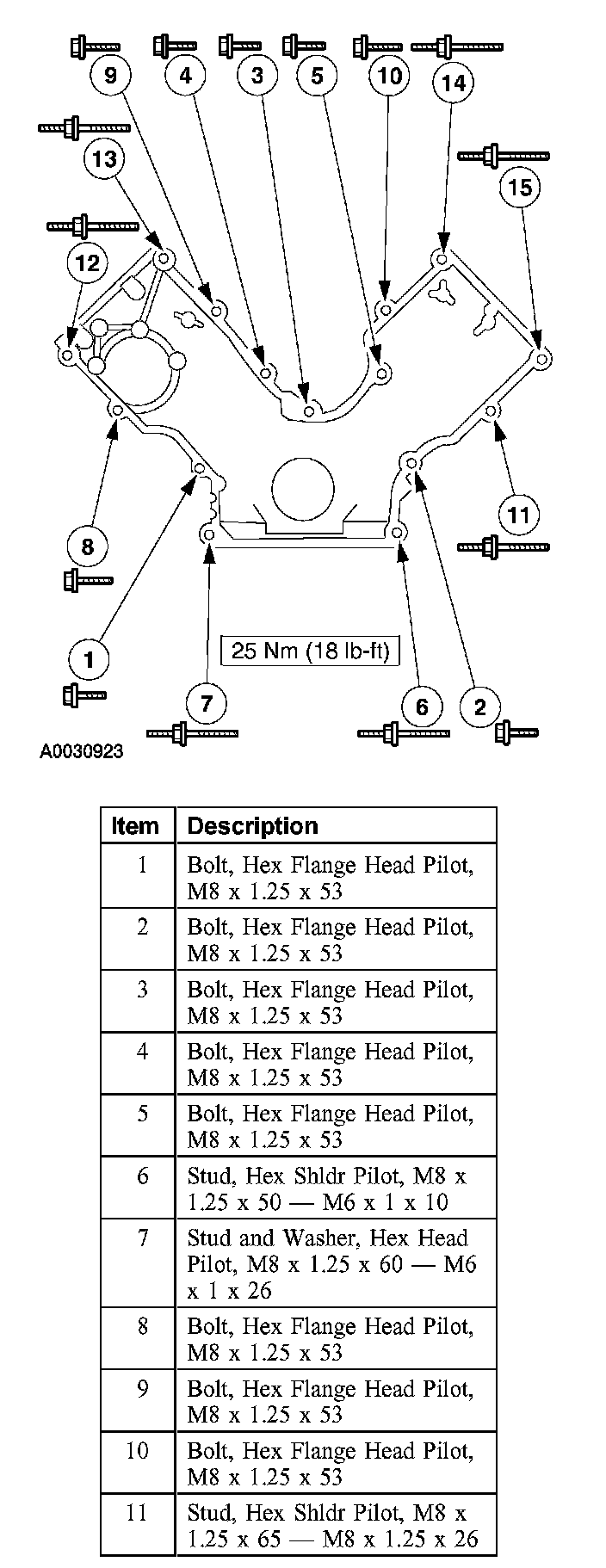

Part 1 Of 2:

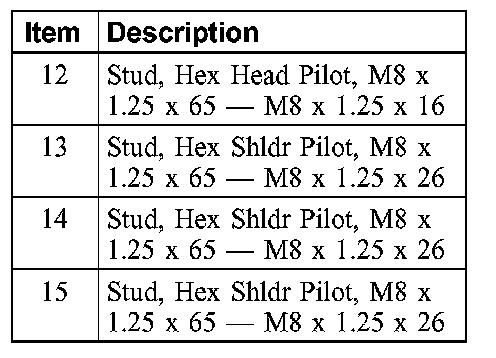

Part 2 Of 2:

Timing Cover bolts
