Ride Height Sensor: Service and Repair

Suspension Height Sensor-Air

Removal and Installation

WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the LH rear quarter trim panel. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

1. Turn the air suspension switch to the OFF position.
2. Raise and support the vehicle.

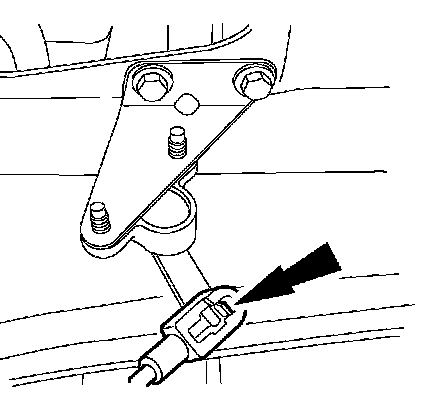

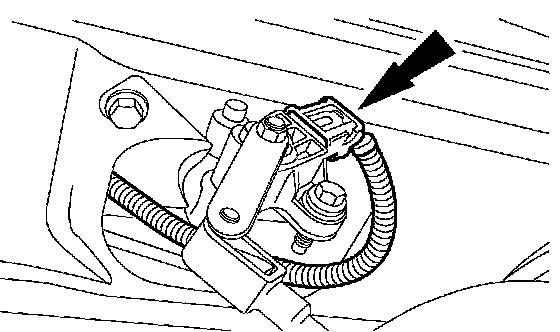

3. Disconnect the air suspension height sensor electrical connector.





4. Disconnect the connecting link.

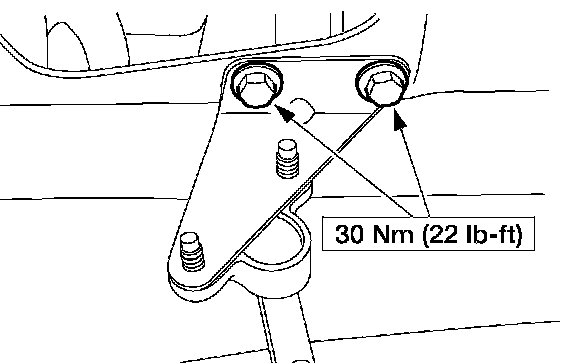

5. Remove the bolts and the height sensor.
6. To install, reverse the removal procedure.
