Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL

REMOVAL
1. Disconnect the battery.







2. Remove the ignition switch lock cylinder.

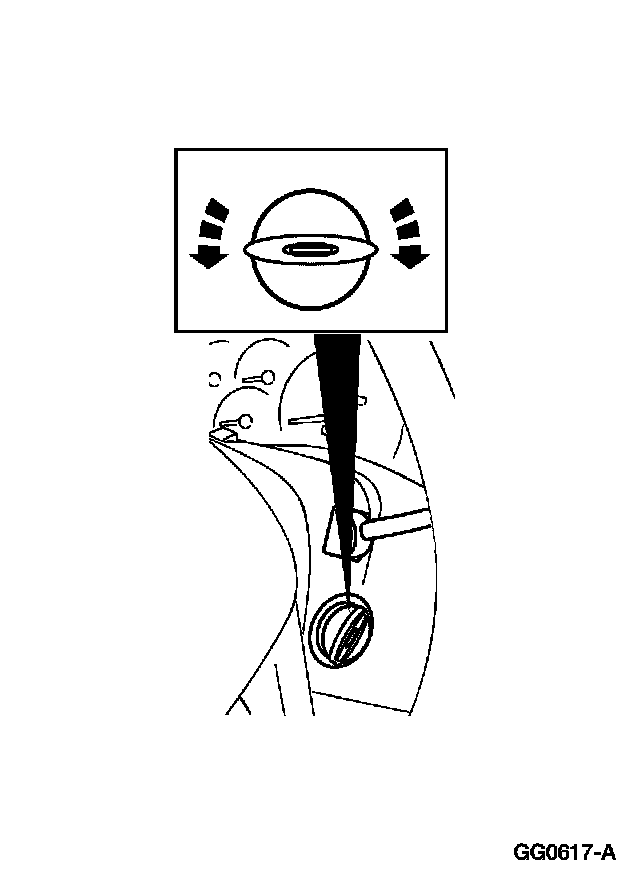

1 Insert the ignition key and turn to the RUN position.

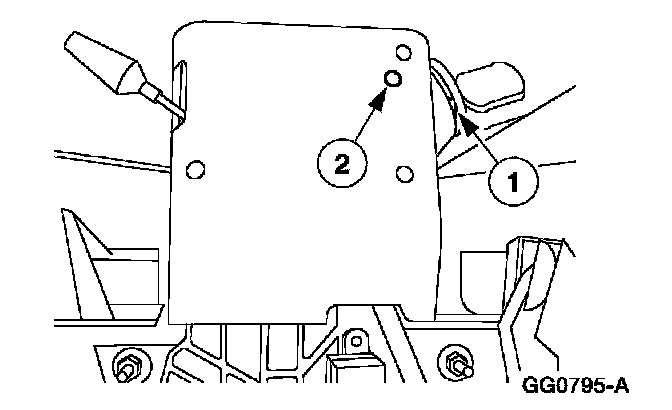

2 Press the ignition switch lock cylinder release pin while pulling out the ignition switch lock cylinder.

INSTALLATION







1. To install, reverse the removal procedure.
- Verify ignition switch lock cylinder operation.
