Fuel Tank and Lines

FUEL TANK AND LINES

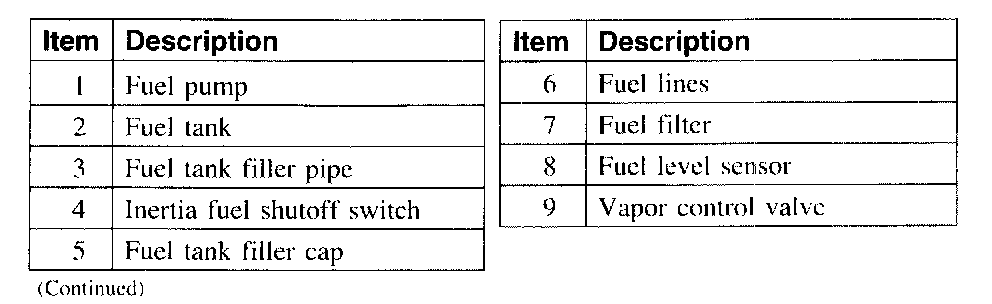

Component Location, Part 1:

Component Location, Part 2:

The fuel system consists of:
- the fuel tank
- the fuel tank filler pipe which contains a restrictor plate to permit only unleaded fuel to be pumped into the fuel tank
- a 1/8 turn type fuel tank filler cap
- a fuel filter providing filtration to protect the fuel injectors
- fuel lines
- a fuel pump containing:
- the electric fuel pump which provides pressurized fuel to the engine
- the fuel level sensor
- an inlet filter (sock type)
- a check valve which maintains system pressure after the pump is shut off
- a pressure relief valve for overpressure protection in the event of restricted flow

The fuel pump is controlled by the powertrain control module (PCM) which energizes the fuel pump relay. Electrical power to the pump is provided through the inertia fuel shutoff (IFS) switch located in the trunk on the left rear decklid bracket.
