EGR Tube: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) SYSTEM MODULE TUBE

REMOVAL

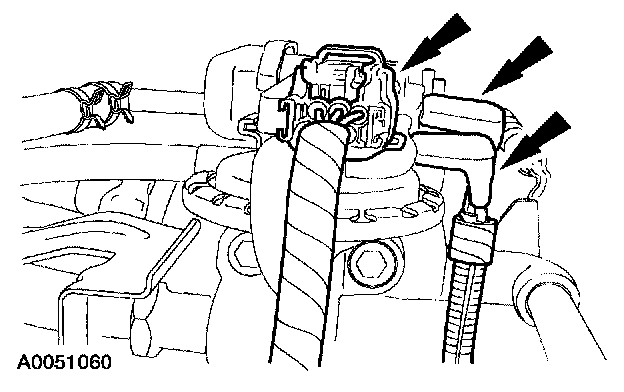

1. Disconnect the electrical connector and the vacuum hoses.

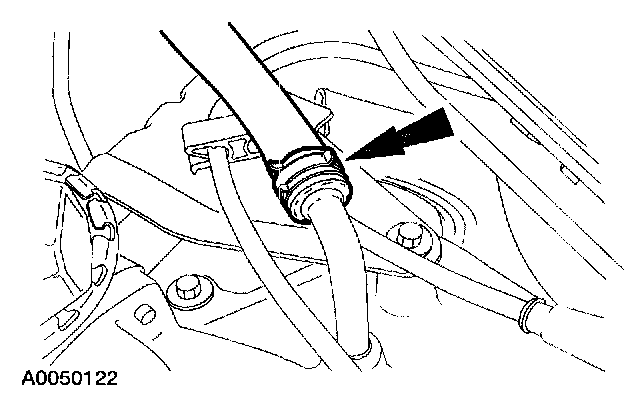

2. Disconnect the vacuum hose.

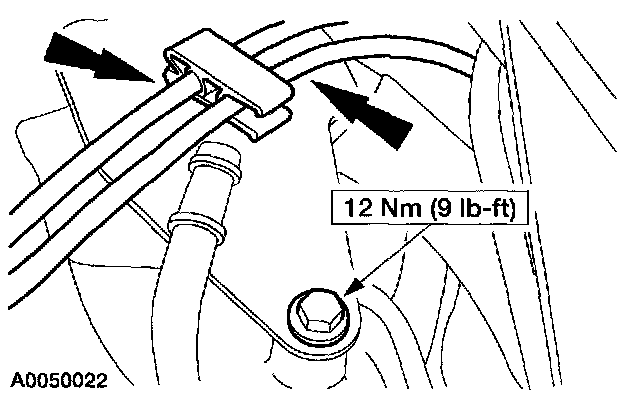

3. Remove the bolt and disconnect the accelerator cables from the retainer.

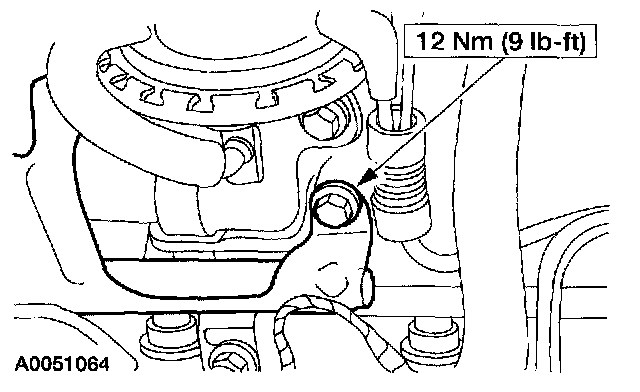

4. Remove the bolt and the accelerator cable bracket.

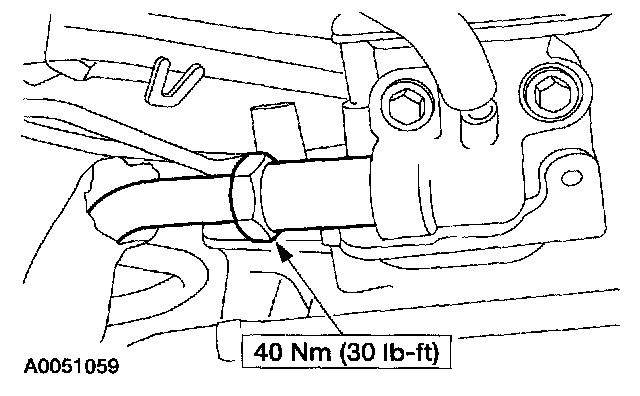

5. Disconnect the exhaust gas recirculation (EGR) tube from the EGR system module.
6. Raise and support the vehicle.

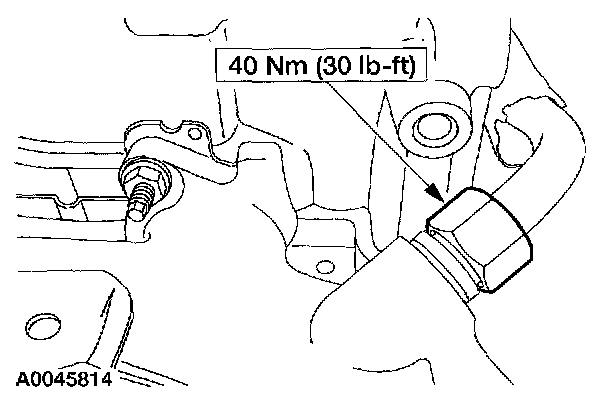

7. Remove the EGR system module tube.

INSTALLATION
1. To install, reverse the removal procedure.
