Evaporative System Service Port: Service and Repair

EVAPORATIVE EMISSION TEST PORT

REMOVAL

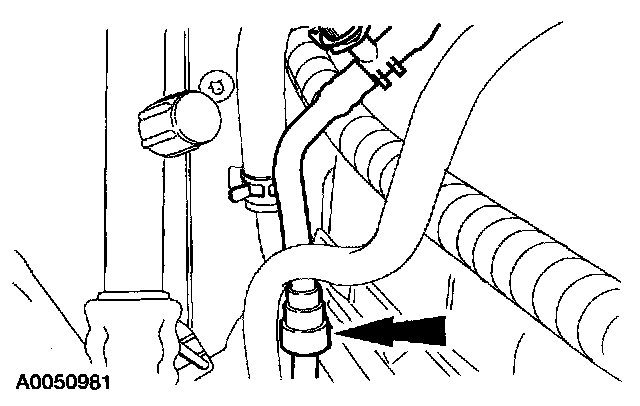

1. Disconnect the evaporative emissions (EVAP) test port at the EVAP canister purge valve.







2. Disconnect and remove the EVAP test port.

INSTALLATION
1. To install, reverse the removal procedure.
- Leak test the system. Evaporative Emission System Leak Test
