Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE

REMOVAL

NOTE: RH shown, LH similar.

1. Disconnect the battery ground cable.

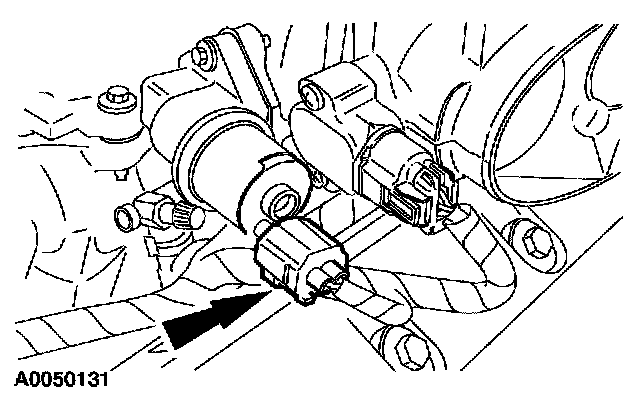

2. Disconnect the idle air control (IAC) sensor electrical connector.

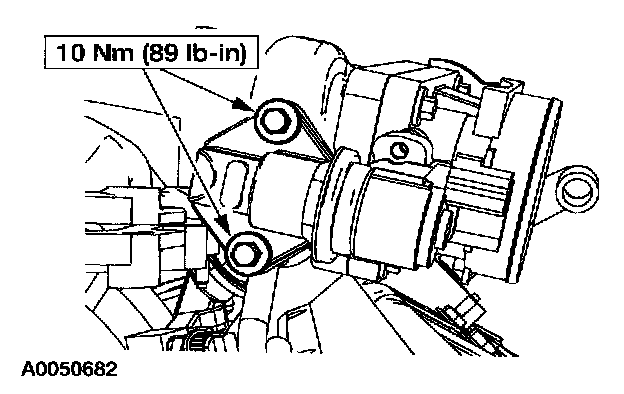

3. Remove the bolts and the IAC sensor.

INSTALLATION
1. To install, reverse the removal procedure.
