FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Marauder V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test Q
Test Q
PINPOINT TEST Q: THE ANTI-LOCK BRAKE SYSTEM (ABS) WARNING INDICATOR IS NEVER ON

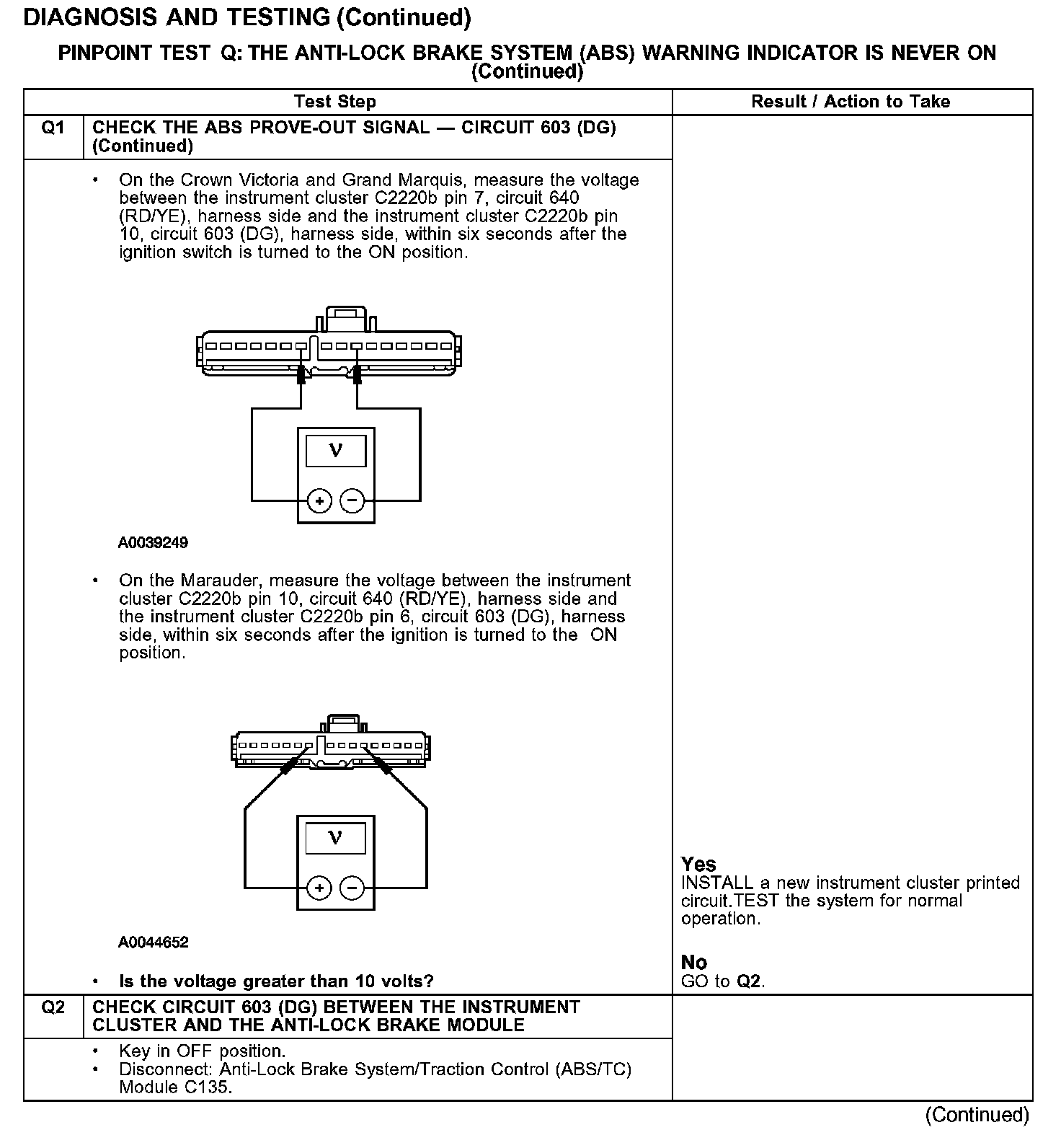

Test Q1:

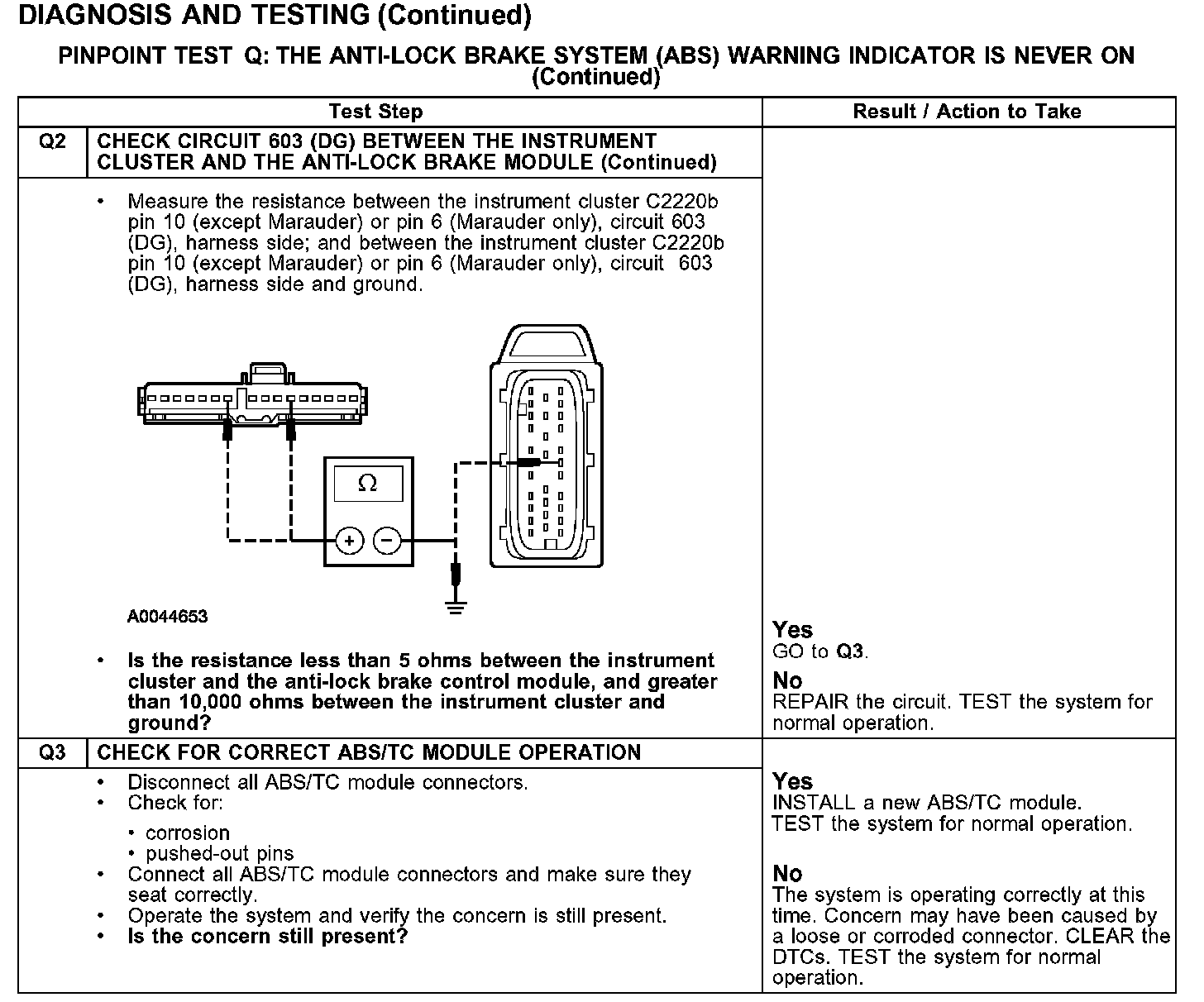

Test Q1-Q2:
Test Q2-Q3:
