Test E

PINPOINT TEST E: THE TACHOMETER IS INOPERATIVE (Marauder ONLY)

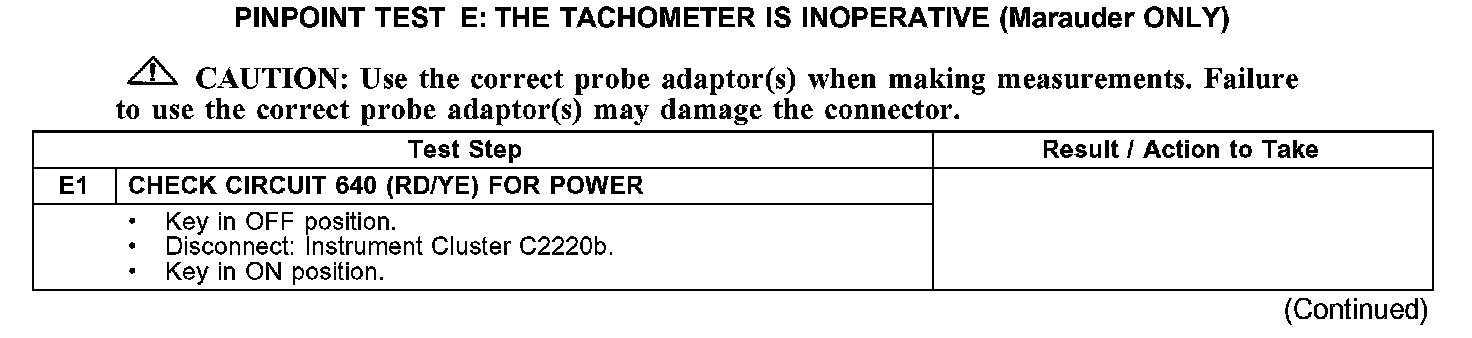

Test E1:

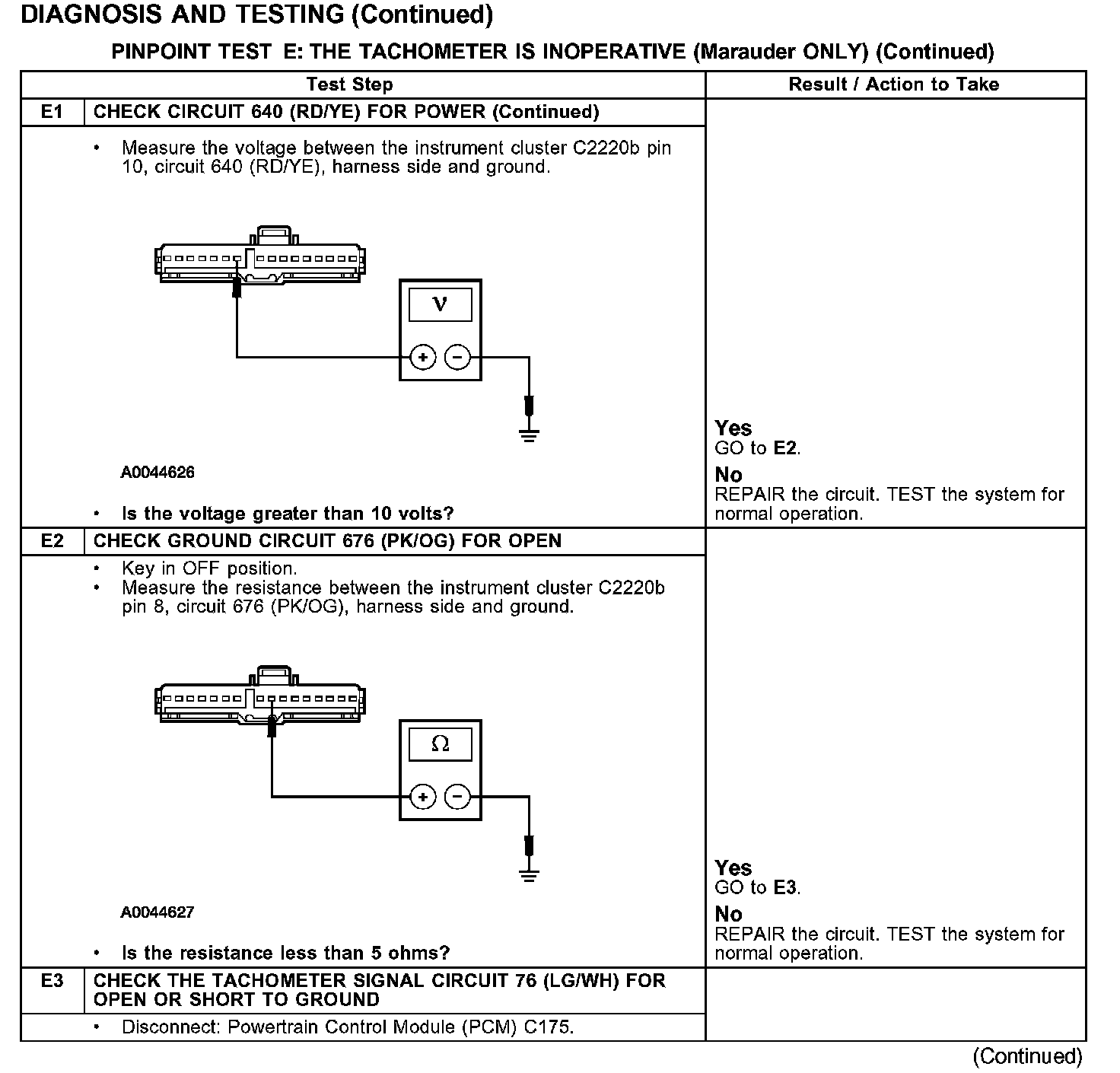

Test E1-E3:

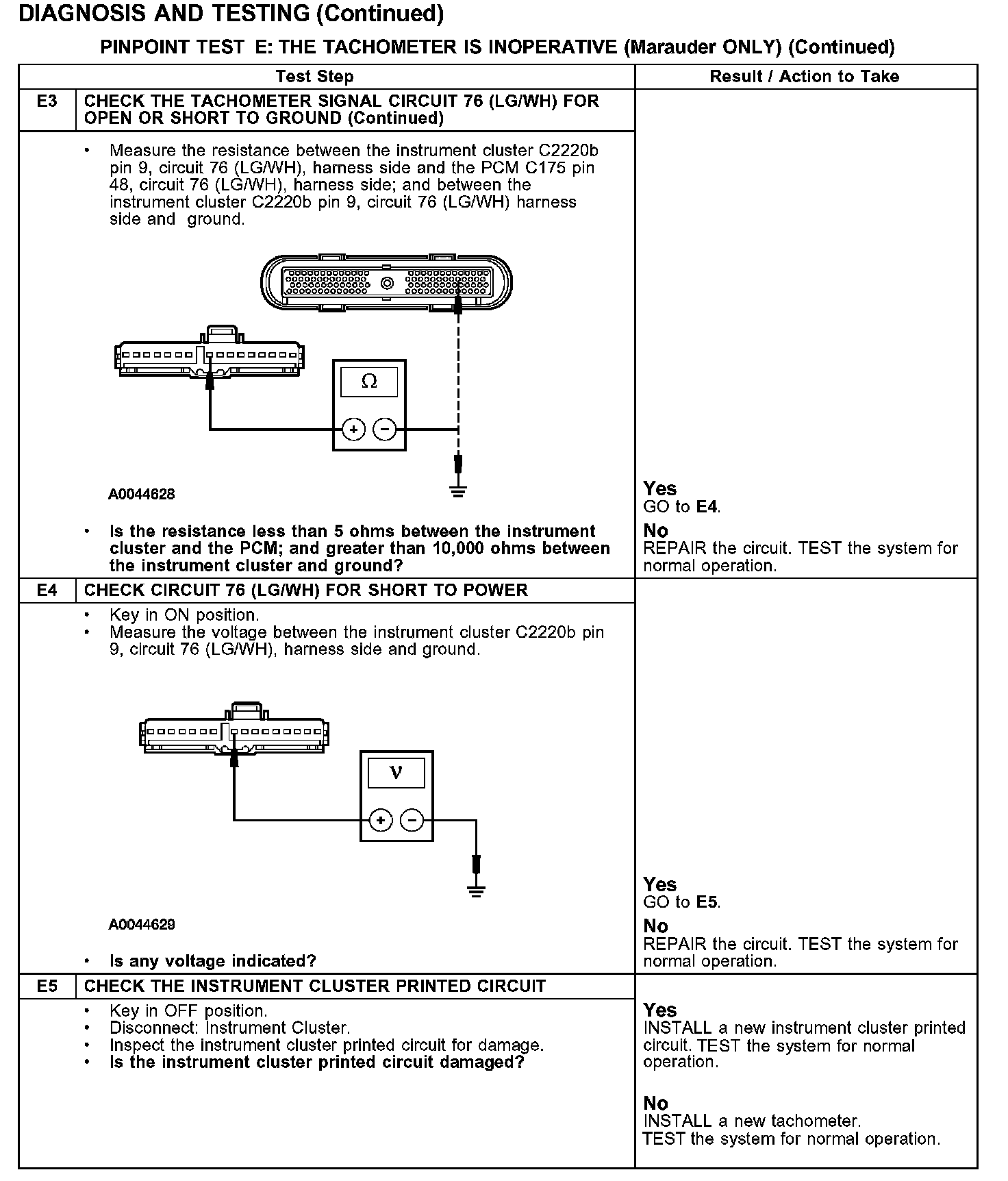

Test E3-E5:
