Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test B
Test B
PINPOINT TEST B: INCORRECT
TEMPERATURE GAUGE
INDICATION

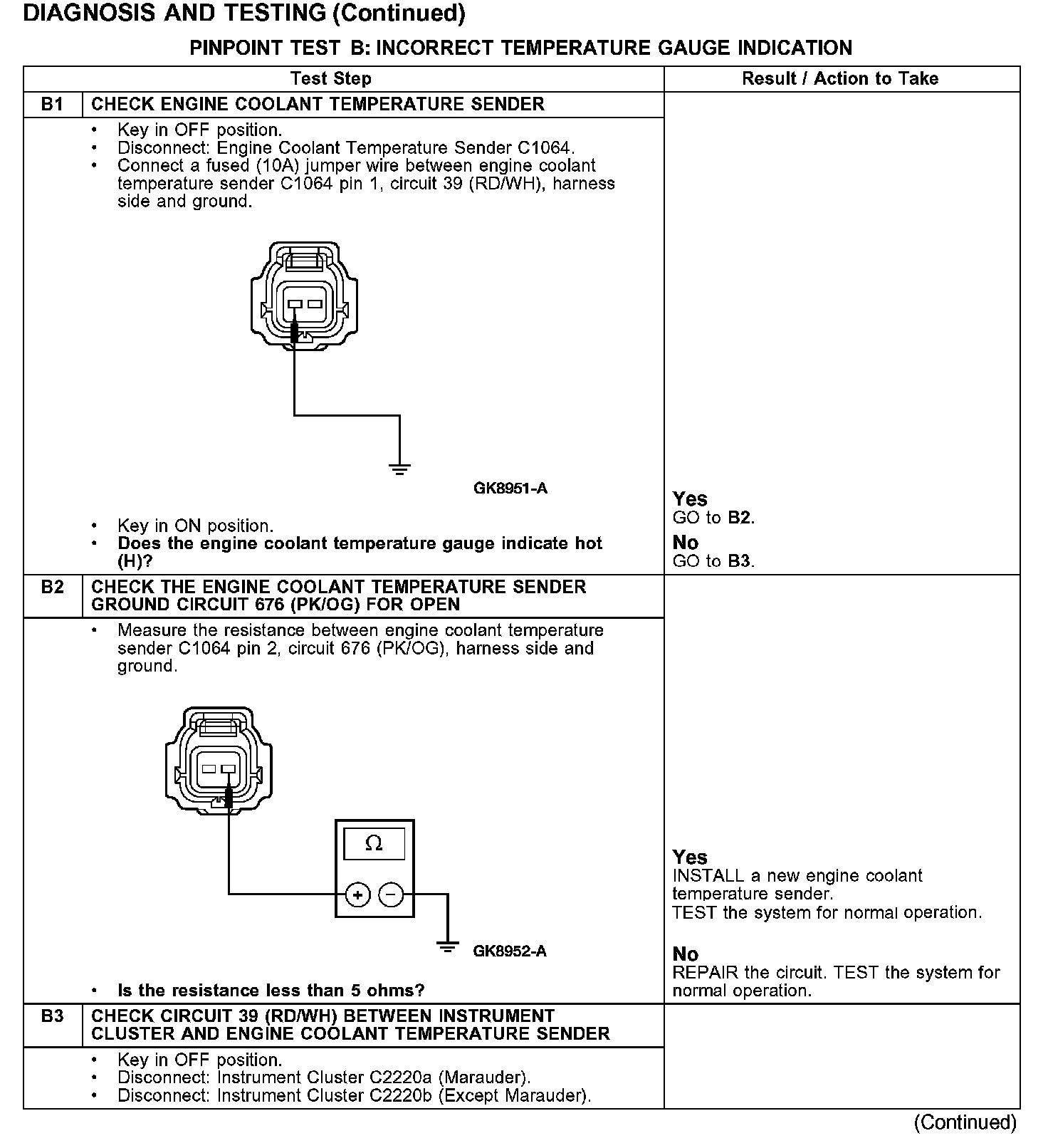

Test B1-B3:

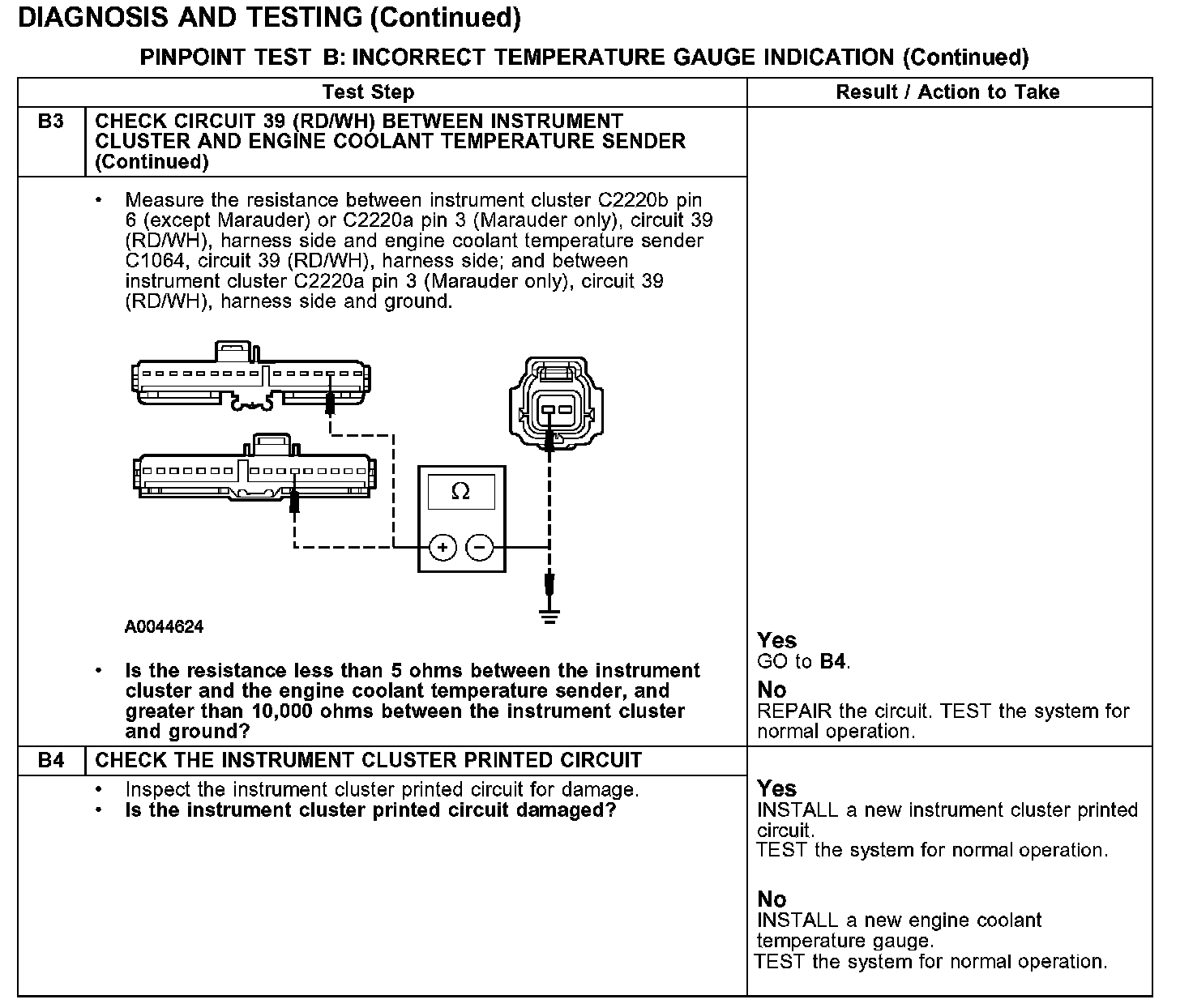

Test B3-B4:
