Warning Indicator Bulb

WARNING INDICATOR BULB

REMOVAL
1. Remove the instrument cluster.







2. NOTE: The Crown Victoria and Grand Marquis cluster is shown. The Marauder is similar.

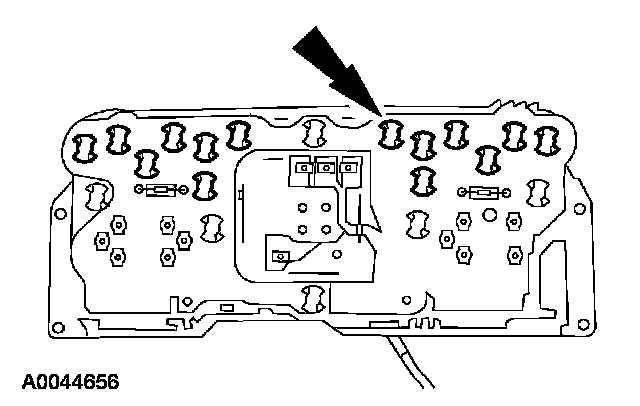

Turn the indicator or warning bulb one quarter turn counterclockwise and remove the bulb.

INSTALLATION
1. To install, reverse the removal procedure.
