Home >> Mercury >> 2004 >> Marauder V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE

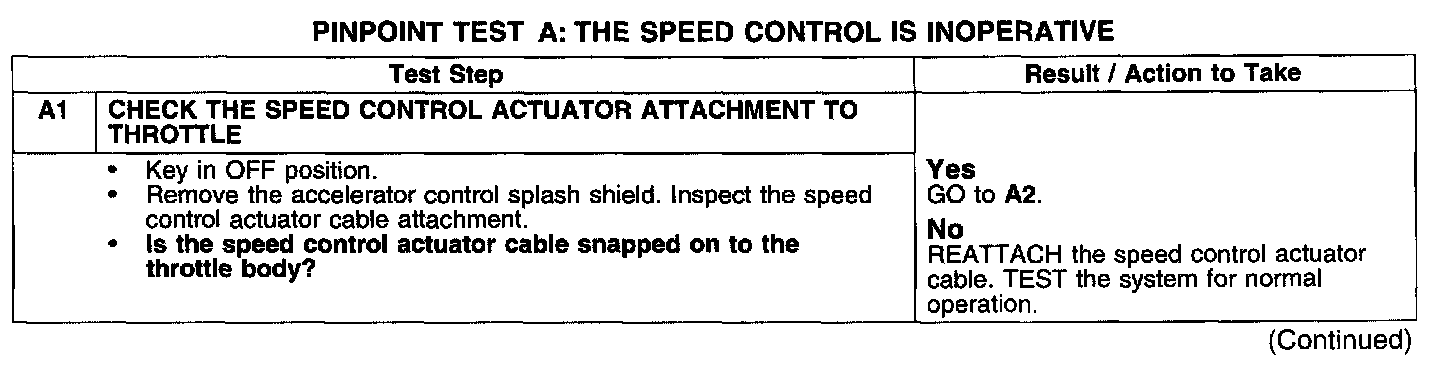

Test A1:

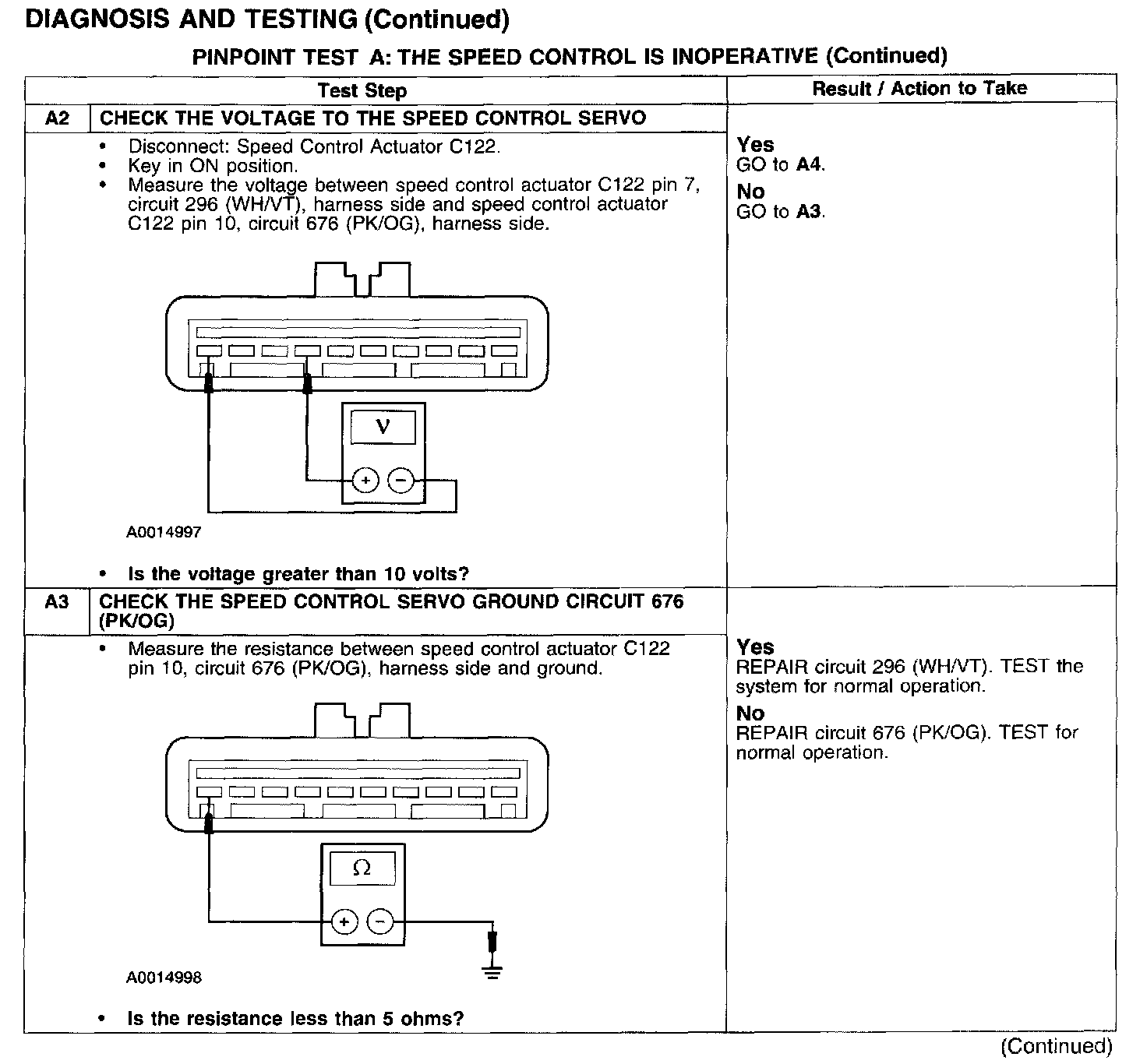

Test A2-A3:

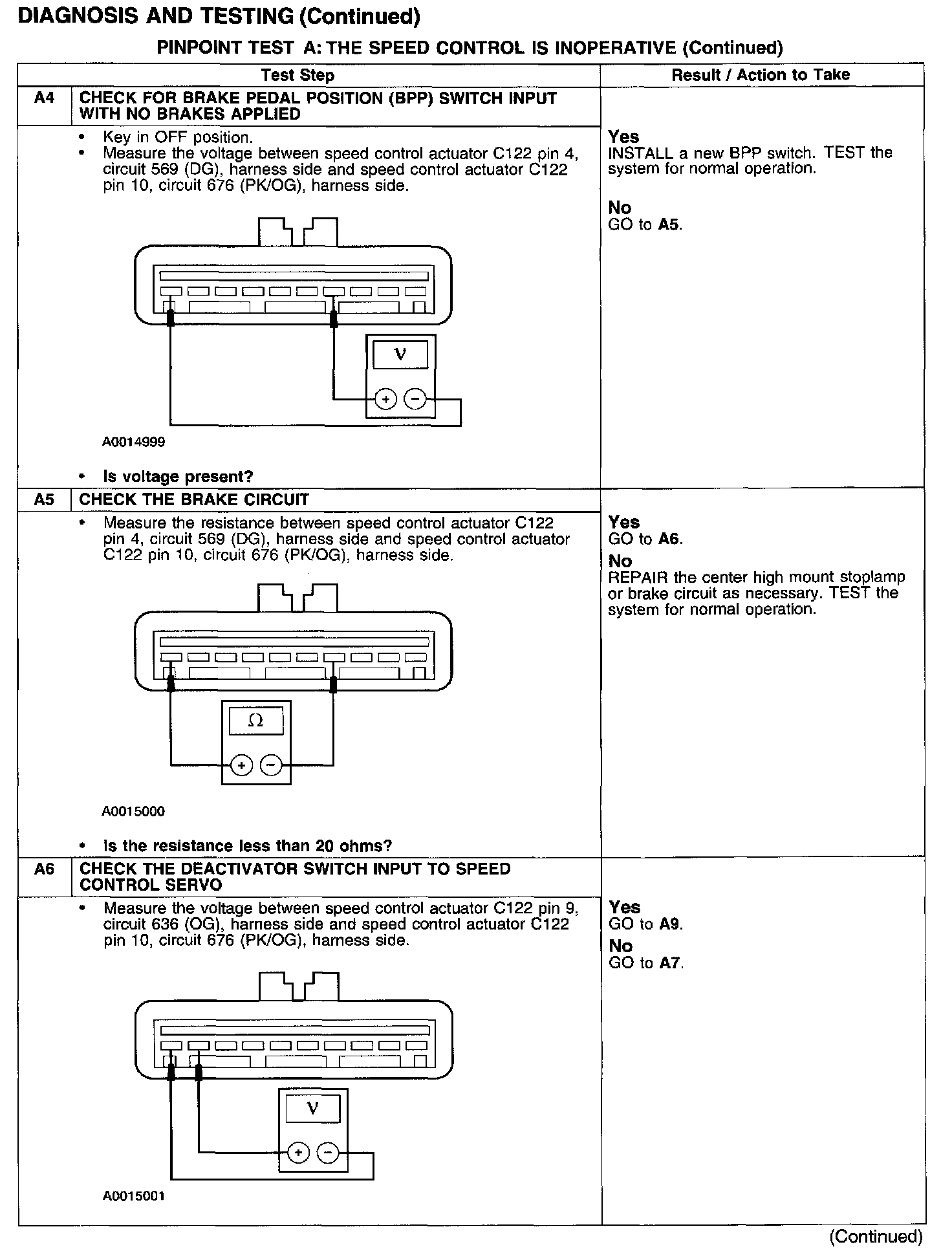

Test A4-A6:

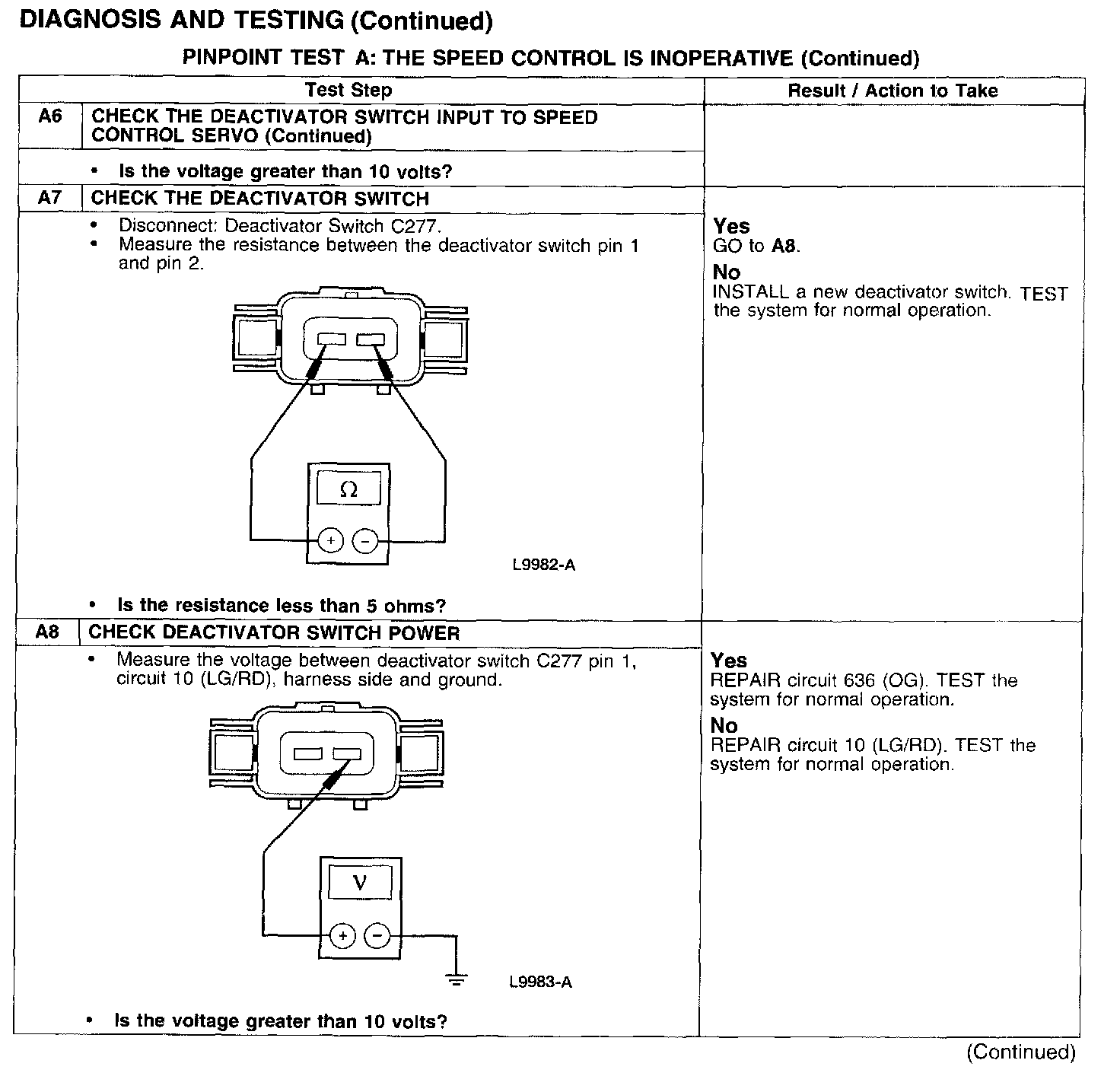

Test A6-A8:

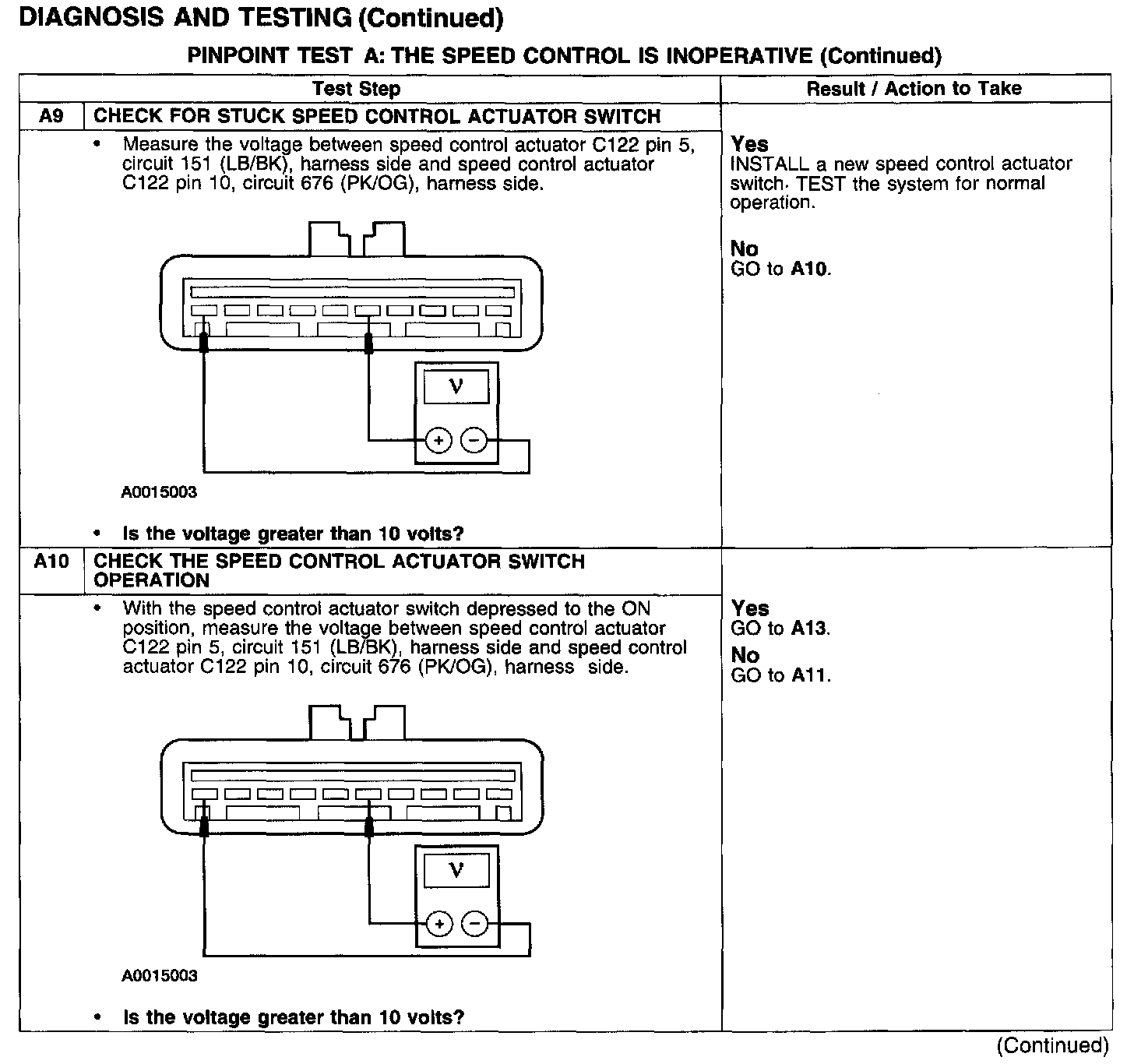

Test A9-A10:

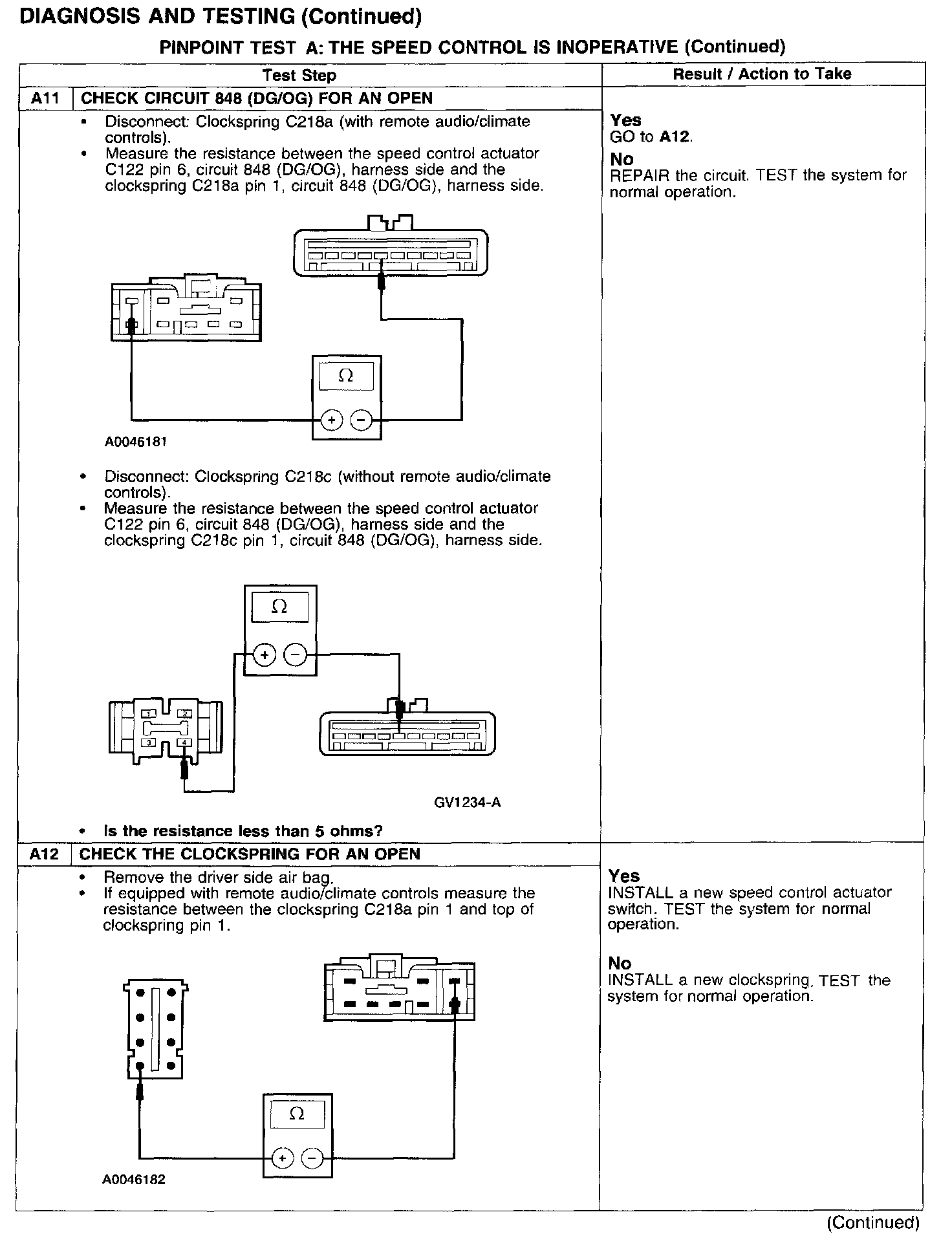

Test A11-A12:

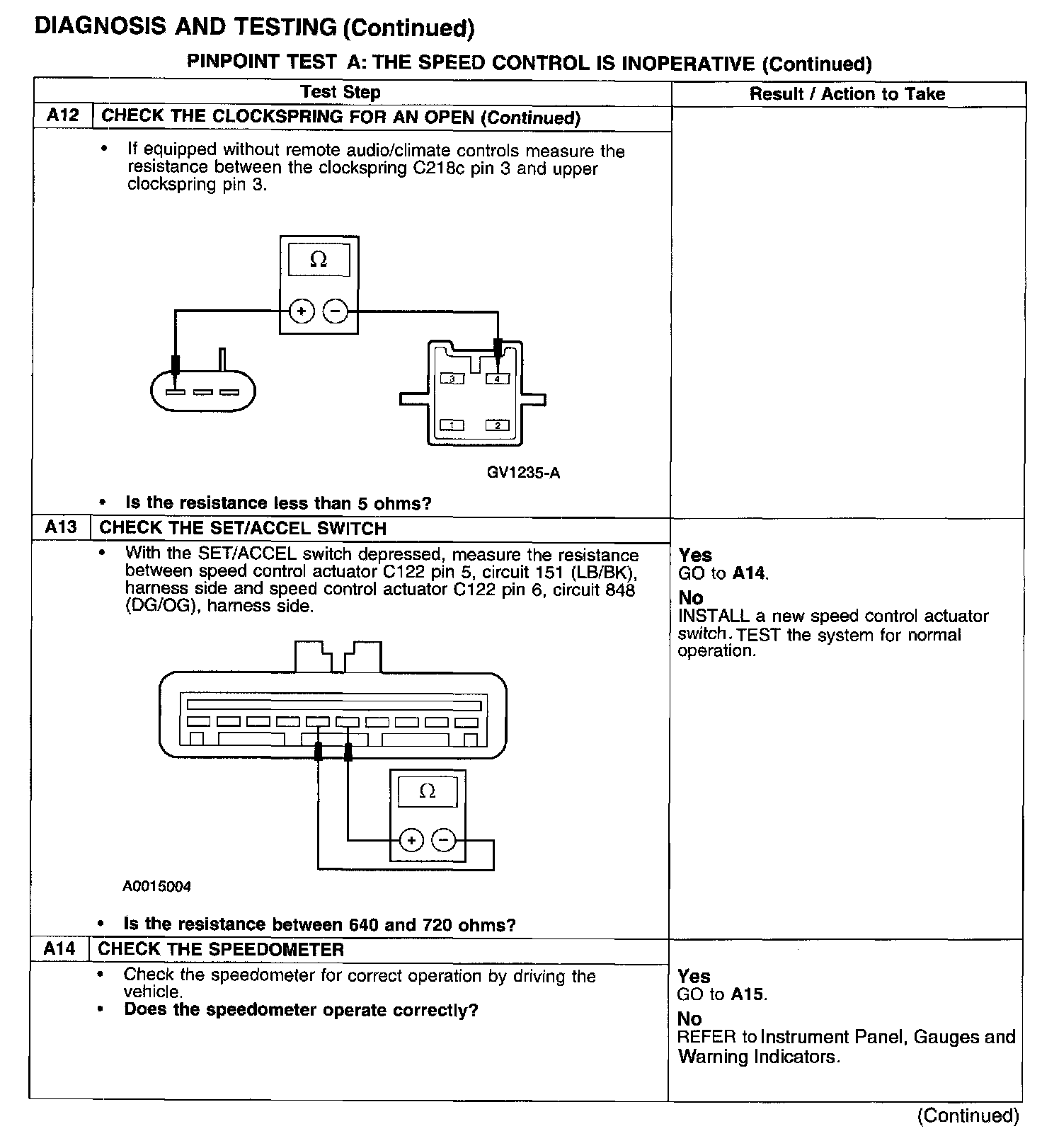

Test A12-A14:

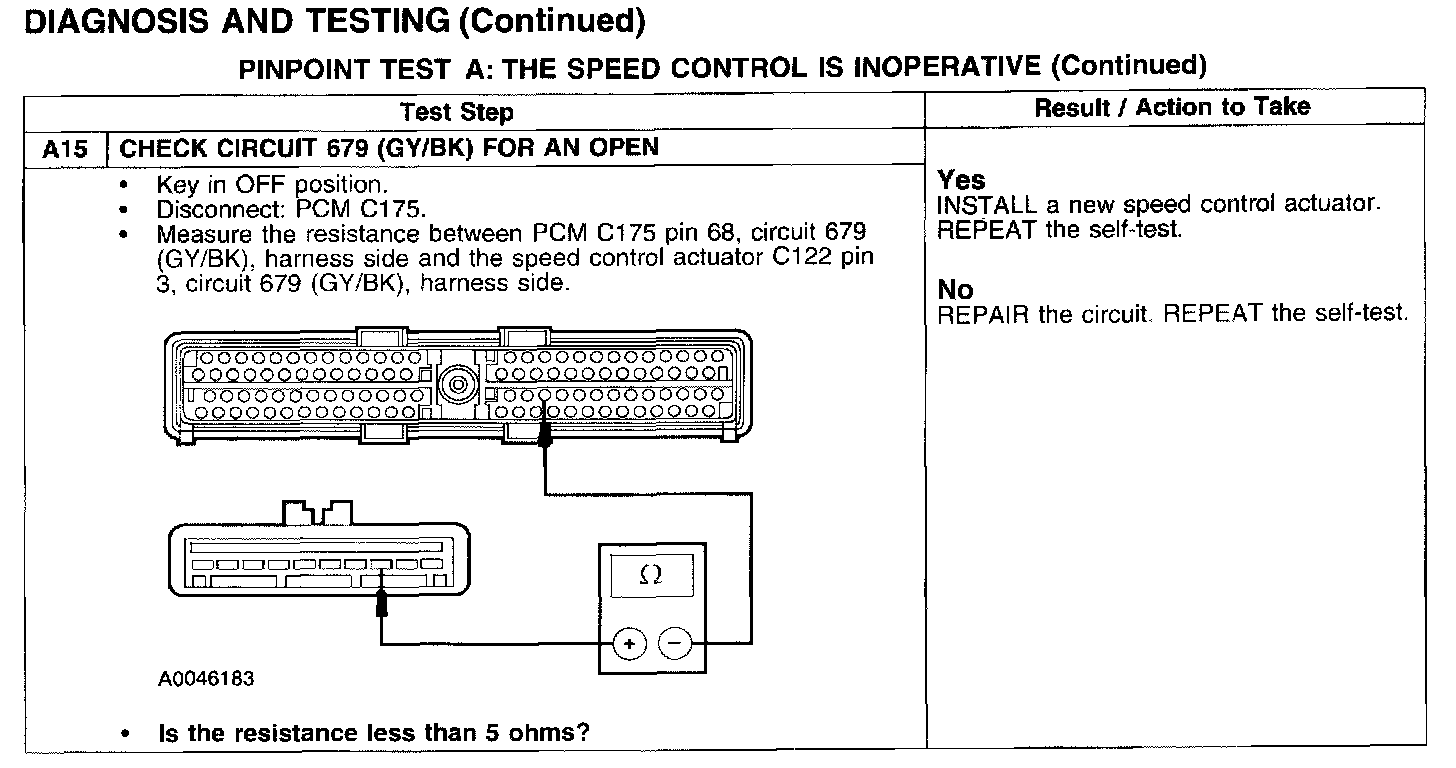

Test A15:
