FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D
Test D
PINPOINT TEST D: THE INTERMITTENT WIPER SPEED DOES NOT OPERATE CORRECTLY (HIGH/LOW SPEEDS OK)

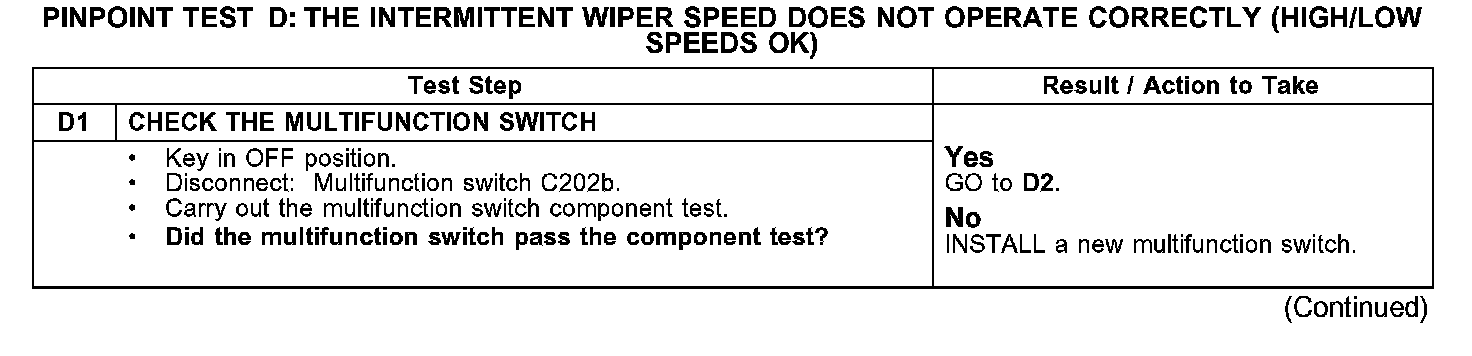

Test D1:

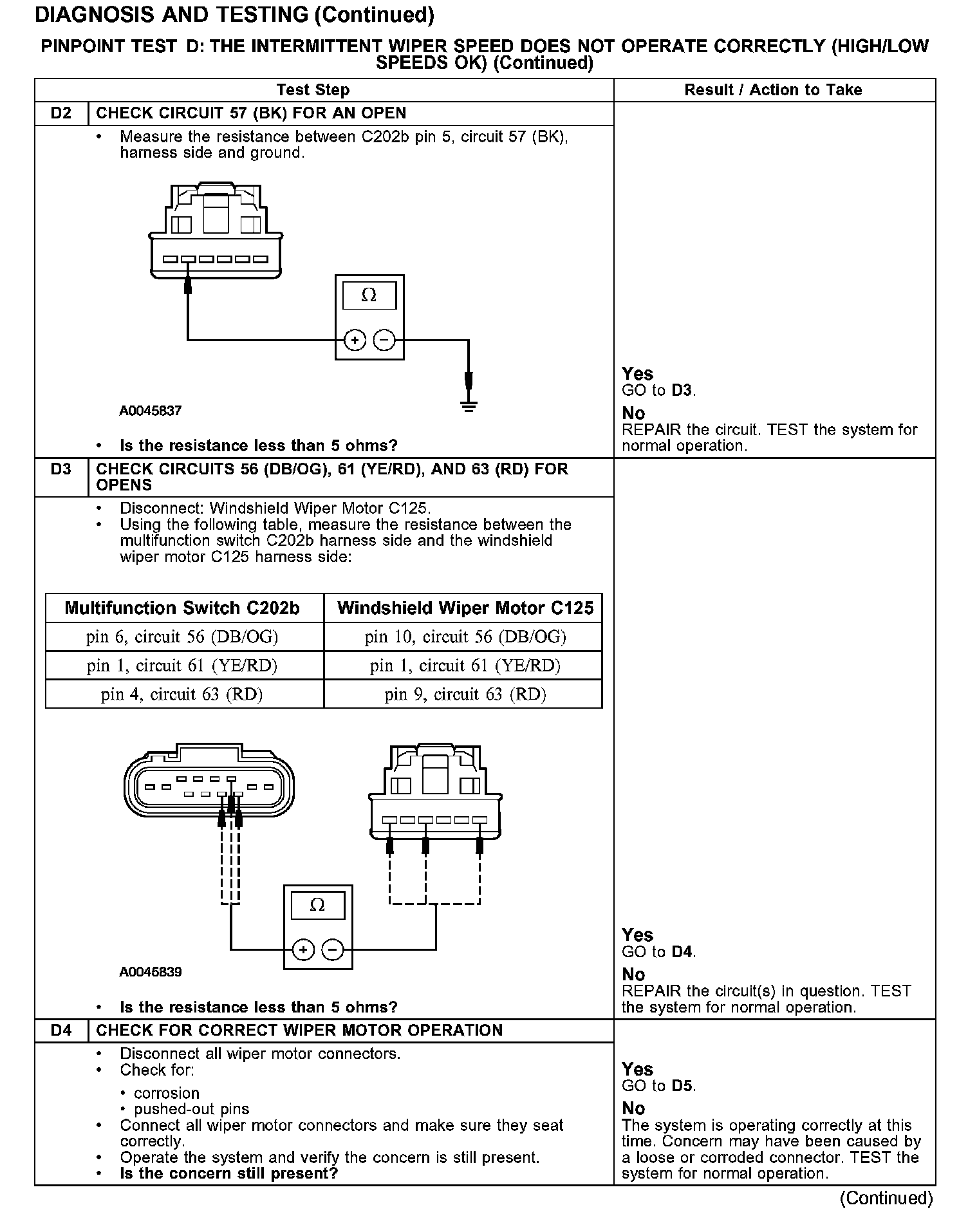

Test D2-D4:

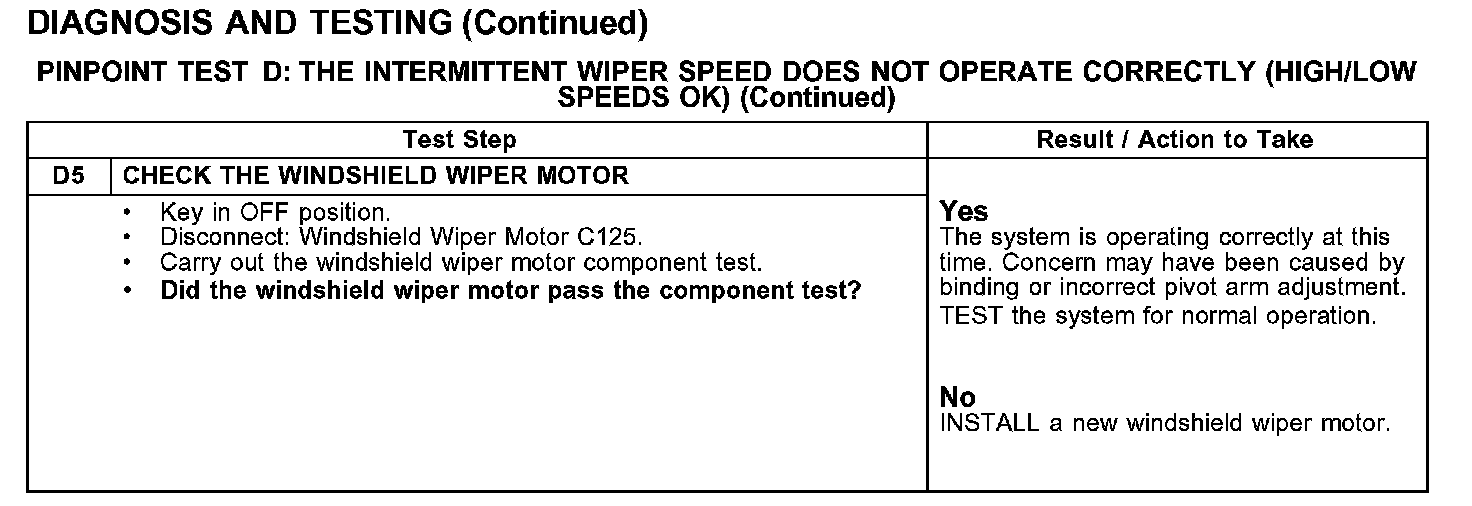

Test D5:
