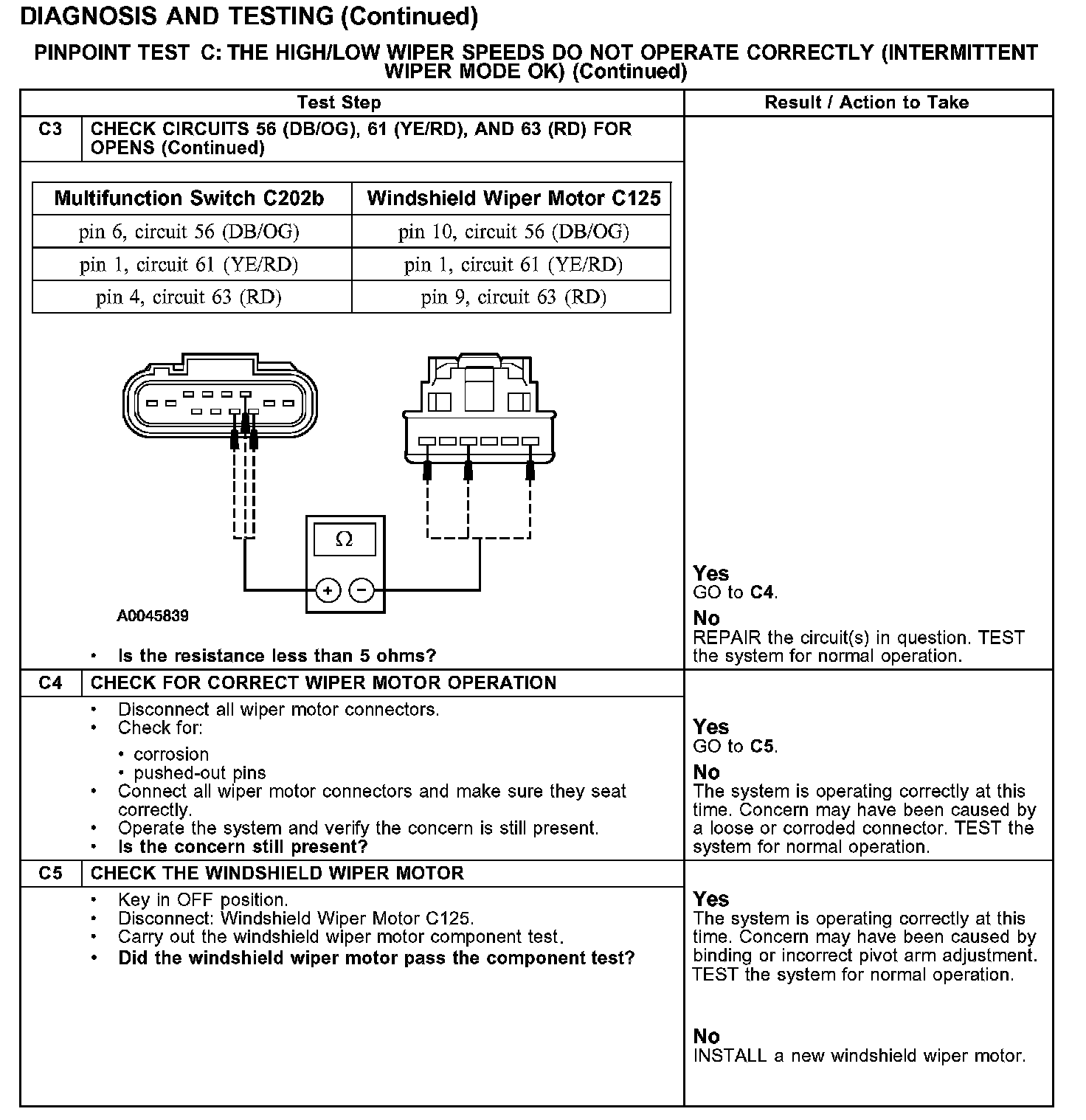

PINPOINT TEST C: THE HIGH/LOW WIPER SPEEDS DO NOT OPERATE CORRECTLY (INTERMITTENT WIPER MODE OK)
Test C1-C3:
Test C3-C5:
