Rear Door Window Motor: Service and Repair

REAR DOOR WINDOW REGULATOR MOTOR

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Position the rear door window glass in the full up position and secure with tape.
2. Disconnect the battery.
3. Remove the rear door trim panel.

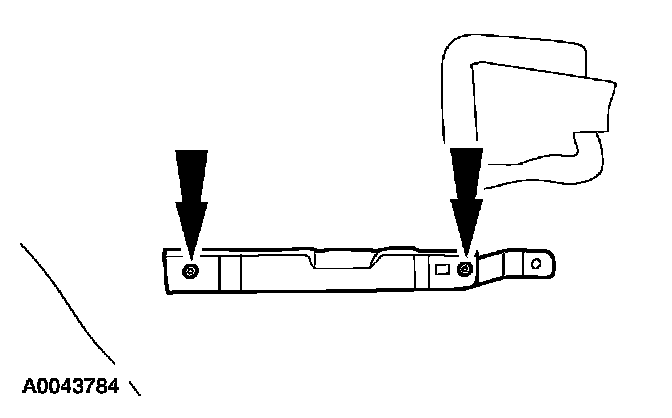

4. Remove the rivets and the pull handle bracket.
5. Position the water shield aside.

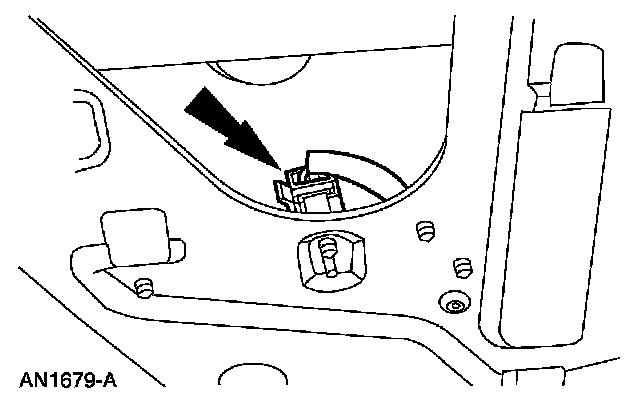

6. Disconnect the electrical connector.

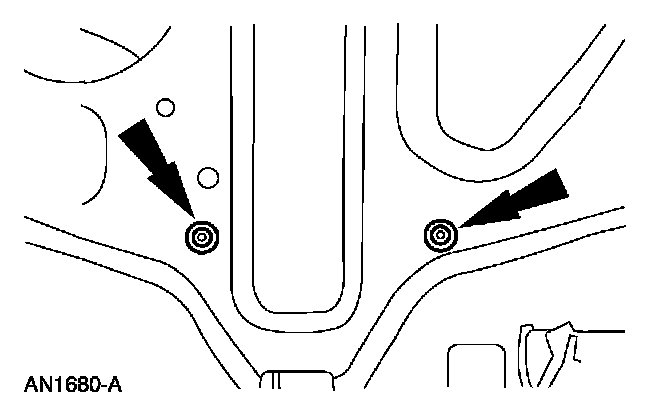

7. NOTE: Use care not to enlarge the sheet metal holes in the door inner panel.

Remove the rivets.







8. NOTE: Working through the access hole, remove the window regulator motor bracket from the inner panel and slide the motor back to gain access to the screws.

Remove the rear door window regulator screws.

9. Separate the window regulator motor from the window regulator and remove it from the rear door.

INSTALLATION
1. To install, reverse the removal procedure.
- Use the special tool to install the new rivets.
