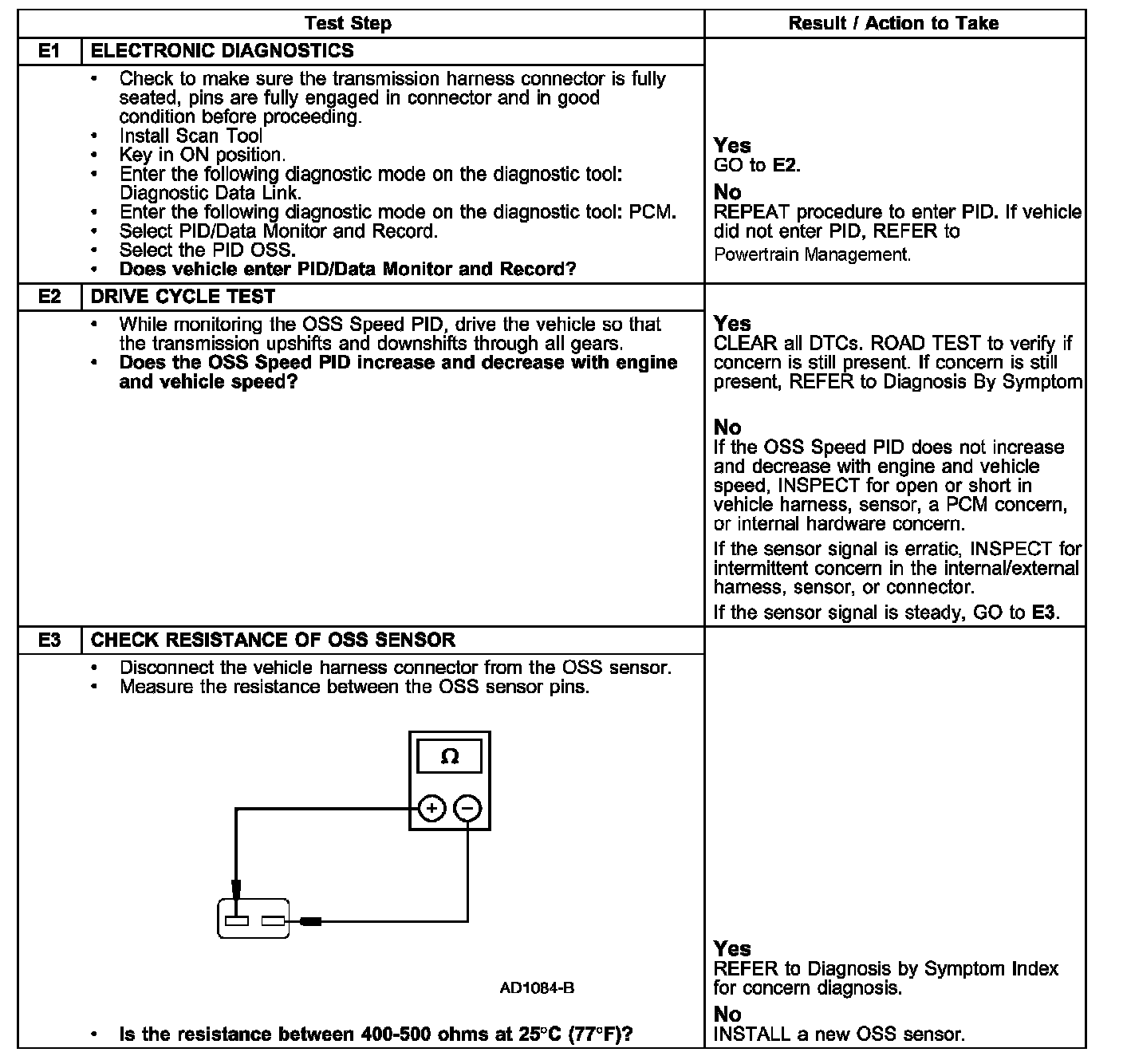

PINPOINT TEST E: OUTPUT SHAFT SPEED (OSS) SENSORS
Tests E1-E3:
NOTE:
Refer to the Output Shaft Speed
(OSS)
Sensor Harness Connector illustration preceding these pinpoint tests.
