Test J
Test J

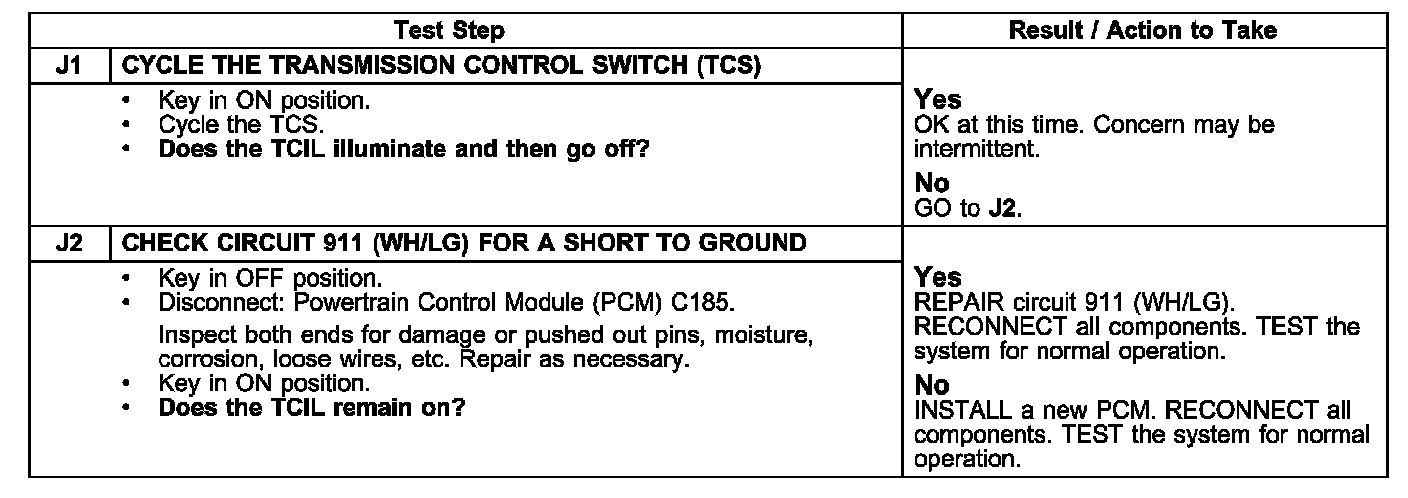

PINPOINT TEST J: THE TRANSMISSION CONTROL INDICATOR LAMP (TCIL) IS ILLUMINATED CONTINUOUSLY-FLOOR SHIFT
Tests J1-J2:
