Test F
Test F
PINPOINT TEST F: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY-FLOOR SHIFT

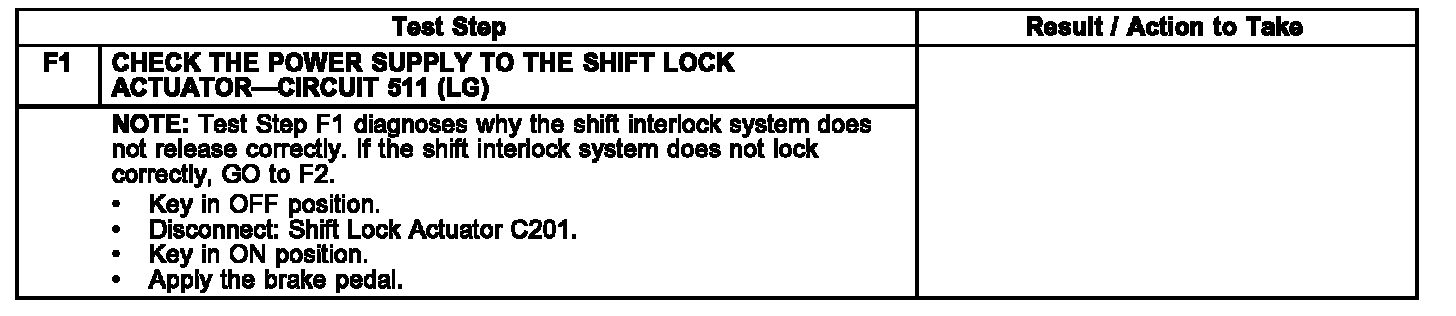

Test F1 (continues):

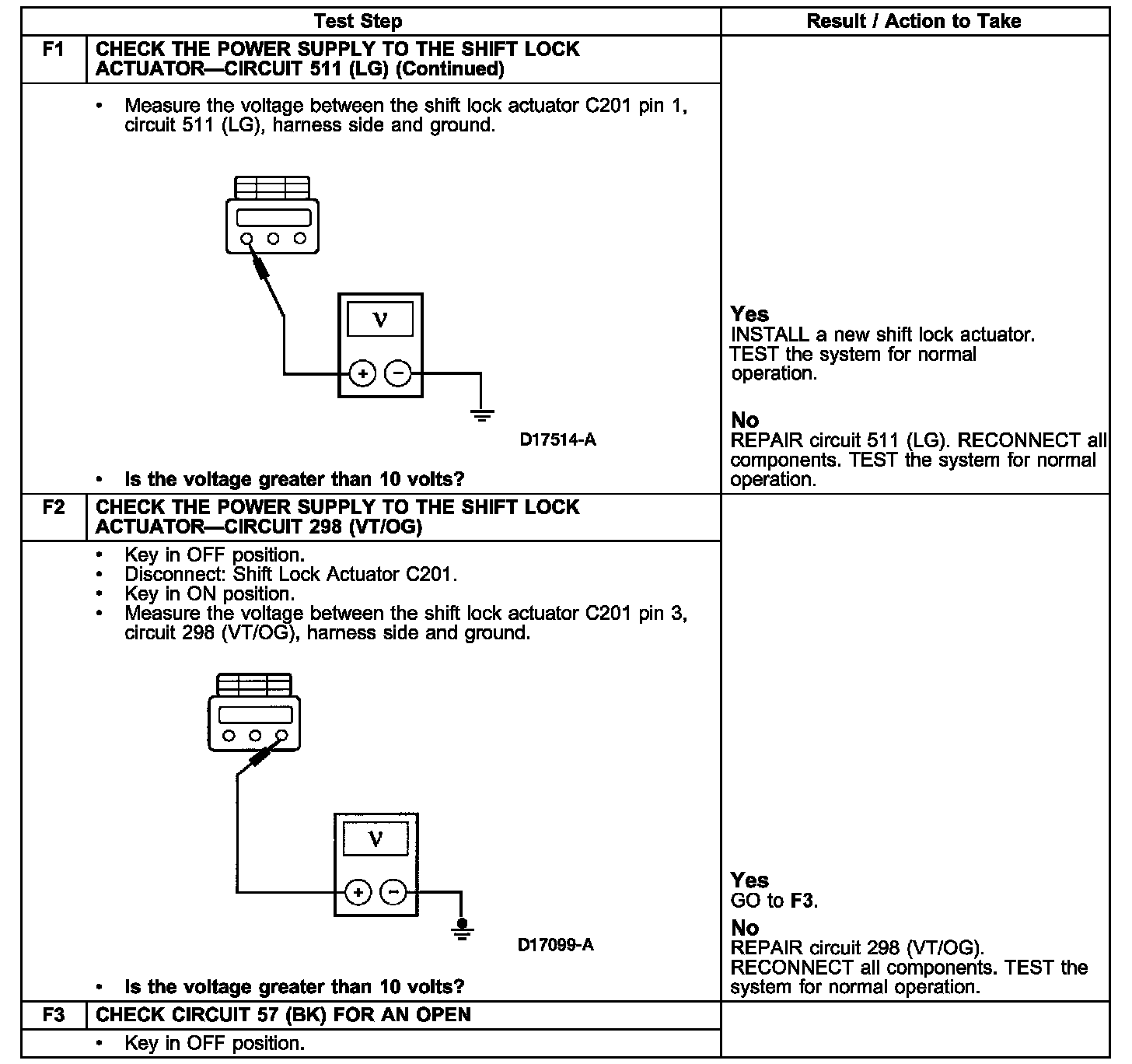

Tests F1-F3 (continues):

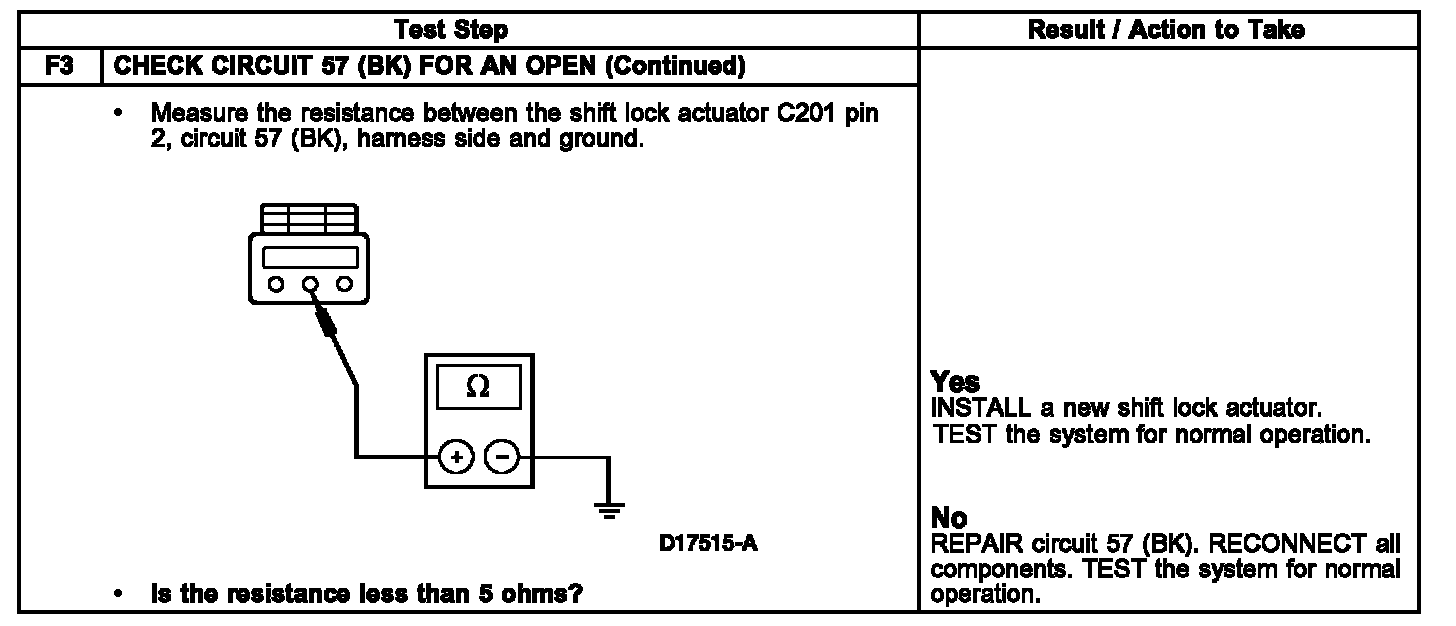

Test F3:
