Test D
Test D
PINPOINT TEST D: THE TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY

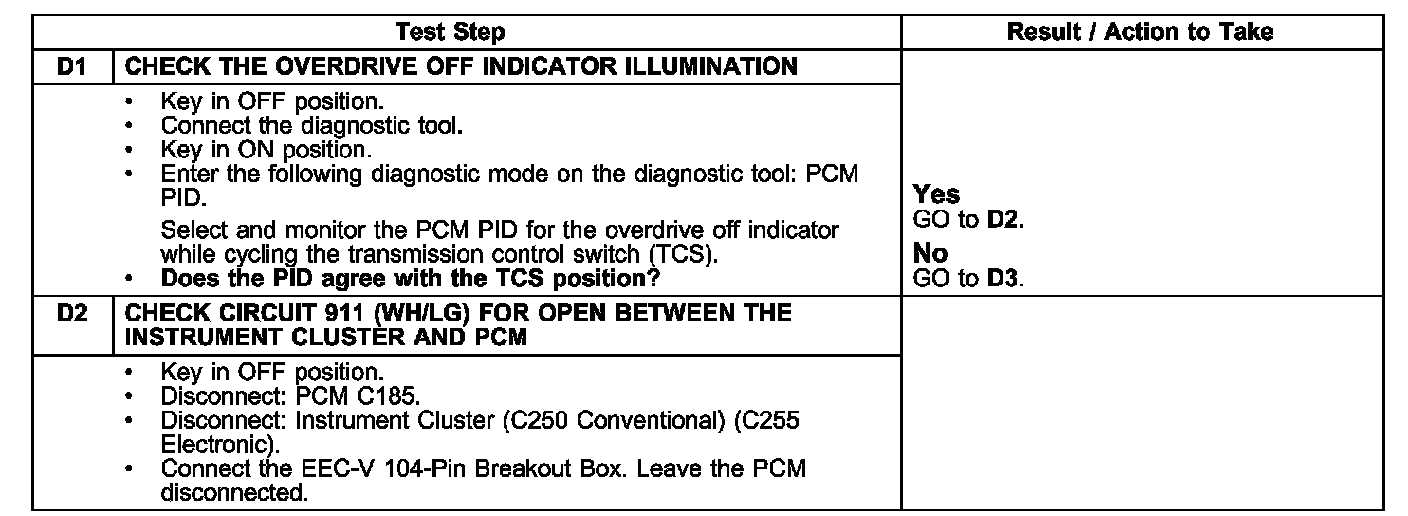

Tests D1-D2 (continues):

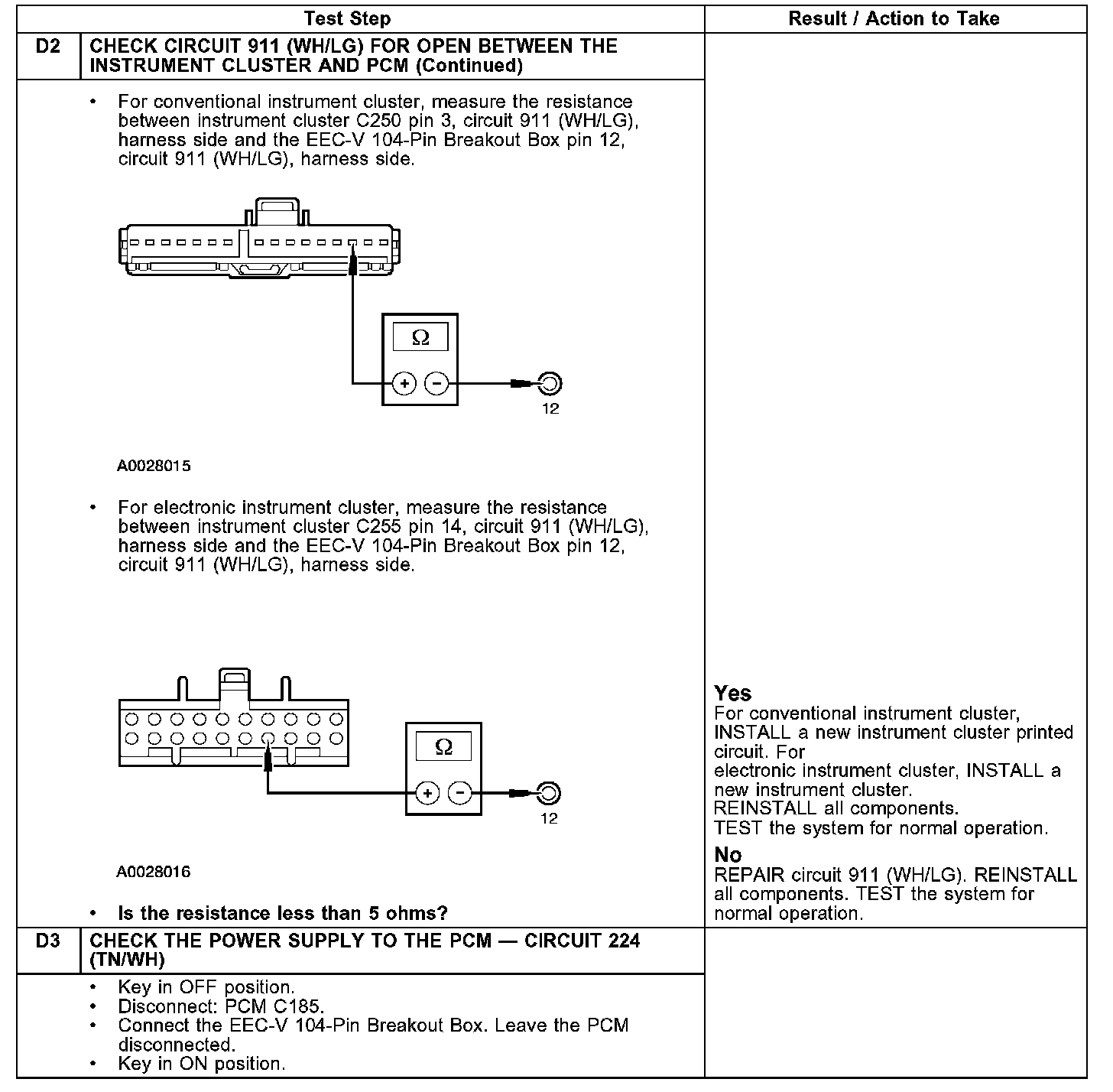

Tests D2-D3 (continues):

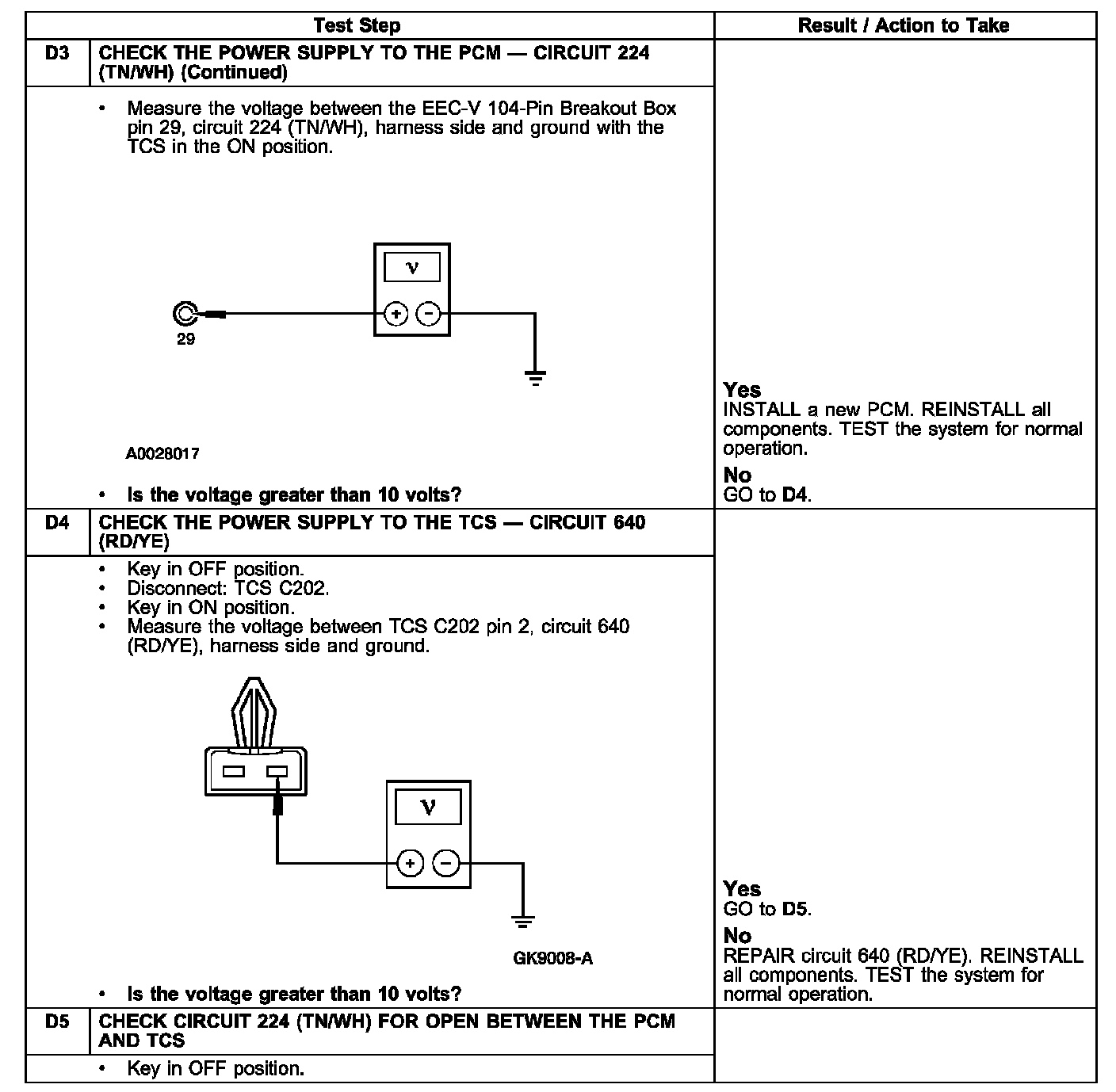

Tests D3-D5 (continues):

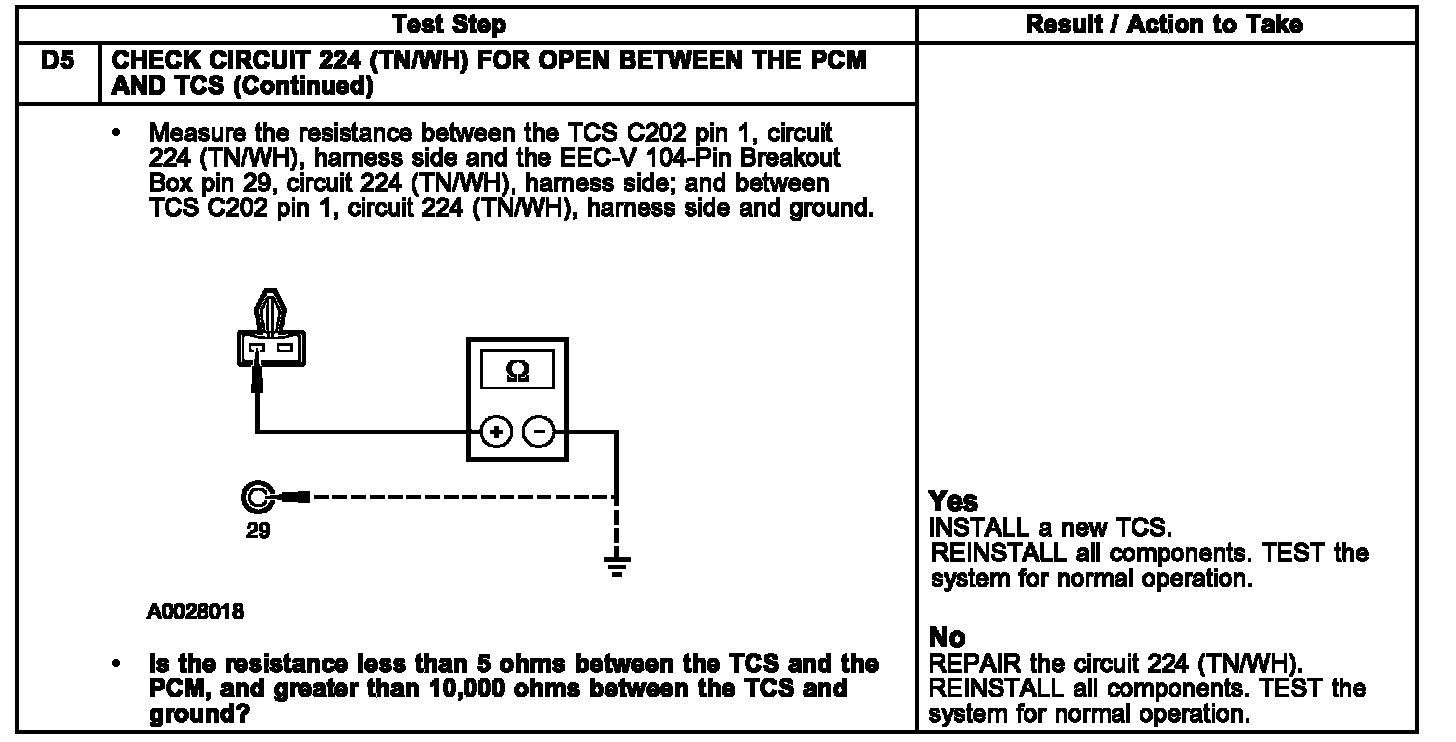

Test D5:
