Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart

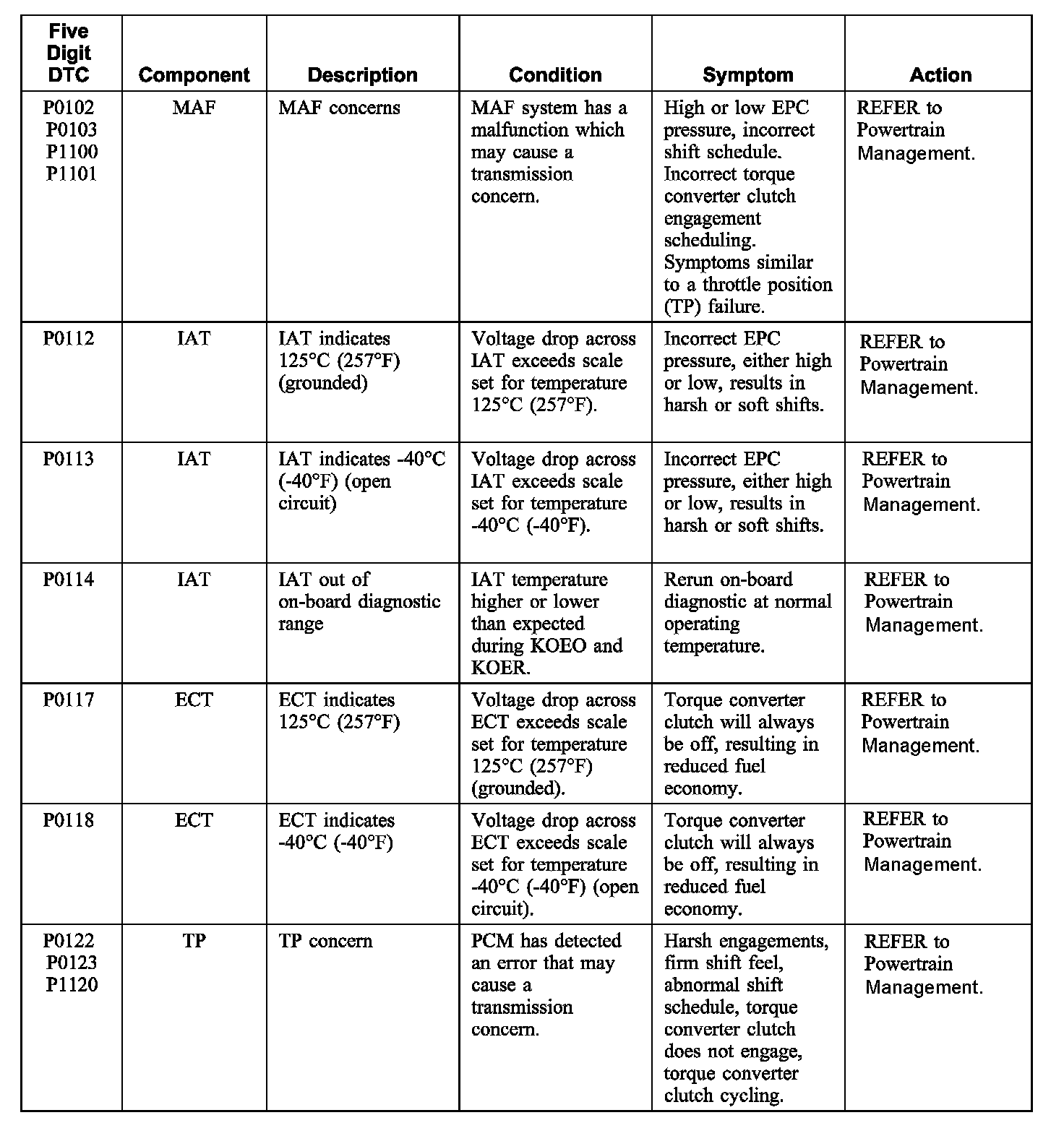

P0102-P1120:

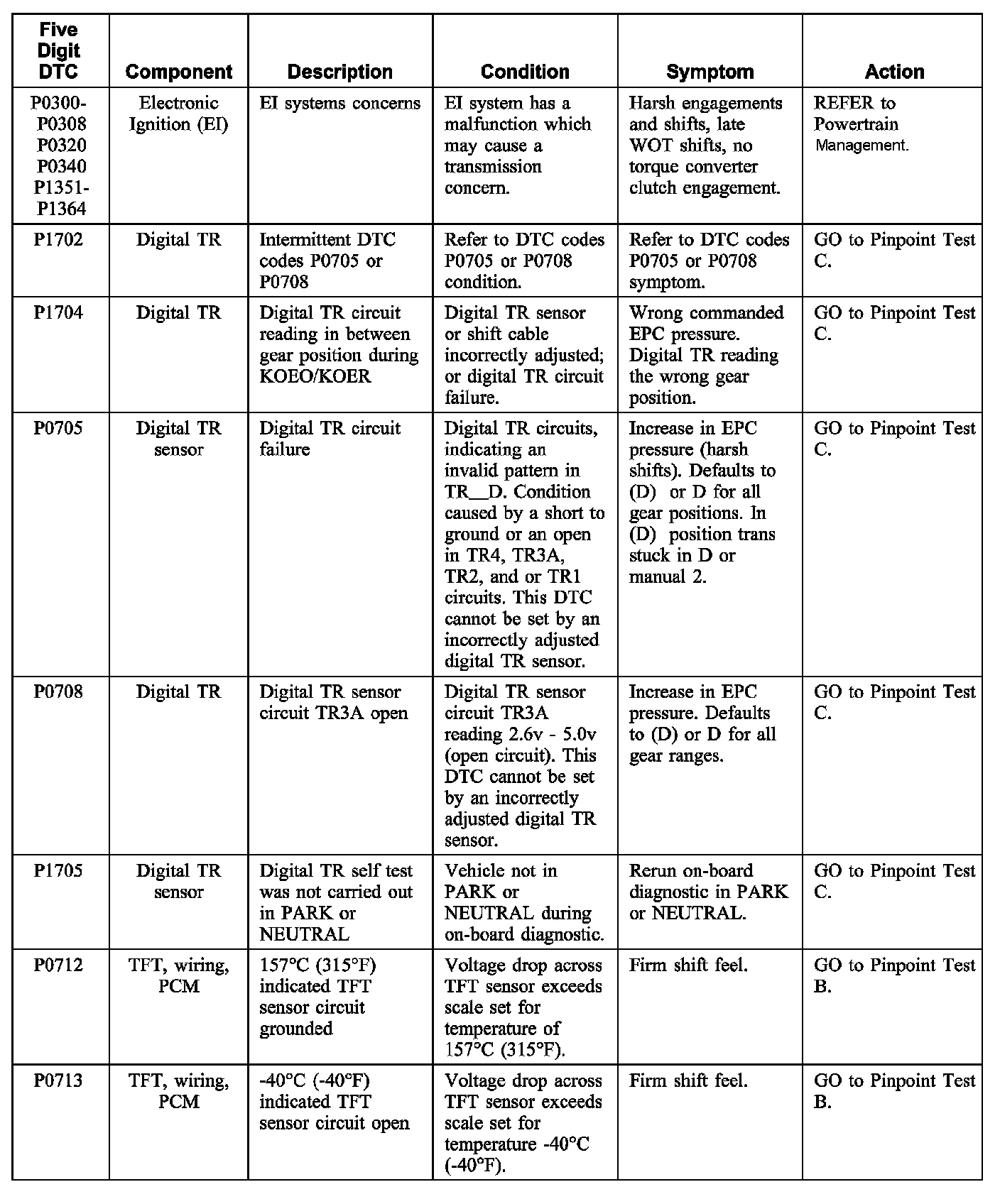

P0300-P1708:

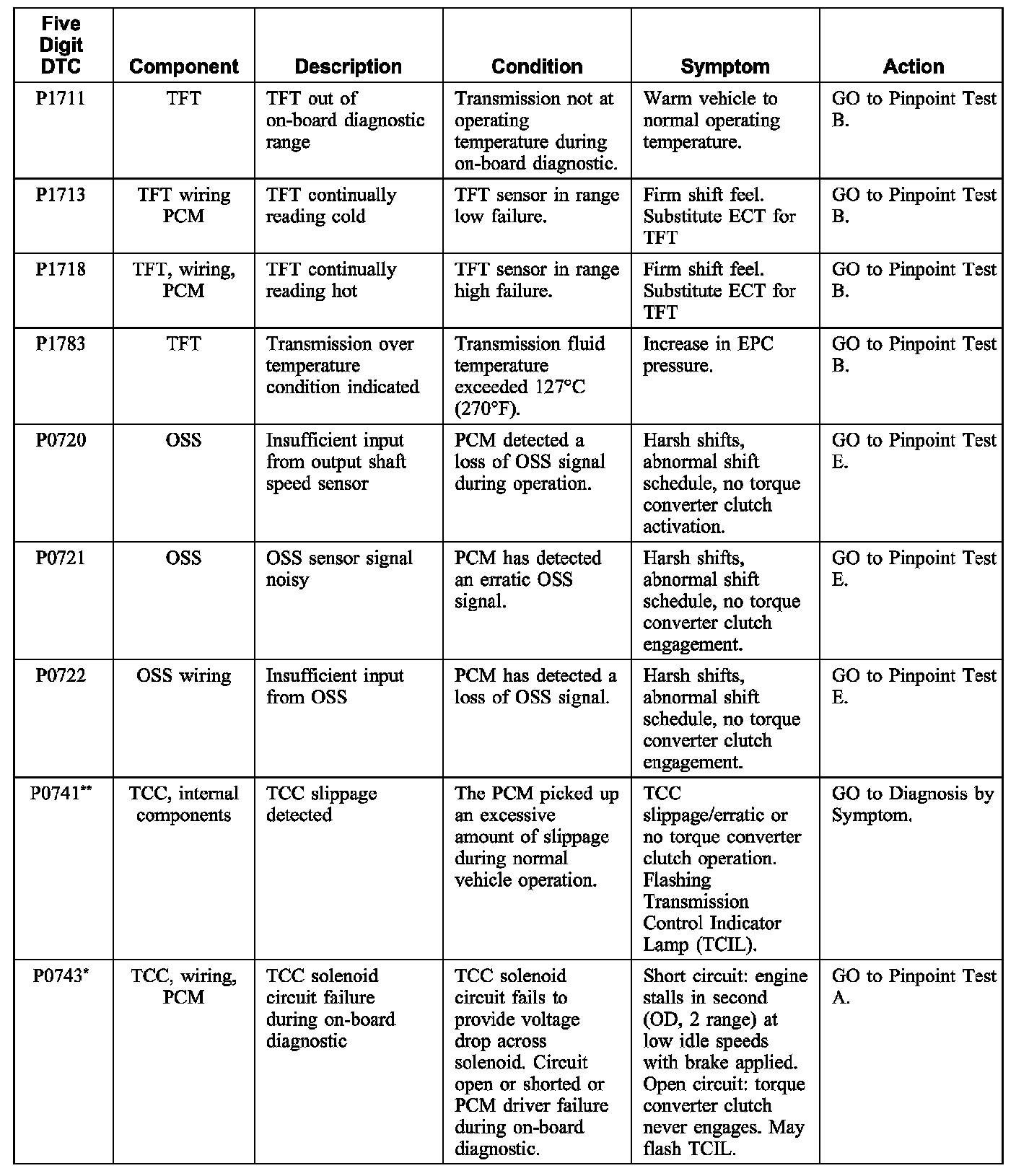

P0720-P1783:

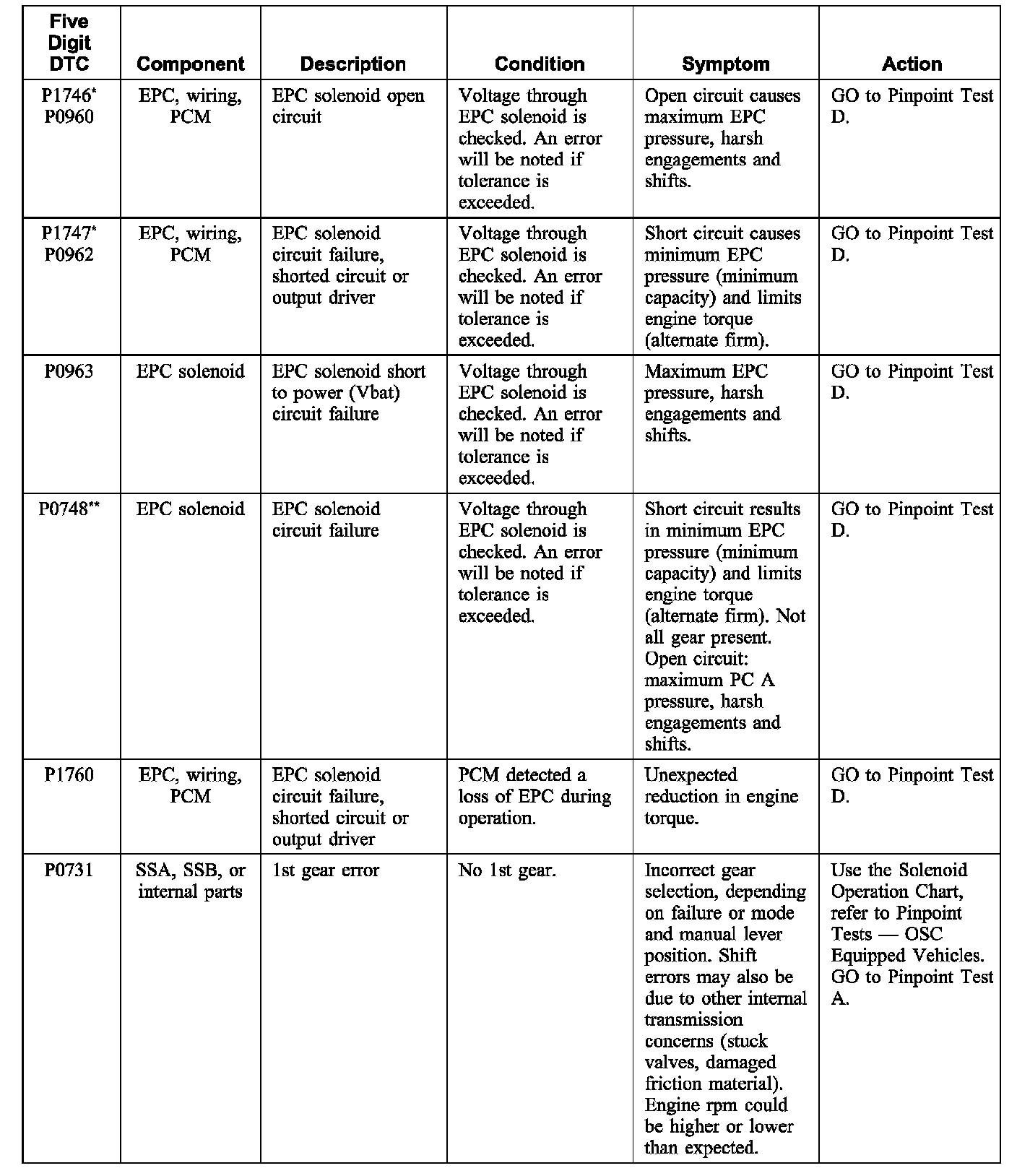

P0731-P1760:

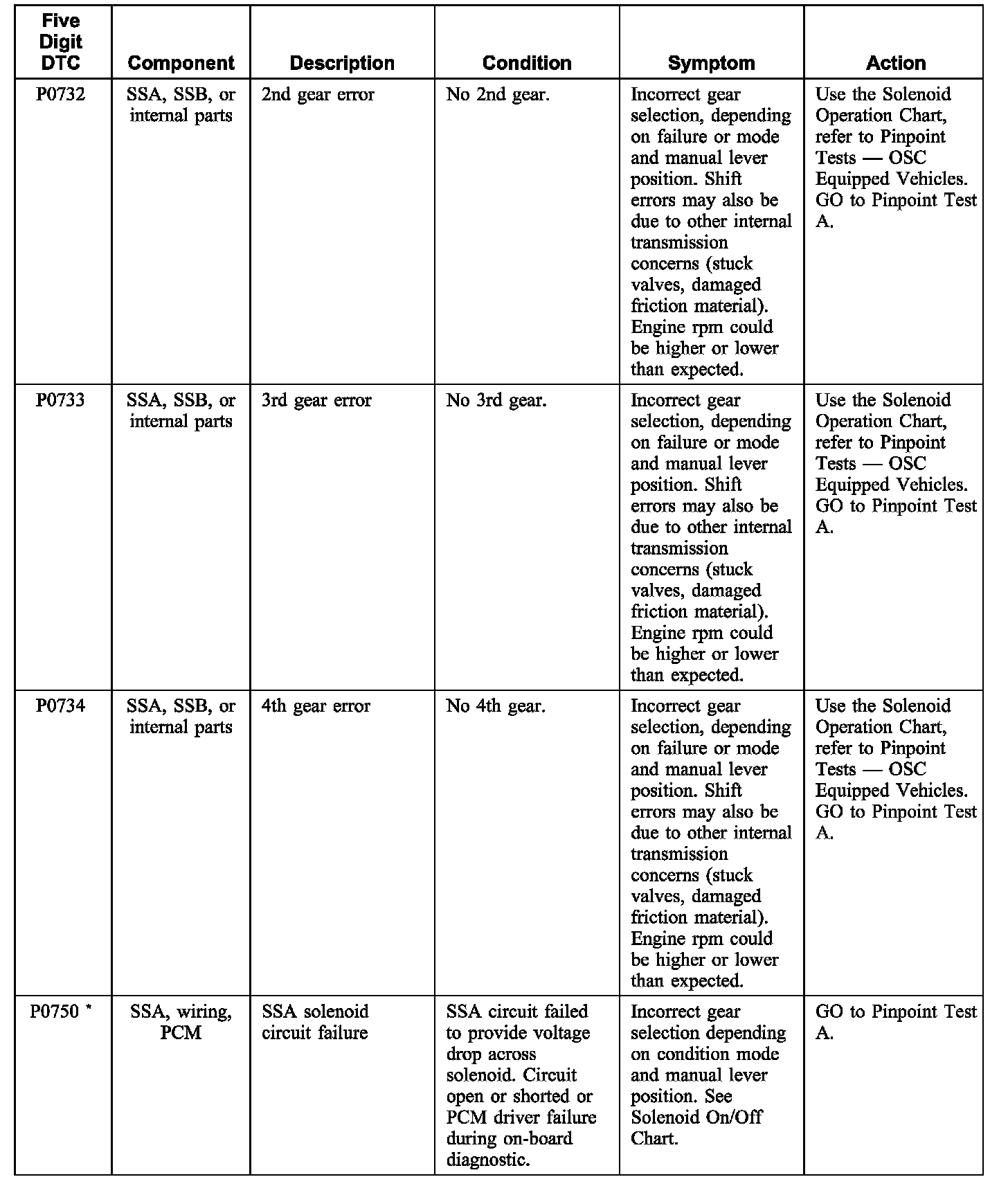

P0732-P0750:

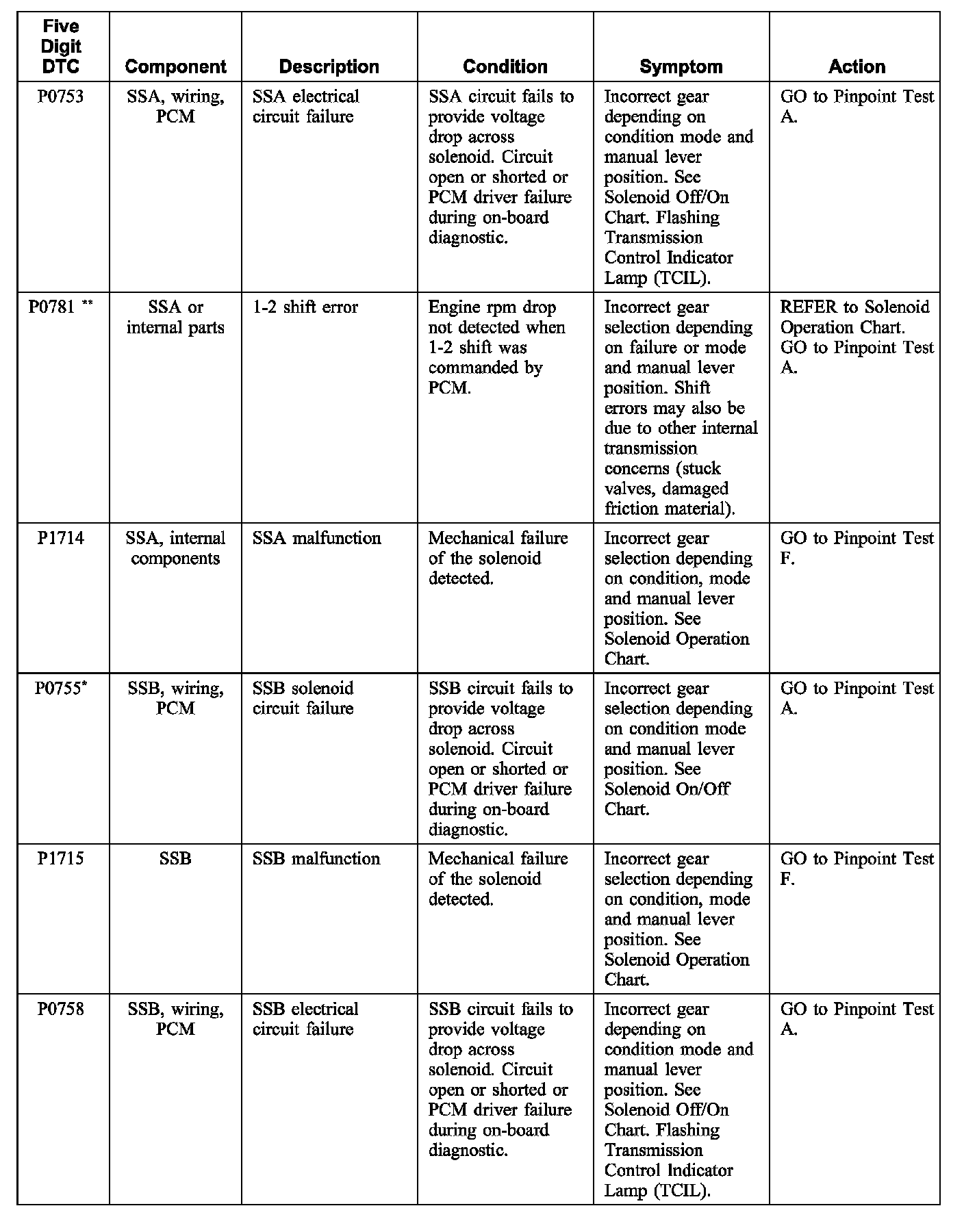

P0753-P1715:

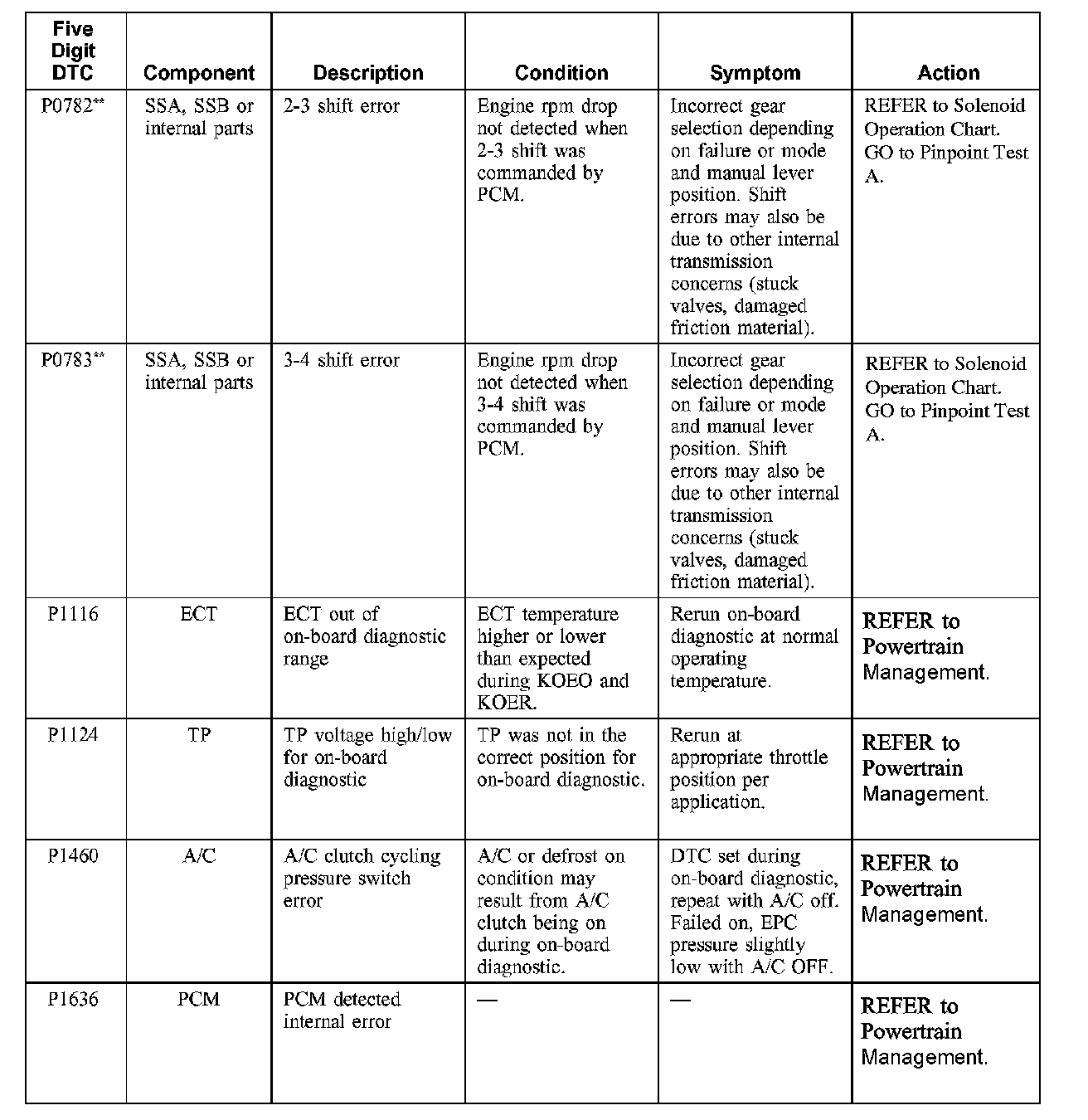

P0783-P1636:

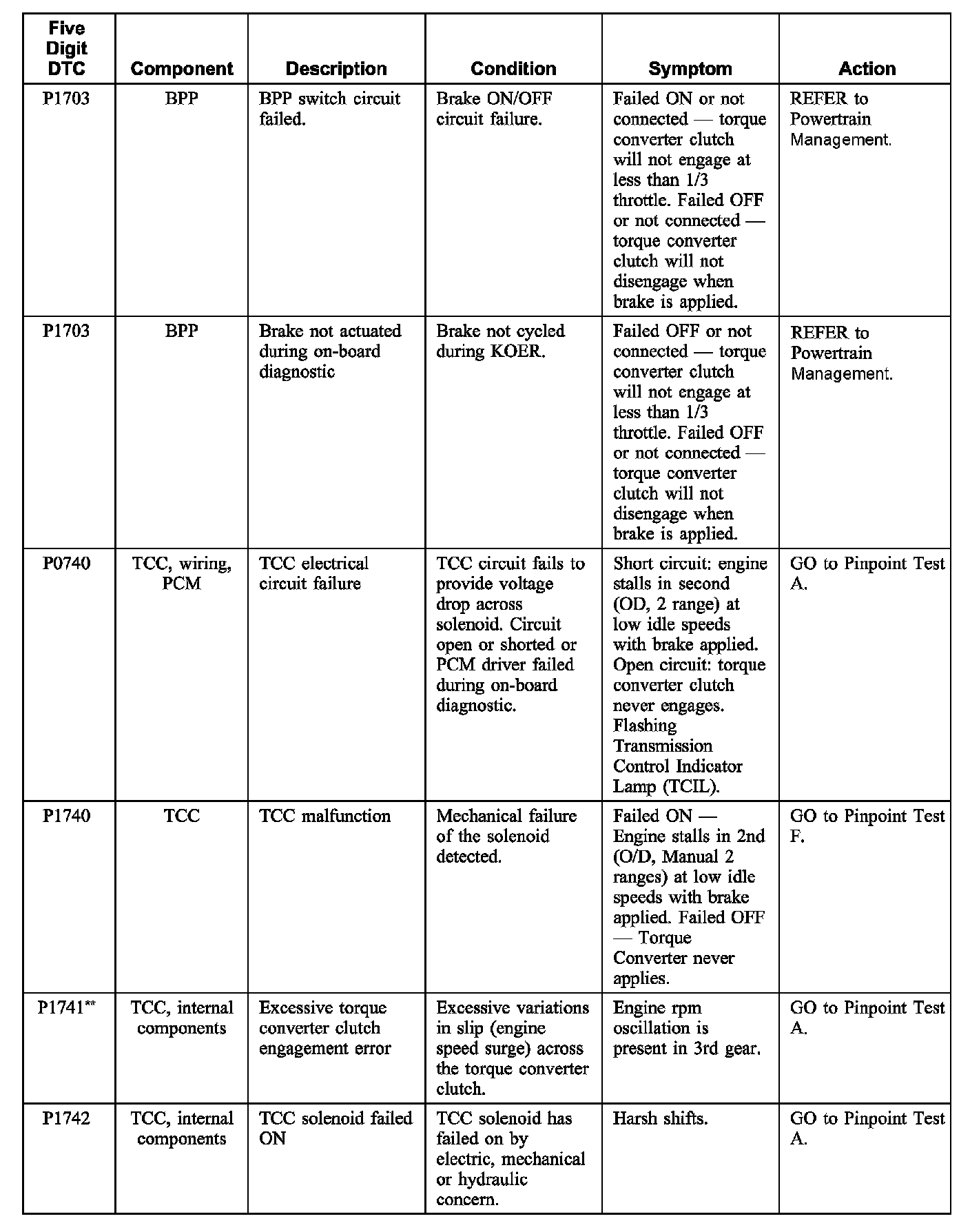

P0740-P1742:

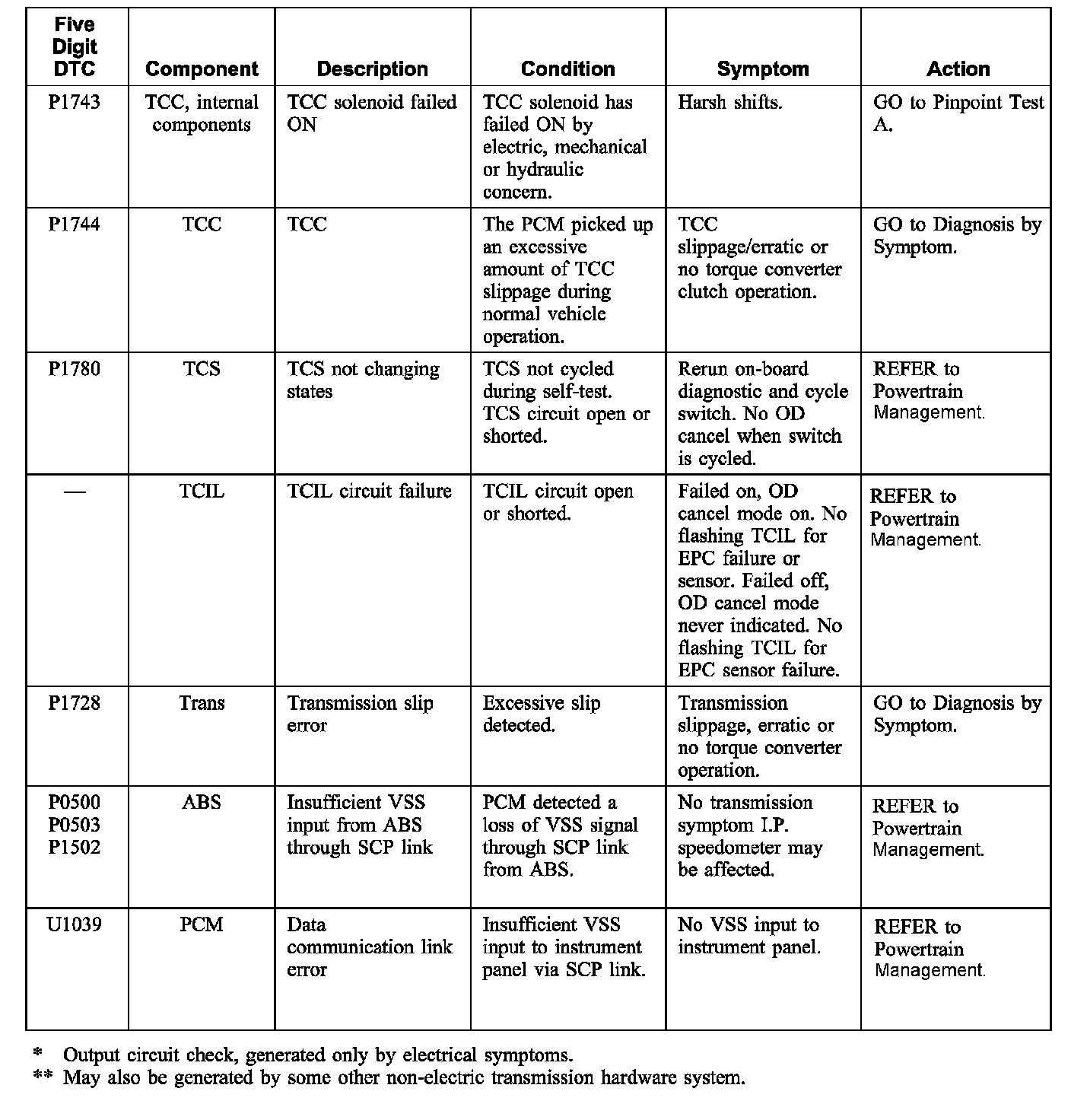

P0500-P1780 / U1039:
