Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> Bushings, Bearing and Thrust Washer Locator

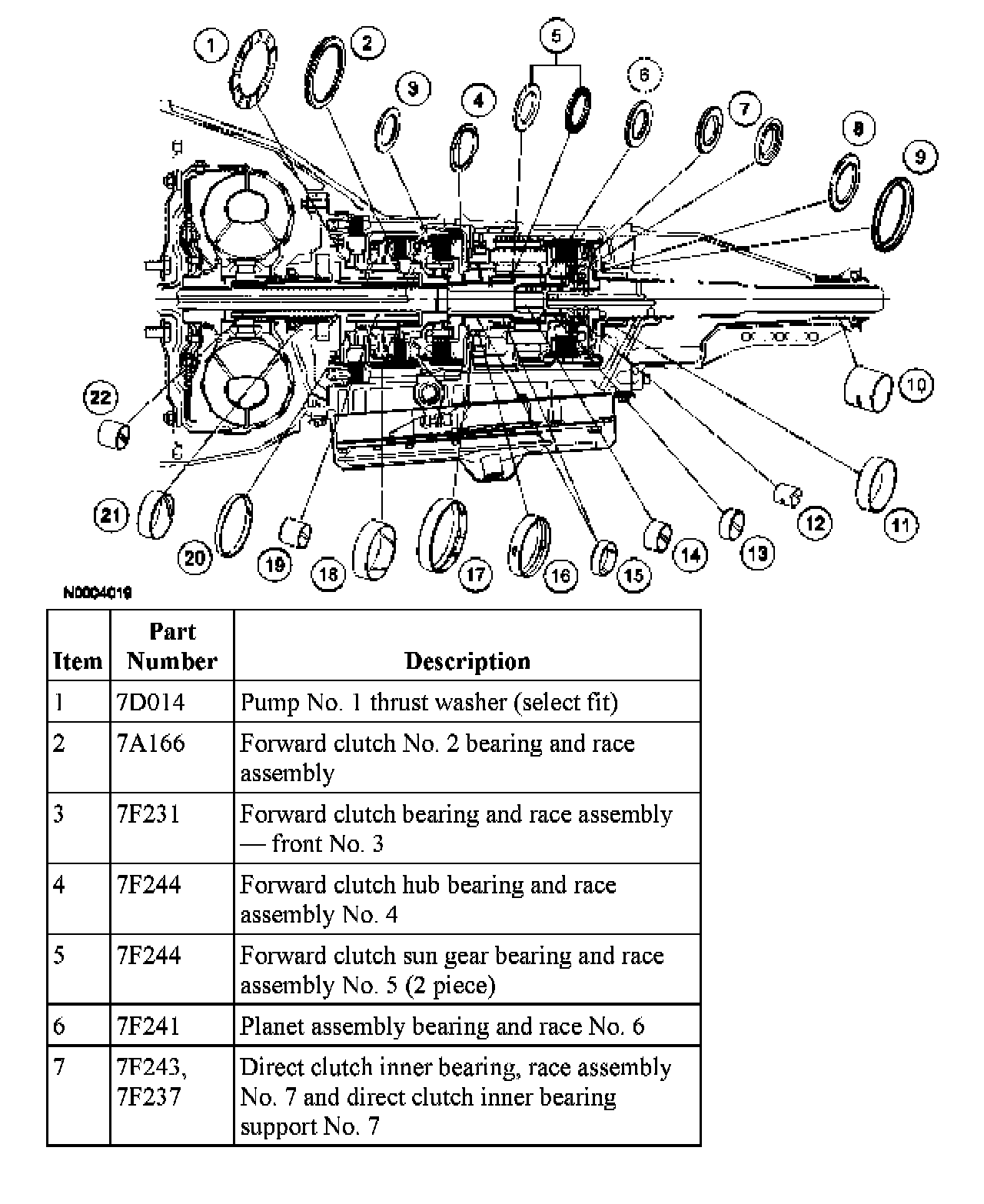

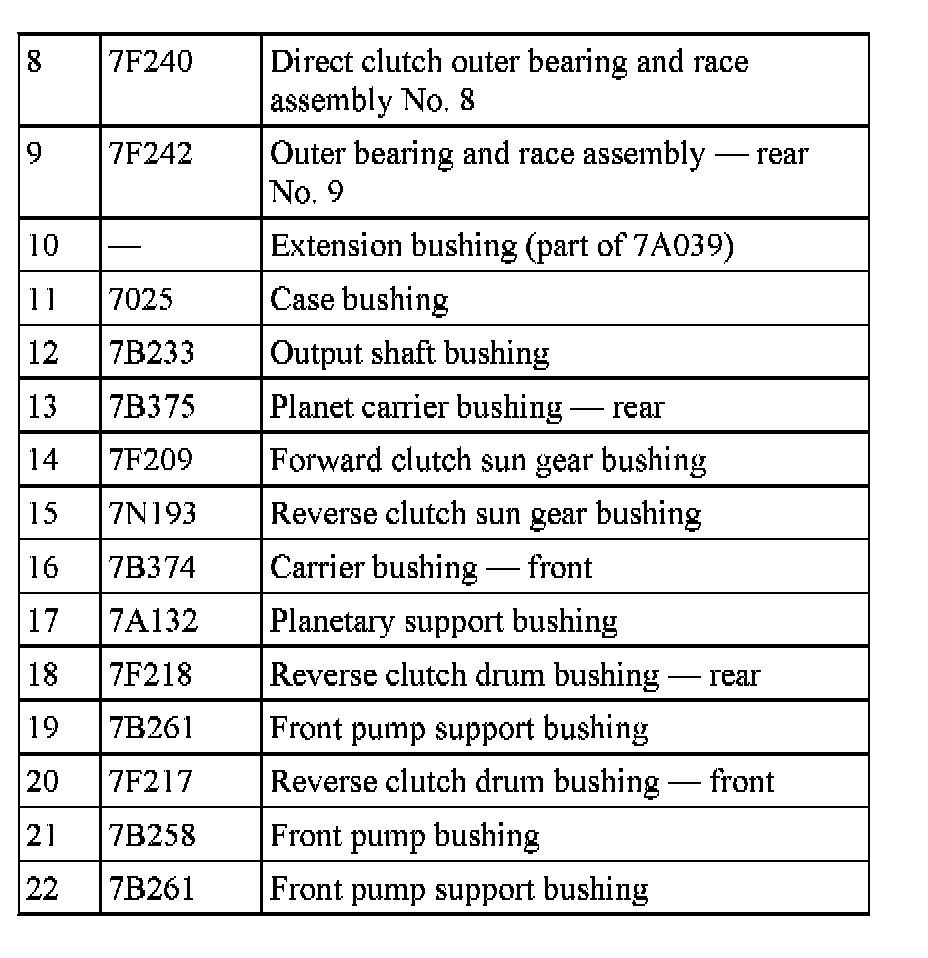

Bushings, Bearing and Thrust Washer Locator



Bushings, Bearing and Thrust Washer Locator
