Test I
Test I
PINPOINT TEST I: DTC'S C1790/C1795-LR/RR AIR
SUSPENSION
AIR SPRING
SOLENOID OUTPUT CIRCUIT FAILURE

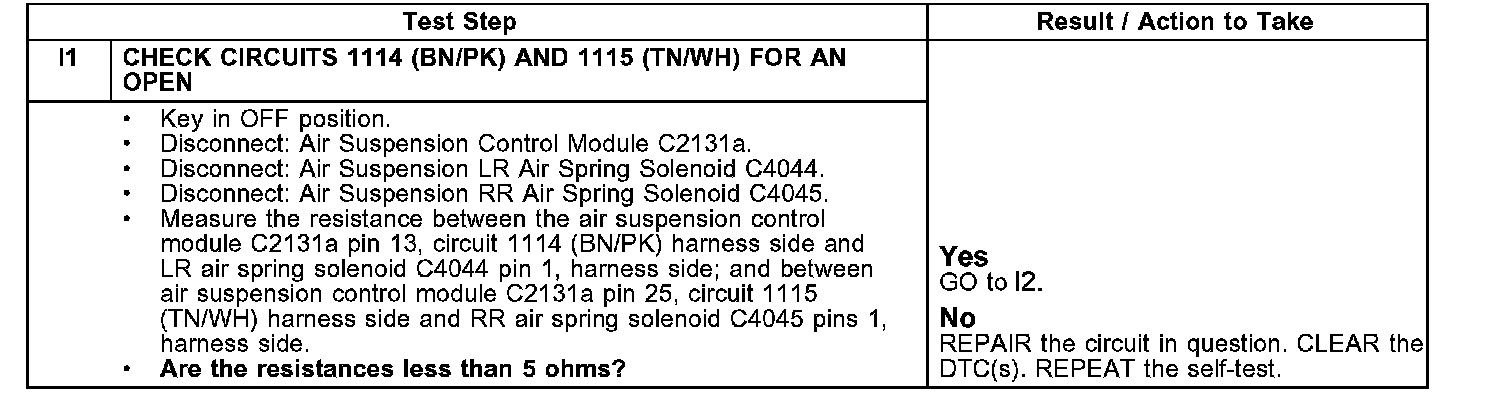

Test I1:

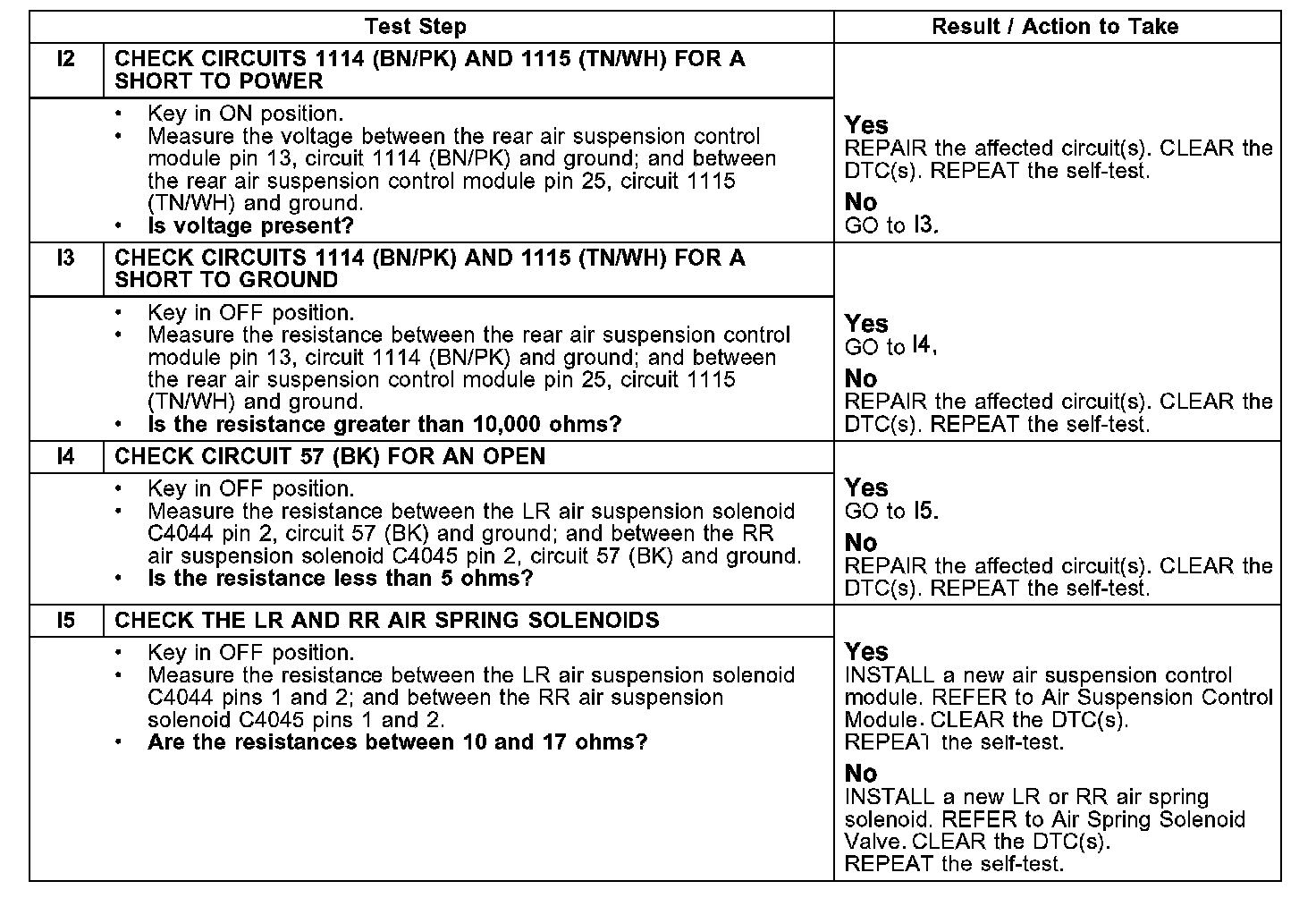

Test I2-I5:
