Diagnostic Trouble Code Tests and Associated Procedures

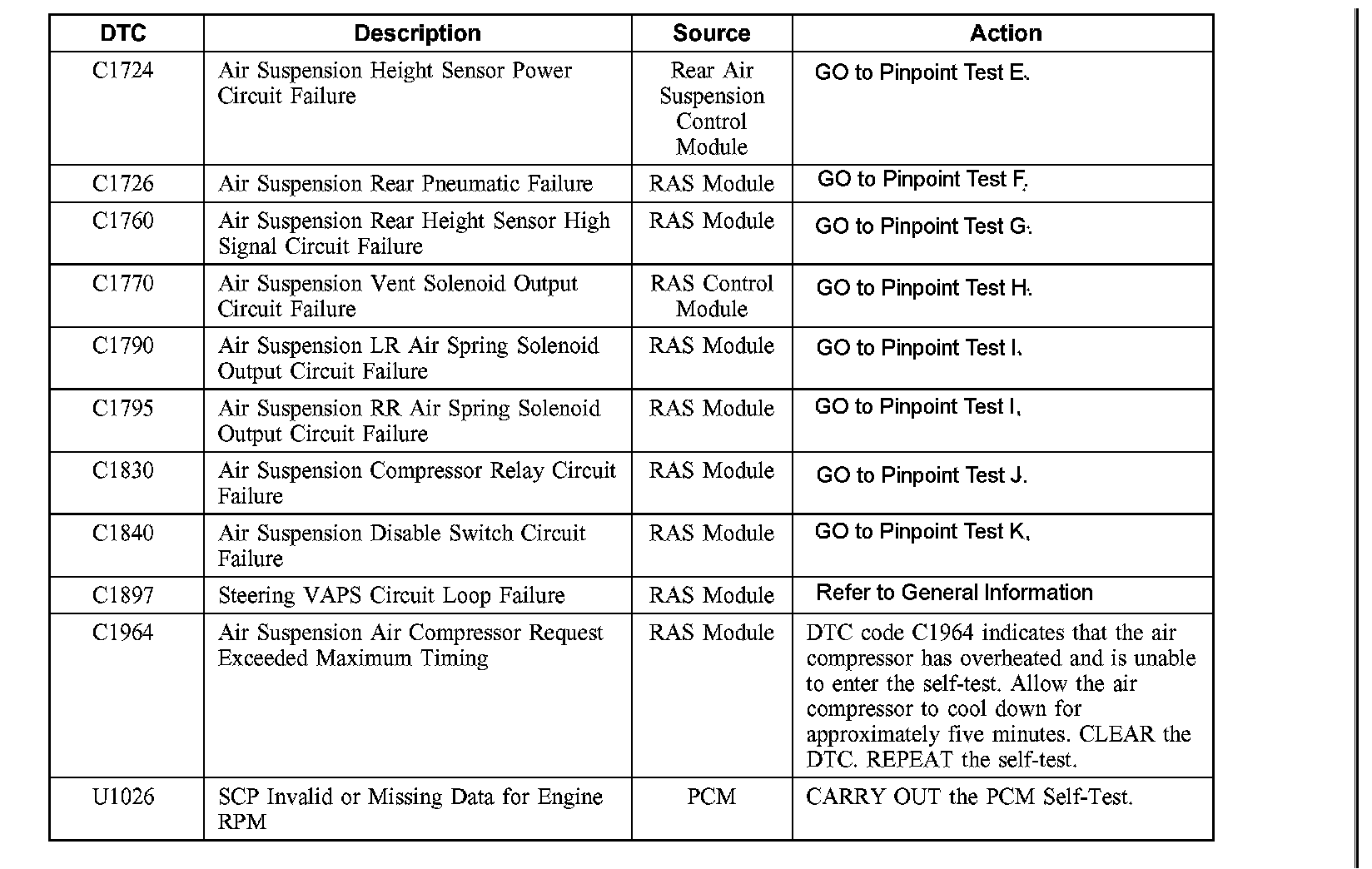

Rear Air Suspension Control Module Diagnostic Trouble Code (DTC) Index

NOTE: If the air suspension control module C2131b is disconnected before the air suspension control module C2131a, DTC'S C1830, C1770, C1790 and C1795 will be retrieved and must be cleared before an accurate list of continuous DTC'S can be retrieved.
